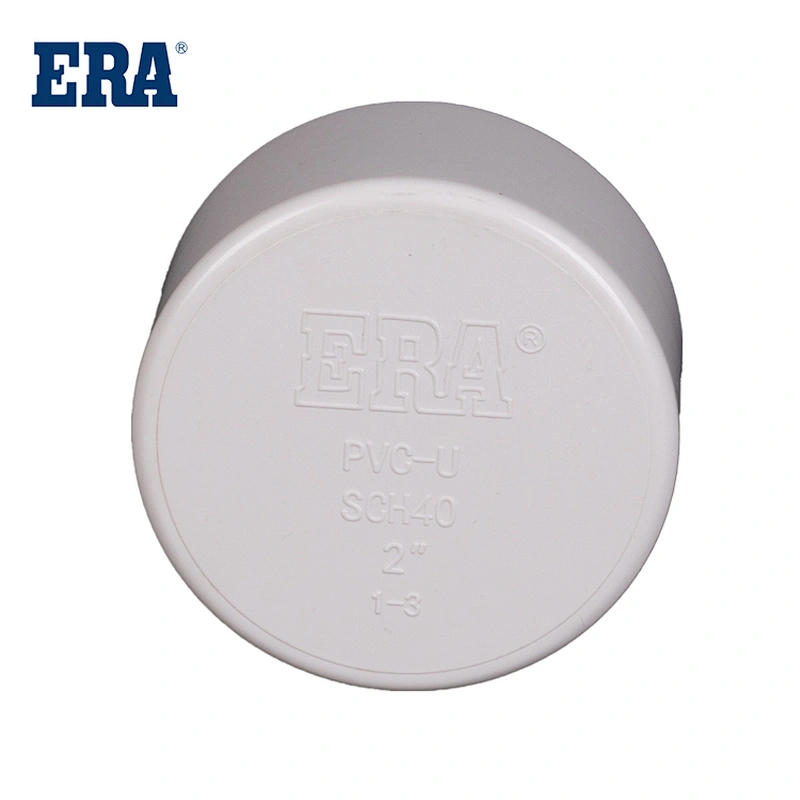

ERA Piping Systems, PVC Pipe Fitting ,Coupling, USII4016 , Schedule 40 (ASTM D2466) , NSF-pw & UPC,plastic pvc pipe fitting,
System：
PVC Schedule 40 pipe and fittings exhibit consistent quality with uniform properties
Schedule 40 PVC is white in color and the pipes have the largest inner diameter of the three schedules.
SCH40 pressure fitting is easy to install and has better sound deadening qualities than PVC DWV fittings.
Scope：
The products covered by this specification are intended for use with the distribution of pressurized liquids only, which are chemically compatible with the piping materials
PVC is highly resistant to acids, alkalis, alcohols, and many other corrosive materials.
This specification covers PVC Schedule 40 pipe and solvent Cement fittings for pressure applications.This system is Intended for pressure applications where the operating temperature will not exceed 140°F.
Never test with or transport/store compressed air or gas in PVC pipe or fittings. Doing so can result in xplosive failures and cause severe injury or death.

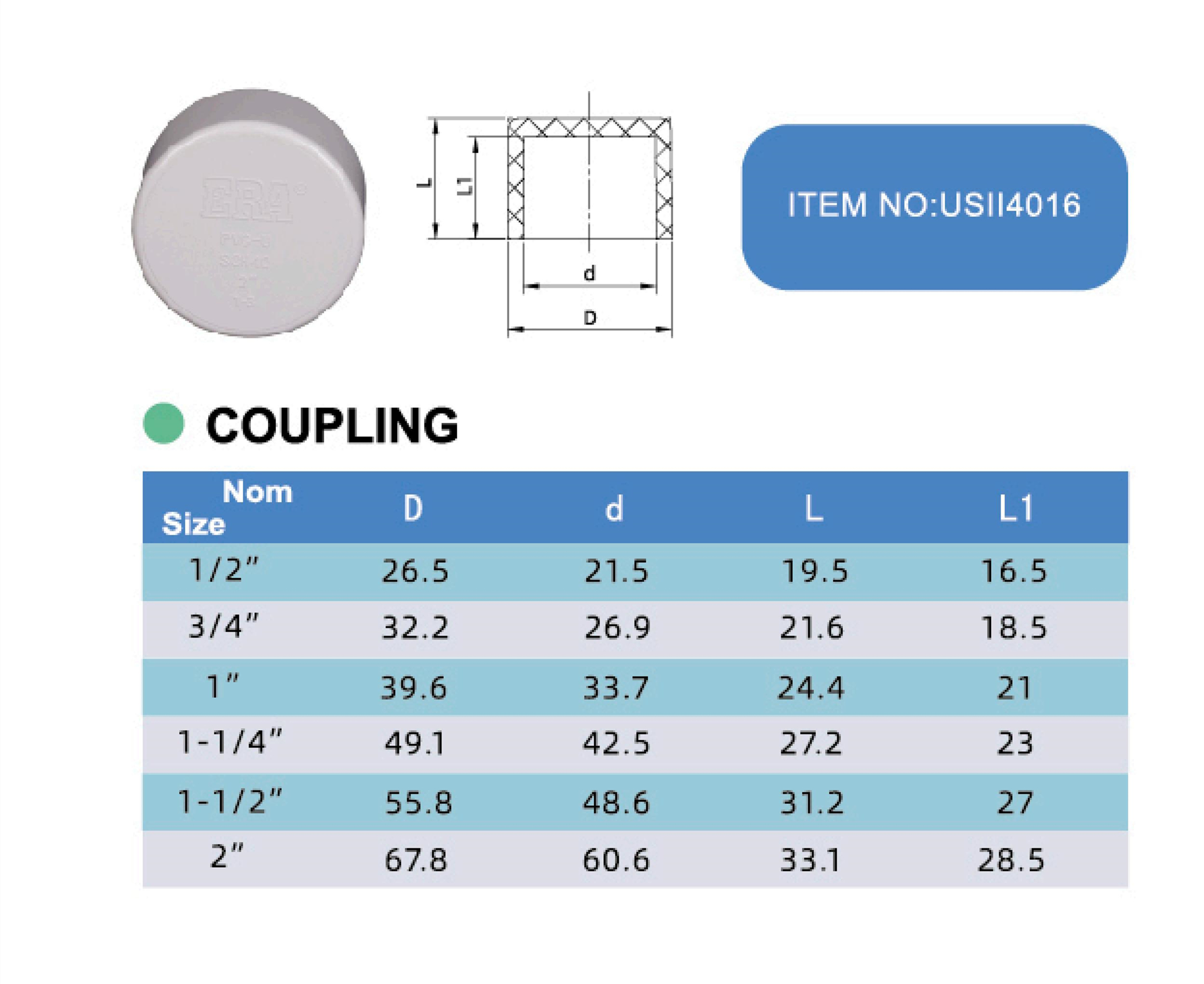

| Model Number | USII4016 | Material | PVC |
| Description | END CAP | Standard | SCH40 |
| Temperature | Max 60℃ /140℉ | Working Pressure | PN10 ,10Bar, 1.0Mpa |
| Size | 1/2''-2'' | Certificate | NSF/UPC |
| Connection | Socket or Thread | Color | WHITE BALCK GREY |
Specification：
PVC Schedule 40 pipe shall be Iron Pipe Size (IPS) conforming to ASTM D 1785. Injection molded PVC Schedule 40 fittings shall conform to ASTM D 2466. Pipe and fittings shall be manufactured as a system and be the product of one manufacturer.
PVC(polyvinyl chloride) vinyl compounds.
This specification covers poly(vinyl chloride) (PVC) Schedule 40 pipe fittings made from four PVC plastic compounds and intended for use with Iron Pipe Size outside-diameter plastic pipe.
Fittings fabricated by welding are not included in this specification. Included are requirements for materials, workmanship, dimensions, and burst pressure.

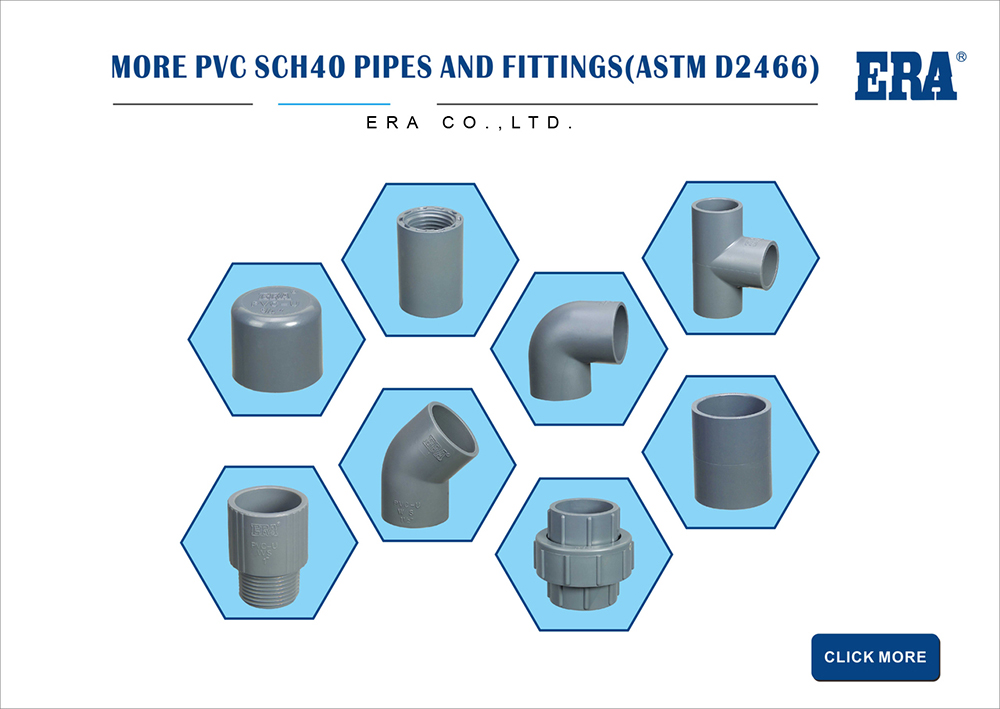

Main Products：
Main features of PVC pipes：
1. Very light in weight, easy to load and unload, low in density and easy to construct.
2. It has good corrosion resistance, acid resistance, alkali resistance and corrosion resistance, and is very suitable for the chemical industry.
3. The fluid resistance is very small. The smoothness and roughness coefficient of the inner wall of the PVC pipe is only 0.009, and the fluid resistance is small, which greatly improves the hydraulic conditions of the pipe network and reduces the system operating cost.
4. High mechanical strength, good pressure resistance, impact resistance and tensile strength.
5. The construction is simple, the pipeline connection construction is quick and easy, and the construction cost is low.
6. Cheap cost, low price, convenient transportation and construction, long life, and low overall cost.
7. No impact on water quality. Dissolution experiments have proven that it does not impact water quality and is suitable for large-scale promotion and application.
8. The fluid resistance is very small, the PVC pipe wall is very smooth, and the friction coefficient of the pipe wall is very small, which can speed up the transportation time of the medium, so the transportation capacity is much better than concrete of the same diameter.
9. PVC material will not be bitten by rodents, and its service life will be much longer than that of materials that are easy to bite, so the use of PVC pipes in many fields can be guaranteed.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
Home building materials products mainly made of PVC have become the second largest pillar of China's plastic industry, with an average annual growth rate of over 15%. In the next 10 years, the country is expected to add 30 billion square meters of new housing construction area. If these buildings achieve 50% energy-saving on the existing basis, the market demand for energy-saving building materials can reach trillions of yuan, which provides huge space for the development of indoor energy-saving decorative materials. For a long time, the building materials industry has been characterized by high energy consumption and high pollution. In order to meet the requirements of a low-carbon economy, home building materials enterprises have developed a batch of PVC high simulation building materials that replace wood with plastic after years of research and development, becoming a perfect combination of low-carbon and practical home products.
