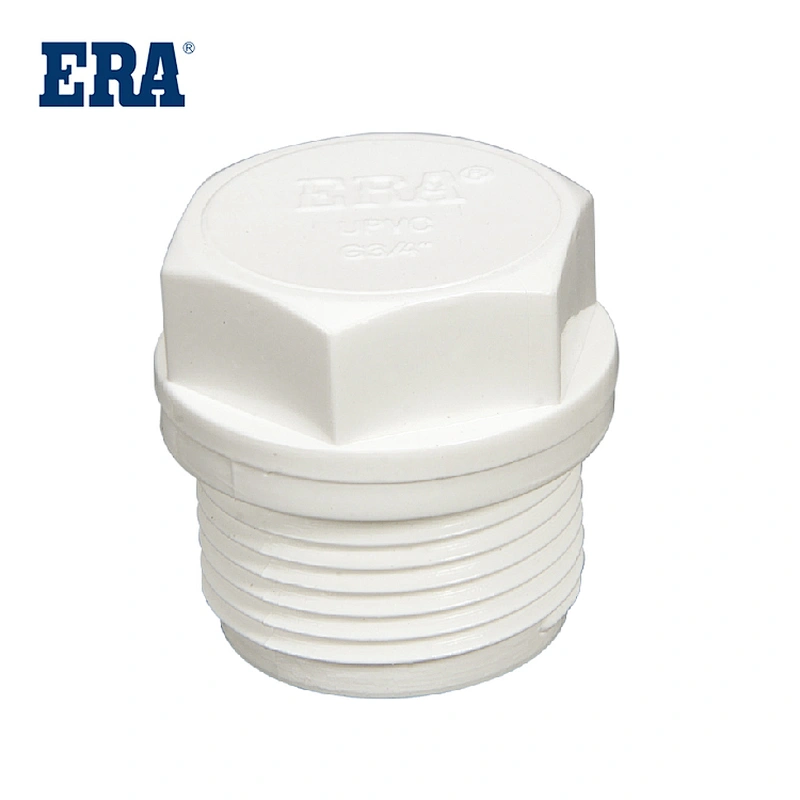

ERA Piping Systems, PVC Pipe Fitting ,Thread Plug, US4010, Schedule 40 (ASTM D2466) , plastic pipe end caps, pvc fittings end cap for pipes,NSF-pw & UPC
Specification of PVC Fitting Reducing Male Adaptor：
This specification covers poly(vinyl chloride) (PVC) Schedule 40 pipe fittings made from four PVC plastic compounds and intended for use with Iron Pipe Size (IPS) outside-diameter plastic pipe.
Fittings fabricated by welding are not included in this specification. Included are requirements for materials, workmanship, dimensions, and burst pressure.

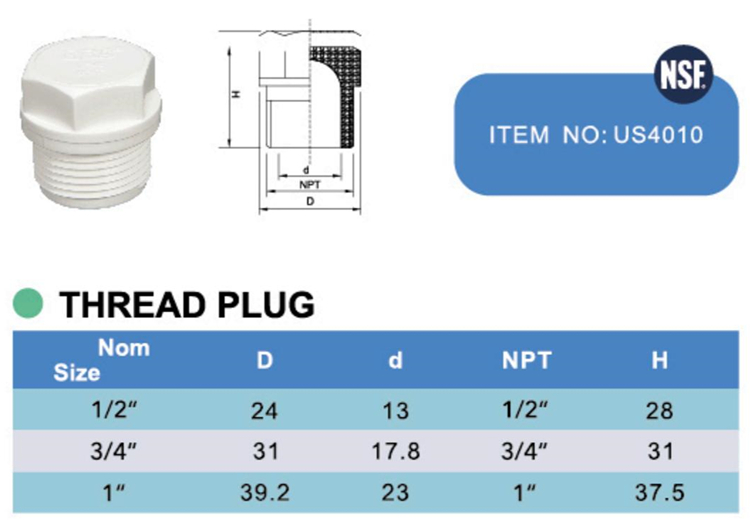

| Model Number | US4010 | Material | PVC |
| Description | THREAD PLUG THREAD END CAPS | Standard | SCH40 ASTM D2466 |
| Temperature | Max 60℃ /140℉ | Working Pressure | PN10 ,10Bar, 1.0Mpa |
| Size | 1/2''-1'' | Certificate | NSF UPC |
| Connection | SOCKET OR THREAD | Color | WHITE,BLACK,GREY |
System of PVC Fitting SCH40 Reducing Male Adaptor：
SCH40 pressure fitting is easy to install and has better sound deadening qualities than PVC DWV fittings.
Installation requires the use of primer and solvent cement. For pressure applications, sharply angled pressure fittings must be used.
Scope of PVC Fitting SCH40 Reducing Male Adaptor：
Never test with or transport/store compressed air or gas in PVC pipe or fittings. Doing so can result in explosive failures and cause severe injury or death.
Polyvinyl chloride (PVC) is one of the most broadly used thermoplastic materials, common to many industries.
Main Products：
Precautions for using PVC water supply pipes
1. Pay attention to the pipe connection method
There are many ways to connect PVC water supply pipes, including socket connections, hot melt connections, threaded connections, etc. Different connection methods have different operating requirements and technical parameters. Therefore, when connecting pipelines, you need to select the appropriate connection method according to the specific situation and operate according to the instructions.
2. Pay attention to pipe support and fixation
PVC water supply pipes need to be well supported and fixed during installation and use to prevent the pipes from being damaged by external forces. During the installation process, supports and fixing points need to be set appropriately according to the specifications and length of the pipeline to ensure that the pipeline will not be subject to excessive pressure or tension.
3. Pay attention to pipeline anti-corrosion measures
Although PVC water supply pipes have good corrosion resistance, anti-corrosion treatment is still required in some cases. For example, during the pipeline laying process, the outer wall of the pipeline may be corroded by chemicals in the soil, so anti-corrosion measures are required, such as coating with anti-rust paint or adding casing.
4. Pay attention to water quality requirements
Although PVC water supply pipes have good hygienic performance, you still need to pay attention to water quality requirements during use. For example, water quality needs to be tested regularly during use to ensure that the water quality meets national health standards; when transporting special media, appropriate filters need to be selected based on the media characteristics and pipeline material to prevent impurities and particles from entering the pipeline.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
PVC pipes (divided into PVC-U pipes, PVC-M pipes, and PVC-O pipes) are hard polyvinyl chloride pipes, which are formed by hot pressing with a combination of polyvinyl chloride resin, stabilizers, lubricants, and other additives. They are the earliest plastic pipes to be developed and applied.
PVC-U pipes have strong corrosion resistance, easy adhesion, low price, and hard texture. However, due to the leakage of PVC-U monomers and additives, they are only suitable for water supply systems with a delivery temperature not exceeding 45 ℃. Plastic pipes are used for drainage, wastewater, chemicals, heating and cooling liquids, food, ultrapure liquids, slurries, gases, compressed air, and vacuum systems.
