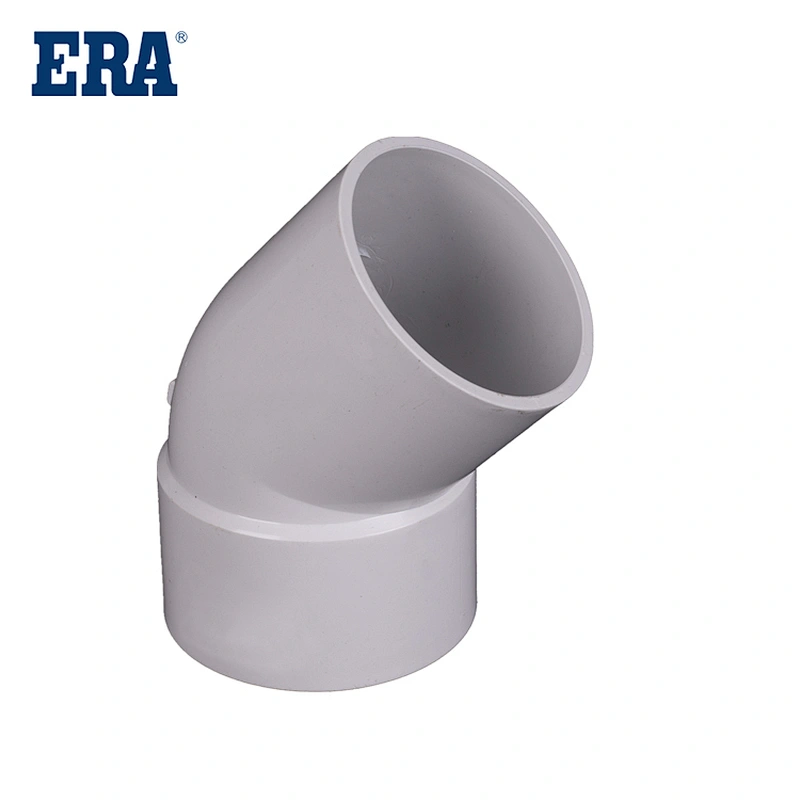

PVC 45° BEND M/F
PVC 45° BEND M/F
PVC 45° BEND M/F
PVC 45° BEND M/F
PVC 45° BEND M/F
PVC 45° BEND M/F
PVC 45° BEND M/F
PVC 45° BEND M/F
PVC 45° BEND M/F
PVC 45° BEND M/F
PVC 45° BEND M/F

PVC 45° BEND M/F

AUDE025-2
1. Light pipes and convenient construction
The specific gravity of PVC drainage pipe is about 1.4t/m3, which is only 1/5 of that of cast iron pipe. Plastic pipes of the same length are much lighter than cast iron pipes, requiring only manual handling during installation. In addition, PVC drainage pipes use socket type adhesive joints. At the same time, their standard length (6m, 4m) is longer than that of cast iron pipes, reducing the number of joints and installation procedures.
2. Good drainage performance
The diameter of PVC drainage pipe can be smaller than that of cast iron pipe, or the same pipe diameter can use a smaller slope within the allowable scope of the specification as far as possible, so as to increase the clear height of the space, which is more beneficial to users and enhances the use function of the building.
3: Economical and beautiful
PVC drainage pipes are usually white on the outer wall, and do not need to be painted with red lead, silver powder and other anti-corrosion treatments. There is no such problem as the corrosion and peeling of the outer wall of the cast iron pipe. When they are concealed into the pipe well, they do not need frequent maintenance and care. The advantages of open installation are more obvious than the cast iron pipe: easy to clean, less harmful to visual effects, which greatly improves people's life and working environment, and also facilitates the property management of buildings.
4. Good social benefits
PVC drainage pipe can replace other steel drainage pipes in a large range, and greatly reduce the energy consumption in the steelmaking process.
5. Superior physical and chemical properties
PVC drainage pipes have stable chemical properties and unique mechanical and physical properties that enable them to be used normally for 50 years. At the same time, their corrosion resistance, aging resistance and wear resistance also enable them to be used more stably for a long time than cast iron drainage pipes and cement pipes
PVC DWV FITTINGS AS/NZS1260
ERA Piping Systems, PVC DWV FITTINGS ,45° BEND M/F, AUDE025-2, AS/NZS1260 , Watermark
System:PVC pipe system
Scope:Drainage pipe system can be used for road drains, agricultural, railway, airport, construction and public green. PVC has the smoothest flow surface of any piping material.The pipe will not be susceptible to blockages and will maintain a high flow capacity over the life of the pipeline.
Specification:A plastic sewer system costs less to operate and maintain because it has greater flow capacity per given size and fewer joints. The economic life cycle of a PVC sewer system is projected at more than 50 years.
Referenced Standards:AS/NZS 1260
Certificate:Watermark
Specification:
Model NumberAUDE025-2MaterialPVC
Description            45° BEND M/F             Size        40、50MM
StandardAS/NZS1260ColorWhite
BrandERATemperature        Max 60℃  / 140°F
ConnectionSocket CertificateWatermark
Main Products:

PVC water supply pipe is made of sanitary grade polyvinyl chloride (PVC) resin as the main raw material, with appropriate amounts of stabilizers, lubricants, fillers, color enhancers, etc., extruded by a plastic extruder and injection molded by an injection molding machine. After cooling, Curing, shaping, inspection, packaging and other processes to complete the production of pipes and fittings.
Product performance features:
1. Light weight, easy to transport and load and unload: PVC pipes are very light, easy to transport and construct, and can save labor.
2. Excellent chemical resistance: PVC pipe has excellent acid resistance, alkali resistance, and corrosion resistance, and is very suitable for use in the chemical industry.
3. Small fluid resistance: The wall surface of PVC pipe is smooth and has small resistance to fluid. Its roughness coefficient is only 0.009, which is lower than other pipes. Under the same flow rate, the pipe diameter can be reduced.
4. High mechanical strength: PVC pipes have very good water pressure resistance, external pressure resistance, impact resistance, etc., and are suitable for piping projects under various conditions.
5. Good electrical insulation; PVC pipes have excellent electrical insulation and are suitable for wires, cable conduits, and wire piping in buildings.
6. Does not affect water quality: PVC pipes have been proven by dissolution tests to not affect water quality and are currently the best pipe materials for tap water piping.
7. Simple construction: PVC pipe joining construction is quick and easy, so the construction cost is low.

PVC is the abbreviation for Polyvinyl chloride, and the main component of PVC-U drainage pipes is polyvinyl chloride. In production, an appropriate amount of stabilizers, lubricants, fillers, color enhancers, etc. are added and extruded by a plastic extruder and injection molded by an injection molding machine. The production of pipes and fittings is completed through processes such as cooling, curing, shaping, inspection, and packaging. With many advantages such as light weight, corrosion resistance, beautiful appearance, no bad odor, easy processing, and convenient construction, it is the best choice for home drainage!
