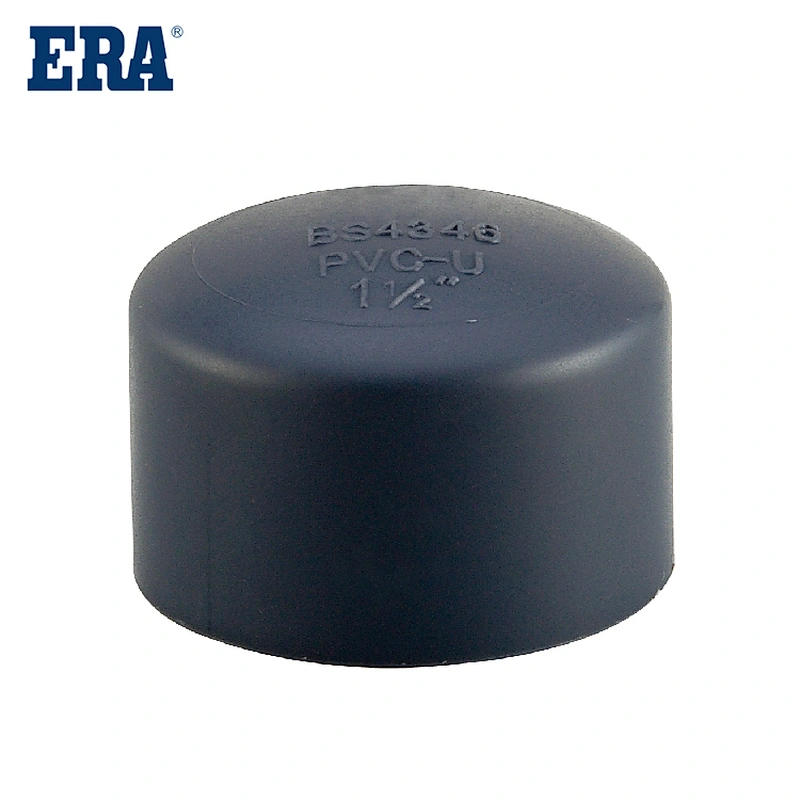

ERA Piping Systems, PVC Pipe Fitting ,End Plug, BS011, BS4346 (BS 1452-3) ,Socket , Kitemark
System：
BS EN ISO 1452-3:2010 Plastics piping systems for water supply and for buried and above-ground drainage and sewerage under pressure - unplasticized poly(vinyl chloride) (PVC-u). Fittings (ISO 1452-3:2009, corrected version 2010-03-01)
Scope：
Water supply (buildings), Unplasticized polyvinyl chloride, Polyvinyl chloride, Pressure pipes, Pipe fittings, Pipe couplings, Adhesive-bonded joints, Spigot-and-socket joints, Flanged fittings, Flanges, Water supply, Water mains, Underground, Internal, External, Buildings, Pressure, Temperature, Cold-water supply systems, Potable water, Elastomers, Sealing rings, Injection moulding, Dimensions, Elbows (pipes), Pipe tees, Mechanical properties of materials, Physical properties of materials, Performance testing, Pressure testing, Thermal testing, Hydraulic tests

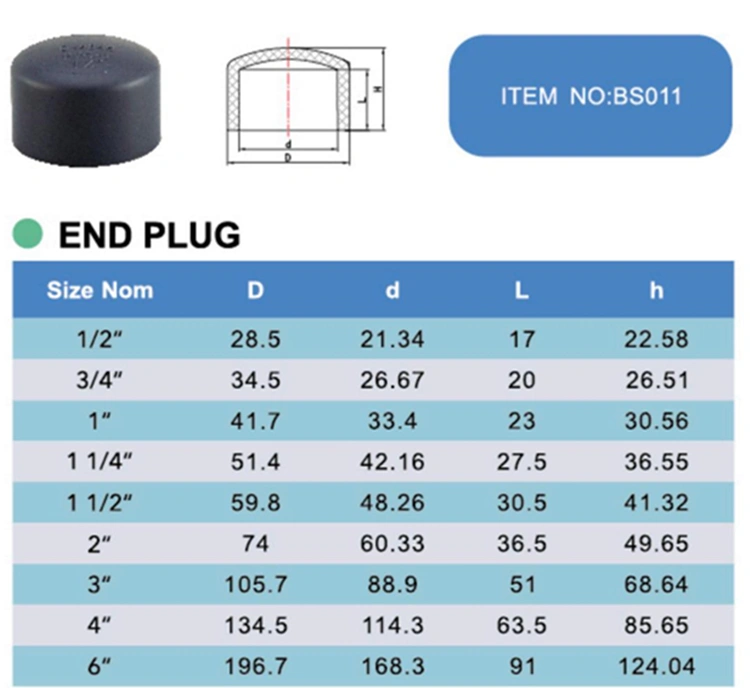

| Model Number | BS011 | Material | PVC |
| Description | END PLUG | Standard | BS1452-3 |
| Temperature | Max 60°C /140°F | Working Pressure | PN16，16Bar， 1.6Mpa |
| Size | 1/2''-6'' | Certificate | KITEMARK |
| Connection | socket or thread | Color | BLUE grey |
Specification：
Proven physiological harmlessness
Universal use
Very good chemical and corrosion resistance
Referenced Standards: BS4346 Standard
Applications of PVC Fitting BS4346 Female Elbow

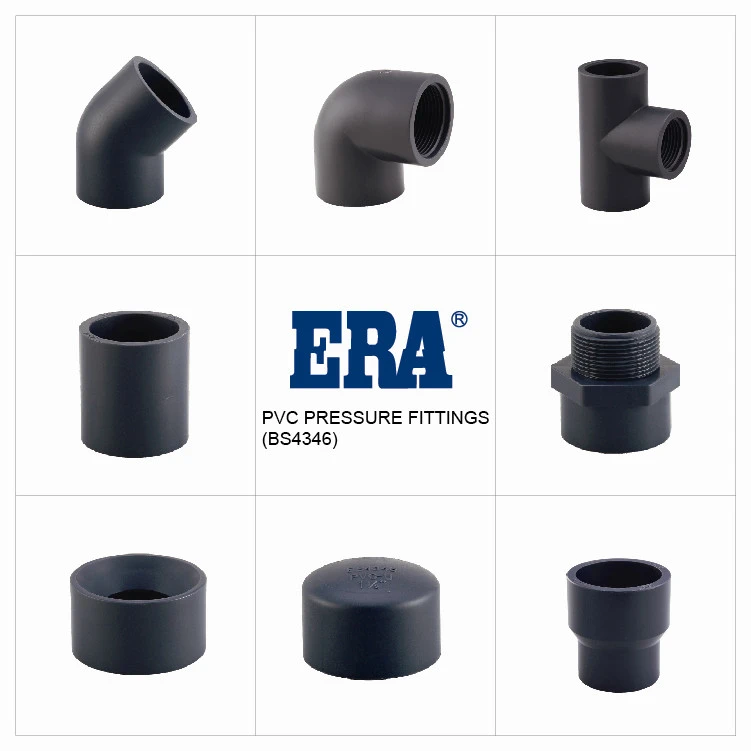

Main Products：
PVC pipe features
(1). The surface hardness and tensile strength of the pipe are excellent, and the pipeline safety factor is high.
(2). It has good aging resistance and its normal service life can reach more than 50 years.
(3). The pipeline has excellent corrosion resistance to inorganic acids, alkalis, and salts, and is suitable for industrial sewage discharge and transportation.
(4). The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to block, and the maintenance workload is small.
(5). The material has a high oxygen index and is self-extinguishing.
(6). The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation due to temperature is small. The thermal conductivity and elastic modulus are small, and compared with cast iron drainage pipes, they have excellent freezing resistance.
(7). Pipes and pipe fittings can be connected by bonding. The construction method is simple, the operation is convenient, and the installation efficiency is high.
(8). Good water tightness: The installation of PVC-U pipes, regardless of whether they are connected by bonding or rubber rings, has good water tightness.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
