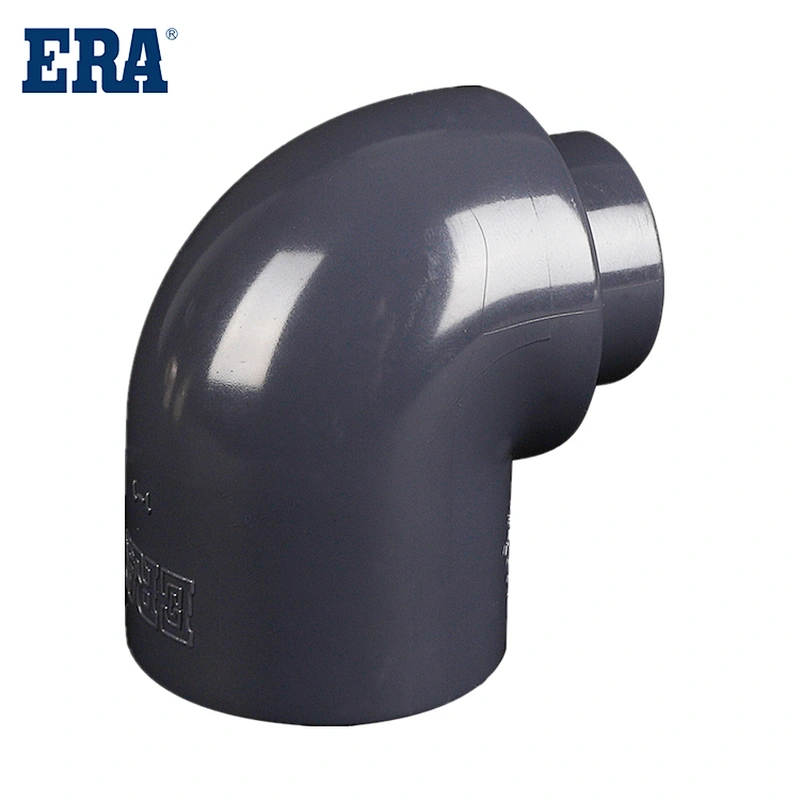

Reducing Female 90° Elbow

Model NO.: BS013

ERA Plastic UPVC Pressure Pipe Fitting BS4346 Reducing Female 90 Degree Elbow/Bend with KITEMARK Certificate
Advantages of PVC pipes
1. It has good tensile and compressive strength: but its flexibility is not as good as other plastic pipes.
2. Small fluid resistance: The pipe wall of PVC-U pipe is very smooth and has very little resistance to fluid. Its roughness coefficient is only 0.009. Its water transport capacity can be 20% higher than that of cast iron pipes of the same diameter and 40% higher than that of concrete pipes. %.
3. Excellent corrosion resistance and chemical resistance: PVC-U pipes have excellent acid resistance, alkali resistance, corrosion resistance, and are not affected by moisture and soil pH. No anti-corrosion treatment is required when laying pipes.
4. Good water-tightness: The installation of PVC-U pipes, regardless of whether they are connected by bonding or rubber rings, has good water-tightness.
5. Anti-gnawing: PVC-U pipe is not a nutrient source and will not be eroded by rodents.

Product Description

ERA Piping Systems, PVC Pipe Fitting ,Reducing Female 90° Elbow , BS013, BS4346 (BS 1452-3) ,Socket , Kitemark

System：

BS EN ISO 1452-3:2010 Plastics piping systems for water supply and for buried and above-ground drainage and sewerage under pressure - unplasticized poly(vinyl chloride) (PVC-u). Fittings (ISO 1452-3:2009, corrected version 2010-03-01)

Plastics, Polymers, Pipework systems, Plastic pipelines, Water, Pipes, Water supply engineering,

Specification：
Pipe and fittings shall be manufactured from virgid
PVC(polyvinyl chloride) vinyl compounds.
Proven physiological harmlessness
Universal use
Very good chemical and corrosion resistance

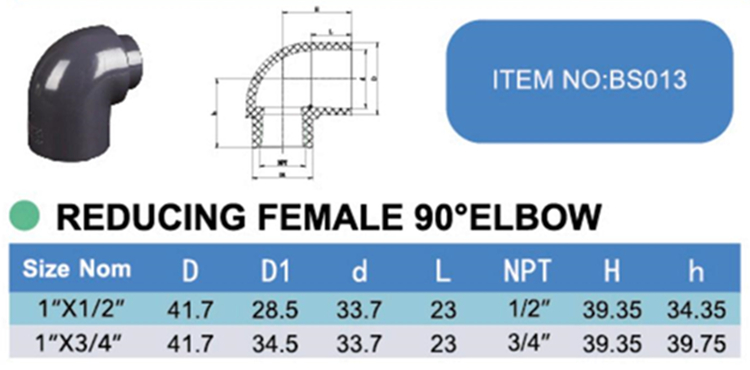

Model Number	BS013	Material	PVC
Description	REDUCING FEMALE 90° ELBOW	Standard	BS1452-3
Temperature	Max 60°C / 140°F	Working Pressure	PN16,16Bar, 1.6Mpa
Size	1''x1/2''-2''x3/4''	Certificate	KITEMARK
Connection	SOCKET OR THREAD	Color	BLUE GREY

PVC-U water supply pipe
PVC water supply pipe is made of PVC as the main raw material. By adding appropriate auxiliaries, it is extruded and then injection molded. PVC water supply pipes are lightweight and easy to handle, have excellent corrosion resistance, extremely low pipe wall roughness and low flow resistance, and dissolution tests have proven that they have no impact on water quality, so they are suitable for use in many fields.
The main application areas of PVC water supply pipes are: indoor water supply and gray water systems in civil buildings and public buildings, underground water supply systems in residential areas and factories; water supply pipeline systems in large cities; sewage treatment management systems in water treatment stations; garden landscape irrigation and well sinking, etc. Pipes for engineering projects and other industries.

Main Products：

1. The surface hardness and tensile strength of the pipe are excellent, and the pipeline safety factor is high.
2. It has good aging resistance and its normal service life can reach more than 50 years.
3. The pipeline has excellent corrosion resistance to inorganic acids, alkalis, and salts, and is suitable for industrial sewage discharge and transportation.
4. The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to be blocked, and the maintenance workload is small.
5. The material has a high oxygen index and is self-extinguishing.
6. The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and compared with cast iron drainage pipes, they have excellent freezing resistance.
7. Bonding can be used to connect pipes and pipe fittings. The construction method is simple, the operation is convenient, and the installation efficiency is high.
8. Good water tightness: PVC-U pipes have good water tightness regardless of whether they are connected by bonding or rubber rings.
