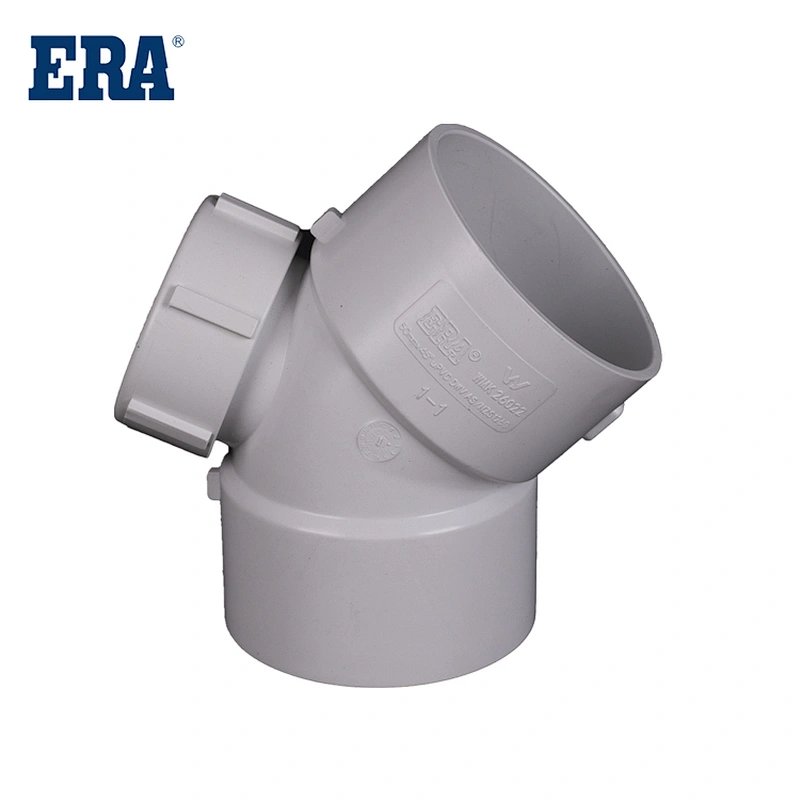

PVC 45° BEND WITH OPENNING F/F
PVC 45° BEND WITH OPENNING F/F
PVC 45° BEND WITH OPENNING F/F
PVC 45° BEND WITH OPENNING F/F
PVC 45° BEND WITH OPENNING F/F
PVC 45° BEND WITH OPENNING F/F
PVC 45° BEND WITH OPENNING F/F
PVC 45° BEND WITH OPENNING F/F
PVC 45° BEND WITH OPENNING F/F
PVC 45° BEND WITH OPENNING F/F
PVC 45° BEND WITH OPENNING F/F

PVC 45° BEND WITH OPENNING F/F

AUDE022
1. The surface tensile strength and hardness of the pipe are excellent, and the safety factor of the pipe is relatively high.
2. The anti-aging performance is good, and the service life of normal PVC drainage pipes can reach more than 50 years.
3. The pipeline has excellent corrosion resistance to inorganic acid, alkali and salt, so it is suitable for the transportation and discharge of industrial sewage.
4. The internal friction coefficient of the pipeline is small, the water flow is smooth, the blockage is not easy to occur, and the maintenance workload is small.
5. The oxygen index in the material is high, and the pipeline is self extinguishing.
6. The expansion coefficient of the pipeline is small, normally 0.07mm/℃, and the deformation is small due to temperature. At the same time, its thermal conductivity and elastic modulus are also small, and its frost resistance is better than that of cast iron drain pipes.
7. The connection between pipes and pipe fittings can be made by bonding, which is simple in construction, convenient in operation and efficient in installation.
8. Whether the PVC-U pipe is installed by bonding or rubber ring connection, the pipe has good water tightness.
PVC DWV FITTINGS AS/NZS1260
ERA Piping Systems, PVC DWV FITTINGS ,45° BEND WITH OPENNING F/F, AUDE022, AS/NZS1260 , Watermark
System：PVC pipe system
Scope：Drainage pipe system can be used for road drains, agricultural, railway, airport, construction and public green. PVC has the smoothest flow surface of any piping material.The pipe will not be susceptible to blockages and will maintain a high flow capacity over the life of the pipeline.
Specification：A plastic sewer system costs less to operate and maintain because it has greater flow capacity per given size and fewer joints. The economic life cycle of a PVC sewer system is projected at more than 50 years.
Referenced Standards：AS/NZS 1260
Certificate：Watermark

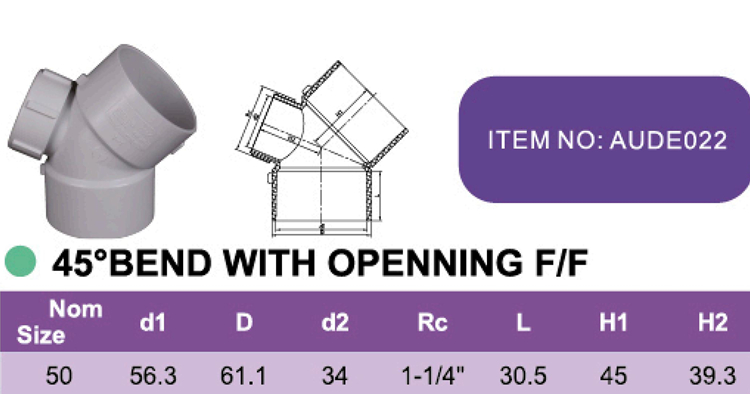

Specification：
Model NumberAUDE022MaterialPVC
Description45° BEND WITH OPENNING F/FSize                           50MM
StandardAS/NZS1260ColorWhite
BrandERATemperature        Max 60℃  / 140°F
ConnectionSocket CertificateWatermark
Main Products：
Product features of PVC pipes：
1. PVC drainage pipes have excellent surface hardness and tensile strength, and the pipeline safety factor is extremely high.
2. PVC drainage pipes have good aging resistance, and usually their normal service life can reach more than 50 years.
3. PVC drainage pipes have excellent corrosion resistance to inorganic acids, alkalis, salts and other substances, so they are more suitable for industrial sewage discharge and transportation.
4. The friction coefficient of PVC drainage pipe is small, the water flow is smooth, it is not easy to block, the maintenance workload is small, the oxygen index is high, and it is self-extinguishing.
5. The linear expansion coefficient of PVC drainage pipes is small, 0.07mm/℃, and the deformation due to temperature is small. The thermal conductivity and elastic modulus are small, and the freezing resistance is excellent.
​6. The bonding method can be used to connect PVC drainage pipes, which is simple to construct, easy to operate, and has high installation efficiency.
After talking about the product features of PVC drainage pipes, let’s talk about what are the commonly used specifications of PVC drainage pipes?
Commonly used PVC drainage pipe specifications are mainly based on nominal outer diameter, which are 32mm, 40mm, 50mm, 75mm, 90mm, 110mm, 125mm, 160mm, 200mm, 250mm, 315mm, 400mm, 500mm. Most PVC drainage pipe specifications are available There is a certain gap, this is normal. The length of PVC-U pipes is generally 4m or 6m, and other lengths are determined by negotiation between the supply and demand parties.

Advantages of PVC drainage pipes：
1. Economical and aesthetically pleasing
PVC drainage pipes usually have a white outer wall and do not need to be painted with red lead or silver powder for anti-corrosion treatment. There are no problems such as rust and detachment of the outer wall of cast iron pipes. When concealed in the pipe well, frequent maintenance and care are not necessary. Open installation has more significant advantages than cast iron pipes: easy to clean, less visual interference, greatly improving people's living and working environment, and also facilitating property management of buildings.
2. Good social benefits
PVC drainage pipes can replace other steel drainage pipes on a large scale and greatly reduce energy consumption during the steelmaking process.
3. Superior physical and chemical properties
PVC drainage pipes have stable chemical properties and unique mechanical and physical properties that enable them to be used normally for 50 years. At the same time, their corrosion resistance, aging resistance and wear resistance also enable them to be used more stably for a long time than cast iron drainage pipes and cement pipes.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
