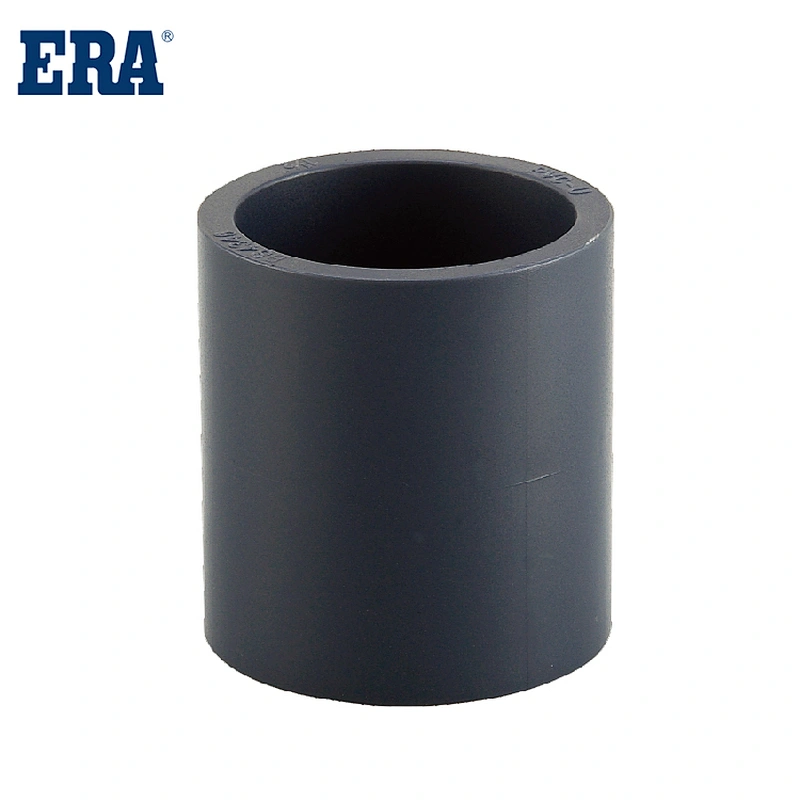

ERA Piping Systems, PVC Pipe Fitting ,Coupling, BS007, BS4346 (BS 1452-3) ,Socket , Kitemark
System：BS EN ISO 1452-3:2010 Plastics piping systems for water supply and for buried and above-ground drainage and sewerage under pressure - unplasticized poly(vinyl chloride) (PVC-u). Fittings (ISO 1452-3:2009, corrected version 2010-03-01)
Scope：Water supply (buildings), Unplasticized polyvinyl chloride, Polyvinyl chloride, Pressure pipes, Pipe fittings, Pipe couplings, Adhesive-bonded joints, Spigot-and-socket joints, Flanged fittings, Flanges, Water supply, Water mains, Underground, Internal, External, Buildings, Pressure, Temperature, Cold-water supply systems, Potable water, Elastomers, Sealing rings, Injection moulding, Dimensions, Elbows (pipes), Pipe tees, Mechanical properties of materials, Physical properties of materials, Performance testing, Pressure testing, Thermal testing, Hydraulic tests

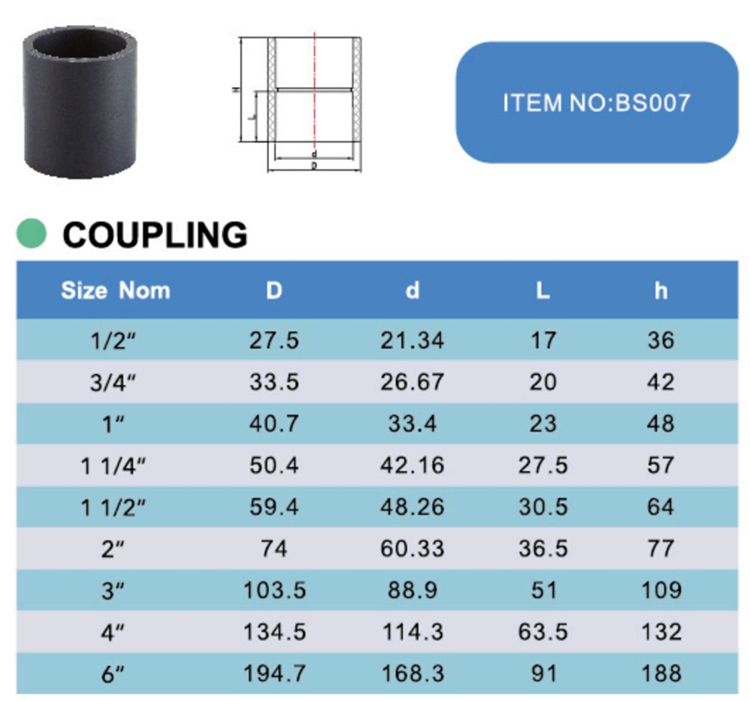

| Model Number | BS007 | Material | PVC |
| Description | COUPLING | Standard | BS1452-3 |
| Temperature | Max 60°C / 140°F | Working Pressure | PN16,16Bar, 1.6Mpa |
| Size | 1/2''-6'' | Certificate | KITEMARK |
| Connection | SOCKET OR THREAD | Color | BLUE GREY |
PVC pipe product performance characteristics：
1. Light weight, easy to transport and load and unload: PVC pipes are very light, easy to transport and construct, and can save labor.
2. Excellent chemical resistance: PVC pipe has excellent acid resistance, alkali resistance, and corrosion resistance, and is very suitable for use in the chemical industry.
3. Small fluid resistance: The wall surface of PVC pipe is smooth and has small resistance to fluid. Its roughness coefficient is only 0.009, which is lower than other pipes. Under the same flow rate, the pipe diameter can be reduced.
4. High mechanical strength: PVC pipes have very good water pressure resistance, external pressure resistance, impact resistance, etc., and are suitable for piping projects under various conditions.
5. Good electrical insulation; PVC pipes have excellent electrical insulation and are suitable for wires, cable conduits, and wire piping in buildings.
6. Does not affect water quality: PVC pipes have been proven by dissolution tests to not affect water quality and are currently the best pipe materials for tap water piping.
7. Simple construction; the joint construction of PVC pipes is quick and easy.
Main Products：
Scope of application of PVC pipes
1. It is often used as indoor water supply and water system in civil buildings and industrial buildings.
2. PVC water supply pipes can also be used in buried water supply systems in residential areas and factory areas.
3. Also used in urban water supply pipeline systems.
4. There are also shadows of PVC water supply pipes in the water treatment pipeline system of water treatment plants.
5. It also appears in the marine aquaculture industry.
6. PVC water supply pipes are also used for yard irrigation, construction projects and other industrial pipes.
What precautions should be taken when installing PVC pipes?
1. When installing, measure the size and break the pipe to ensure the fracture level.
2. Not all PVC pipes can be inserted before connection, so try to insert them into the socket. When gluing, if there is oil, dust or even moisture, it should be removed.
3. The inspection port should be set at the bottom and top of the drainage pipe, and the center of the inspection port should be one meter away from the ground.
4. During the installation process, the pipes should be lowered gently to avoid damage during installation and to ensure that the pipes are complete and clean. After installation, a pressure test should be performed to confirm that there is no leakage in each interface. Otherwise, it should be replaced and reinstalled immediately.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
