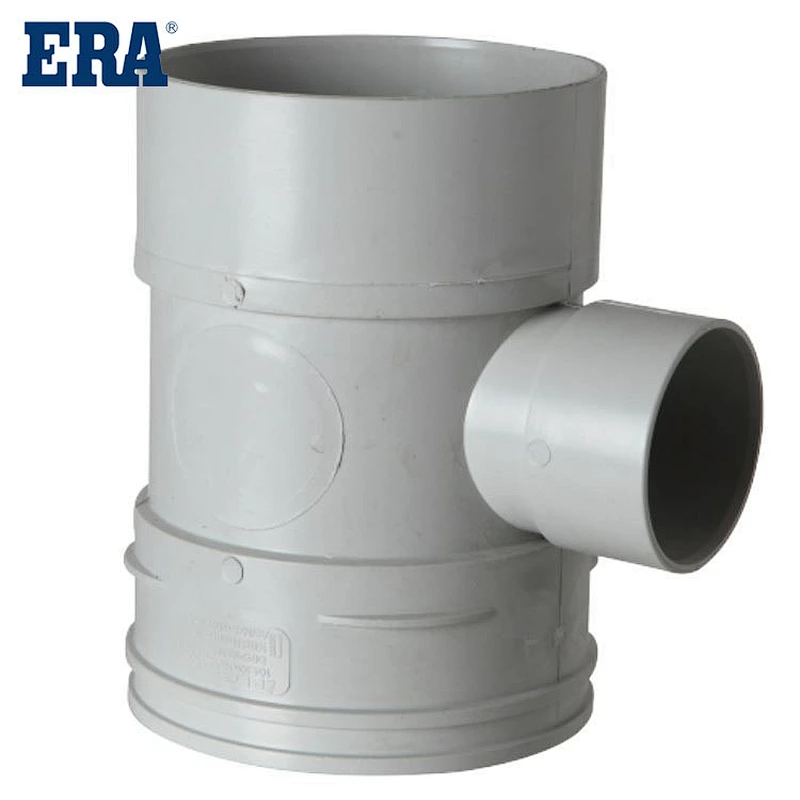

PVC 88° JUNCTION
PVC 88° JUNCTION
PVC 88° JUNCTION
PVC 88° JUNCTION
PVC 88° JUNCTION
PVC 88° JUNCTION
PVC 88° JUNCTION
PVC 88° JUNCTION
PVC 88° JUNCTION
PVC 88° JUNCTION
PVC 88° JUNCTION

PVC 88° JUNCTION

AUDT015
1. Light quality, convenient transportation, loading and unloading, and small relative density.
2. It has excellent physical and chemical properties, high corrosion resistance, high impact strength, excellent acid resistance, alkali resistance, corrosion resistance and aging resistance. It is quite suitable for the main use of chemical industry, with a long service life of no less than 50 years. It is an ideal material for building water supply and drainage.
3. The fluid resistance is small, the inner cavity of the pipe is smooth, the roughness index is only 0.009, and the fluid resistance is small. The hydraulic standard of the pipe network is reasonably improved, and the system operation cost is reduced.
4. High mechanical strength, excellent impact resistance, impact resistance and tensile strength.
5. The construction of the project is simple and easy to install. The construction of the pipeline connection project is fast and easy, effectively speeding up the project progress, and the construction cost is cheap.
6. The project cost is cheap, the price is cheap, the transportation and construction are convenient, and the service life is long. Therefore, the overall project cost is cheap and the construction cost is saved. Compared with the cast iron pipes of the same specification, the construction cost can be greatly reduced.
7. It does not harm the water quality. The dissolution test confirms that it does not harm the water quality, and it is suitable for large-scale application and promotion.
PVC DWV FITTINGS AS/NZS1260
System：PVC pipe system
Scope：Drainage pipe system can be used for road drains, agricultural, railway, airport, construction and public green. PVC has the smoothest flow surface of any piping material.The pipe will not be susceptible to blockages and will maintain a high flow capacity over the life of the pipeline.
Specification：A plastic sewer system costs less to operate and maintain because it has greater flow capacity per given size and fewer joints. The economic life cycle of a PVC sewer system is projected at more than 50 years.
Referenced Standards：AS/NZS 1260
Certificate：Watermark

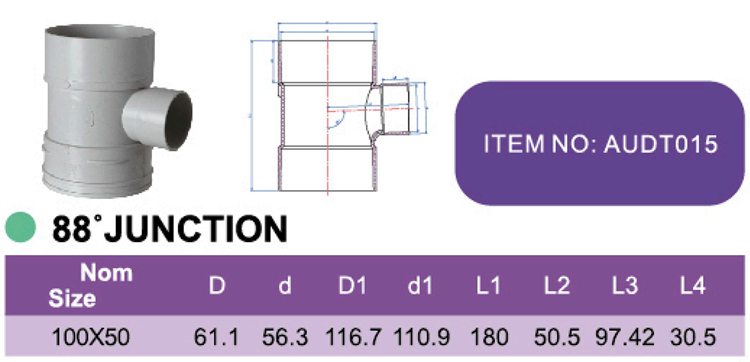

Specification：
Model NumberAUDT015MaterialPVC
Description88° JUNCTION       Size100x50MM
StandardAS/NZS1260ColorWhite
BrandERATemperature        Max 60℃  / 140°F
ConnectionSocket CertificateWatermark

Main Products：

1. Name and introduction of PVC-U drainage pipe
Building drainage uses hard PVC-U (polyvinyl chloride) pipes, which use PVC resin as the main raw material, add necessary auxiliaries, and are mixed and injection molded; the U in PVC-U is the abbreviation of Un-plasticised, which means non-plastic , meaning high strength or hardness. PVC-U pipes for building drainage should comply with the relevant regulations of GB/T5836.1-92"Rigid polyvinyl chloride pipes for building drainage".
2. Advantages of PVC-U drainage pipes
1. PVC-U drainage pipe has strong corrosion resistance, has a service life of more than 50 years and has a long service life;
2. PVC-U drainage pipe is light and easy to transport, load and unload;
3. The internal system of the PVC-U drainage pipe is connected with a rubber sealing ring, which has high water sealing and is not easy to penetrate;
4. The fluid resistance is small, the inner wall is smooth, and it is not easy to scale and block. The flow rate is 30% higher than that of cast iron pipes of the same diameter;
3. Application scope of PVC-U drainage pipe
For indoor and outdoor drainage pipeline projects in industrial and civil buildings, the temperature of continuously discharged domestic sewage does not exceed 40 degrees, and the temperature of instantaneous discharge of sewage does not exceed 80 degrees. Industrial wastewater that has no corrosive effect on pipes can be used, for example: aquaculture industry drainage projects , farmland water conservancy and water transmission and irrigation projects, landscaping and greening water supply projects, underground fire protection and water supply projects, etc.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
