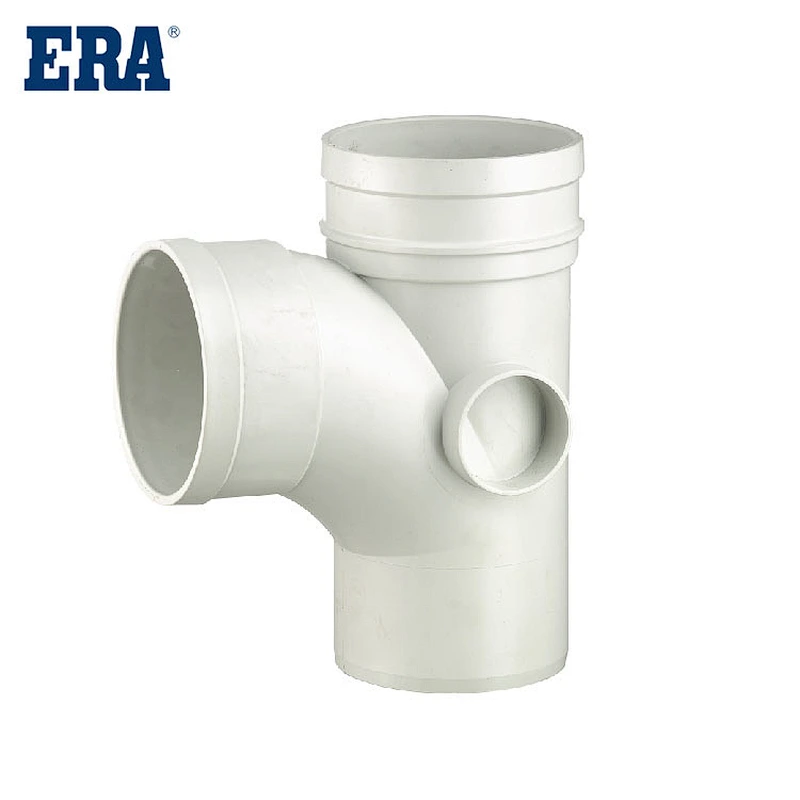

PVC 88° JUNCTION M/F
PVC 88° JUNCTION M/F
PVC 88° JUNCTION M/F
PVC 88° JUNCTION M/F
PVC 88° JUNCTION M/F
PVC 88° JUNCTION M/F
PVC 88° JUNCTION M/F
PVC 88° JUNCTION M/F
PVC 88° JUNCTION M/F
PVC 88° JUNCTION M/F
PVC 88° JUNCTION M/F

PVC 88° JUNCTION M/F

AUDT09
1. Light weight: the proportion of the material is only 1/10 of that of cast iron. It is easy to transport and install, reducing the cost.
2. Excellent chemical resistance: excellent acid and alkali resistance (except for strong acid and alkali near saturation point or strong oxidizing chemicals).
3. Non conductive: The material cannot conduct electricity and is not corroded by electrolysis and current.
4. No combustion, no combustion support: no fire concerns.
5. Simple installation and low cost: cutting and connection are very simple, PVC glue connection is reliable and safe, easy to operate and low cost.
6. Durable: excellent weather resistance, and can not be corrupted by bacteria and fungi.
7. Low resistance and high flow rate: the inner wall is smooth, the fluid fluidity loss is small, the dirt is not easy to attach to the smooth pipe wall, and the maintenance is relatively simple and cheap.
PVC DWV FITTINGS AS/NZS1260
ERA Piping Systems, PVC DWV FITTINGS ,88° JUNCTION M/F ,AUDT09, AS/NZS1260 , Watermark

System：PVC pipe system
Scope：Drainage pipe system can be used for road drains, agricultural, railway, airport, construction and public green. PVC has the smoothest flow surface of any piping material.The pipe will not be susceptible to blockages and will maintain a high flow capacity over the life of the pipeline.
Specification：A plastic sewer system costs less to operate and maintain because it has greater flow capacity per given size and fewer joints. The economic life cycle of a PVC sewer system is projected at more than 50 years.

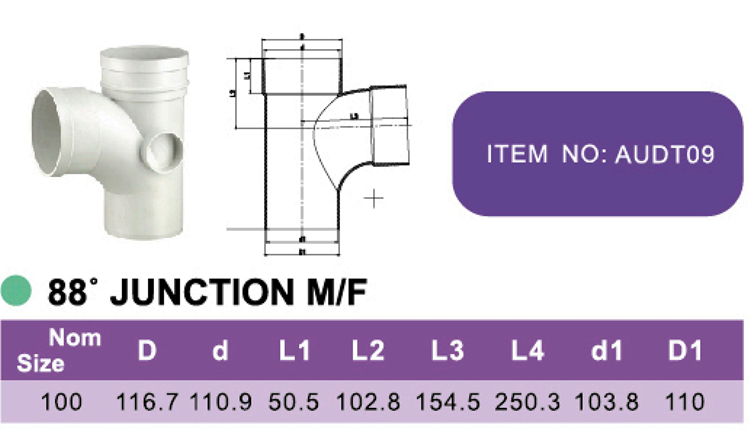

Specification：
Model NumberAUDT09MaterialPVC
Description88° JUNCTION M/F       Size100MM
StandardAS/NZS1260ColorWhite
BrandERATemperature        Max 60℃  / 140°F
ConnectionSocket CertificateWatermark
Main Products：
Material pipe is generally made of plastic resin as raw material, adding stabilizer, lubricant, etc., by plastic method in the pipe making machine after extrusion processing. Because of its light weight, corrosion resistance, beautiful appearance, no bad smell, easy processing, convenient construction, etc., it has been more and more widely used in construction engineering. Mainly used for building tap water supply system distribution pipe, drainage, exhaust and sewage sanitation pipe, underground drainage pipe system, rain pipe and wire installation supporting the threading pipe and so on.

Plastic pipe has thermoplastic pipe and thermosetting plastic pipe two categories. The main resins used in thermoplastic pipe are polyvinyl chloride resin (PVC), polyethylene resin (PE), polypropylene resin (PP), polystyrene resin (PS), acrylonitrile-butadiene styrene resin (ABS), polybutene resin (PB), etc.; The main resins used in thermosetting plastics are unsaturated polyester resin, epoxy resin, furan resin, phenolic resin and so on. Table 1 lists the characteristics of these plastic pipes and the main uses of PVC pipes

It has good tensile and compressive strength, but its flexibility is not as good as other plastic pipes, excellent corrosion resistance, and the price is the cheapest in all kinds of plastic pipes, but it is brittle at low temperature

Bonding, socket and insert rubber ring connection, flange thread connection

Used for residential life, industry, mining, agriculture of water supply and drainage, irrigation, gas supply, exhaust pipe, wire conduit, rain pipe, industrial anti-corrosion pipe, etc

FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
