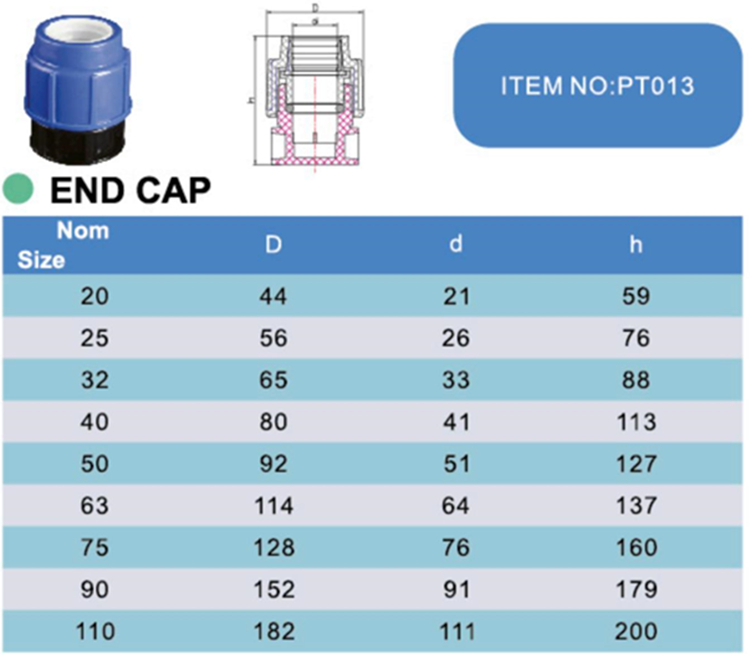

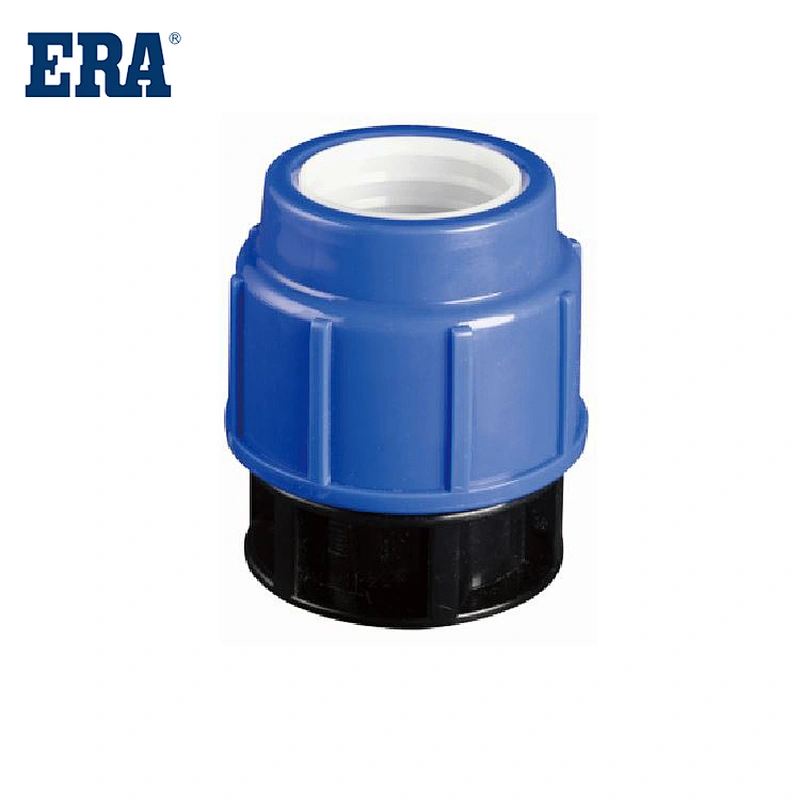

ERA Piping Systems, PP Fitting Compression Fitting Valves & Filters , PP Compression End Cap , plastic end cap for PT013 , WRAS

Specification：
Moreover, our PP Compression Fitting has an optimum sealing which works under all the conditions.
With an adequate combination of these fittings it is possible to design and pressure piping application of fluide with PE pipes
Referenced Standards：EN ISO1587 ; AS/NZS4129

Can be installed with high density and low density PE pipes (from PE32 up to PE100)
Pipe and fittings shall be manufactured from virgid PP(polypropylene) compounds.

With an adequate combination of these fittings it is possible to design and pressure piping application of fluide with PE pipes
Referenced Standards：EN ISO1587 ;  AS/NZS4129
Compression fittings are an excellent alternative to sweating two pipes together.

Fields of application：
Piping networks for water treatment systems.
Piping networks for irrigation of gardening or farming.
Piping networks for underground water supply system of living areas or factories.

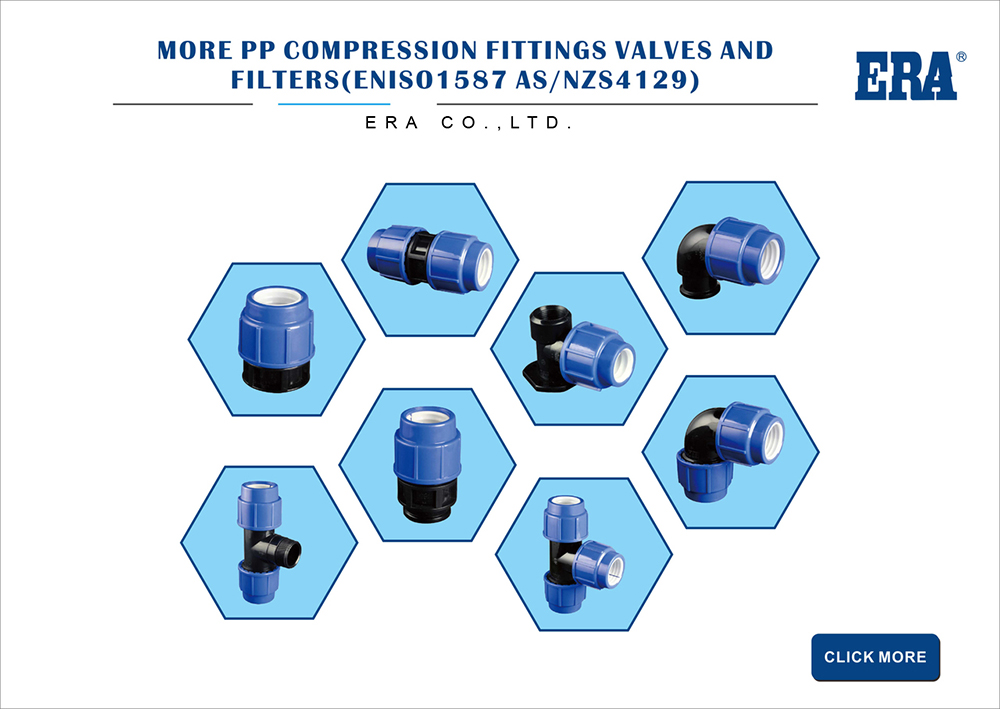

Main Products：

Basic performance of PP

1. PP physical properties

Non-toxic, odorless, tasteless opalescent high crystalline polymer with a relative molecular weight of about 80,000-150,000.

Low density: 890-910kg/m3, is one of the lightest plastic varieties.

Strong hydrophobicity: water absorption rate of 24h is only 0.01%.

Formability is good, but the shrinkage rate is large, thick wall products are easy to sag. Product surface luster is good, easy to color.

2. Mechanical properties

PP has excellent mechanical properties due to its high crystallinity and regular structure. However, at room temperature and low temperature, due to the high degree of molecular structure regularity, so the impact strength is poor. The most outstanding performance of PP is the resistance to bending fatigue.

3. Thermal performance

PP has good heat resistance, products can be sterilized at more than 100℃ temperature, in the condition of no external force, 150℃ does not deformation. Embrittlement temperature is -35℃, below -35℃ will occur embrittlement, cold resistance is not as good as PE.

The increase of isometric or decrease of molecular weight is beneficial to the improvement of thermal properties.

4. Chemical stability

The chemical stability of PP is very good, in addition to being eroded by concentrated sulfuric acid, concentrated nitric acid, other chemical reagents are relatively stable; But low molecular weight aliphatic hydrocarbon, aromatic hydrocarbon and chlorinated hydrocarbon can make polypropylene softening and swelling, at the same time its chemical stability with the increase of crystallinity and improve, so PP is suitable for making a variety of chemical pipes and accessories, corrosion prevention effect is good.
