PTIII007

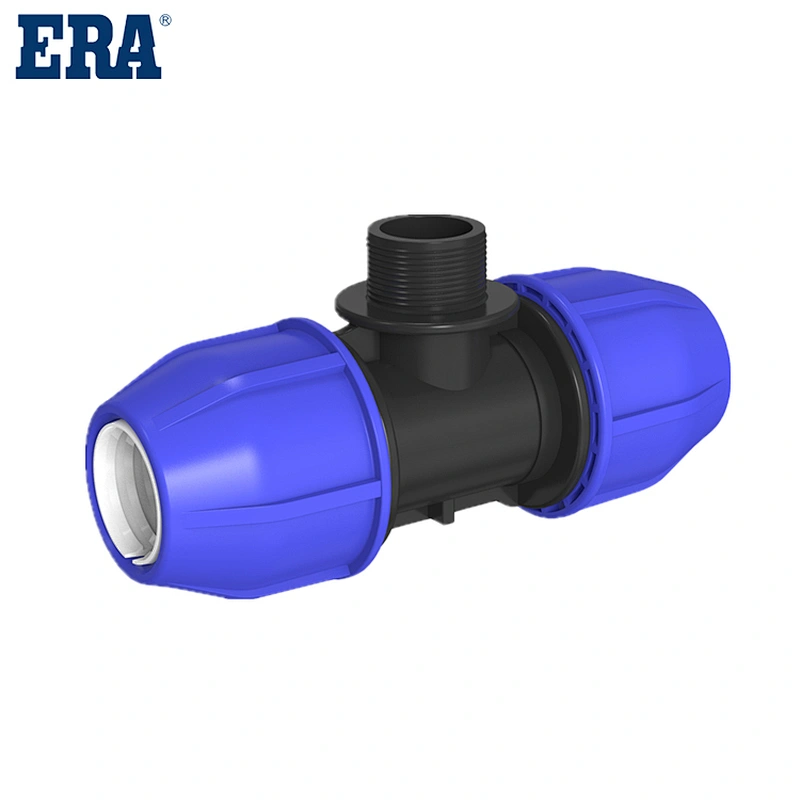

ERA Piping Systems, III PP Compression Fitting , PP Compression Male Thread Tee , PTIII007 , WRAS System: Mechanical Compression Fitting (known as PP compression fittings) is a fitting that connect piping elements which require physical force to develop a seal or produce...
The characteristics of PP pipe are:
1. PP pipe is light in weight, with a specific gravity only eight times that of steel pipe. It is easy to install, transport and connect, saving labor costs.
2. PP pipes are corrosion-resistant and can effectively prevent ions in water or chemical substances from corroding the inside and outside of the pipes.
3. The inner wall of the PP pipe is smooth, the system pressure loss is small, and the water flow rate is fast.

ERA Piping Systems, PP Compression Fitting ,male thread TEE,PT III 007, (ENISO1587AS/NZS4129) , Watermark & WRAS

Specification：
Moreover, our PP Compression Fitting has an optimum sealing which works under all the conditions.
With an adequate combination of these fittings it is possible to design and pressure piping application of fluide with PE pipes
Referenced Standards: EN ISO1587 ; AS/NZS4129
You should slide the nut on the pipe and after that place the compression ring. Next, all that is left is to slide the pipe directly into the fitting and make sure that the nut is tightened as required.

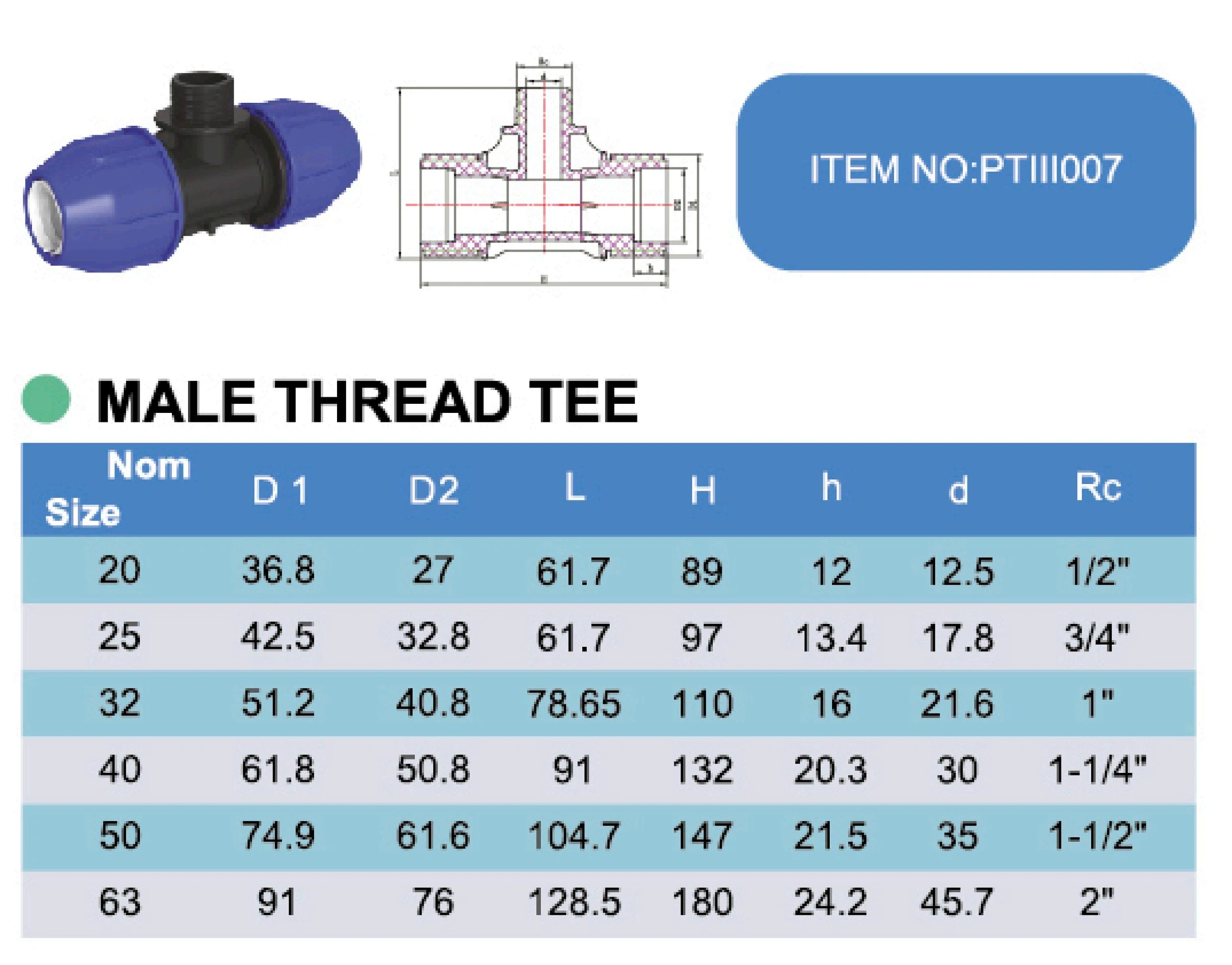

Model NumberPTIII007MaterialPP
DescriptionMALE THREAD TEESize25*1/2''-200*4''
StandardEN ISO1587 AS/NZS4129ColorBLACK BOSY BLUE CAP
BrandERATemperatureMax 60°C / 140°F
ConnectionSocket CertificateWRAS WATERMARK

PP Compression Fittings is fabricated and designed using premium quality basic material and progressive technology.
Turning of pipes can be prevented by inner threaded during installation.
The high-quality material used in the product has an application in the area of water distribution, irrigation, swimming pools, and cable conduits.

Main Products：

pp material is polypropylene, polypropylene is non-toxic, odorless, tasteless milky white high crystallization polymer, density is only 0.90 --"0.91g /cm3, is one of the lightest varieties of all plastics. It is particularly stable to water, water absorption rate is only 0. 01%, molecular weight of about 81 thousand 15 thousand. Formability is good, but because of the shrinkage rate is large (1%~2.5%). Thick wall products are easy to sag, for some parts with higher dimensional accuracy, it is difficult to meet the requirements, the product surface luster is good.

What is pp pipe?
PP pipe is a non-toxic, hygienic, high temperature resistant and recyclable pipe. It is mainly used in indoor hot and cold water supply systems in buildings and is widely used in heating systems.
The characteristics of pp pipes are non-corrosion, wear resistance, no scaling, vibration and noise reduction, and anti-freeze cracking (PP pipes will freeze and crack at low temperatures above -20°C, and will decompose as long as the high-temperature working environment exceeds 70°C. The use temperature is -20℃ to 70℃), anti-condensation, less heat loss, simple installation and long service life. There are three types of connections*: welding*, end edge welding*, and nozzles of different materials.
