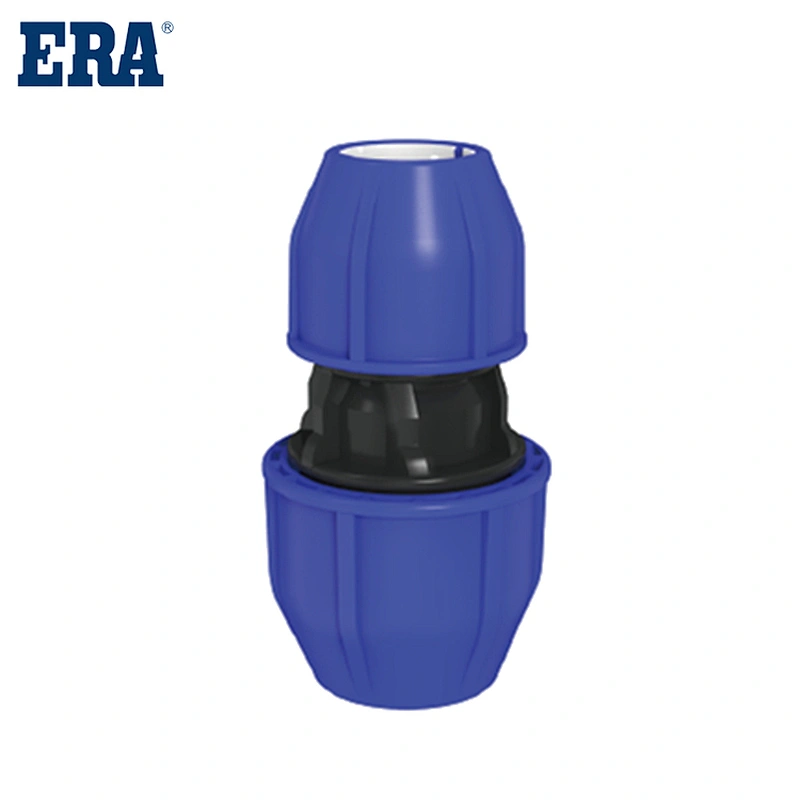

PTIII011
ERA Piping Systems, III PP Compression Fitting , PP Compression Reducing Socket , PTIII011 , WRAS System: Mechanical Compression Fitting (known as PP compression fittings) is a fitting that connect piping elements which require physical force to develop a seal or produce...
Features
◇ Non-corrosive: PP pipes can withstand the corrosion of high-concentration acids and alkalis with a pH value ranging from 1 to 14 over a wide temperature range.
◇ Wear-resistant and non-scaling: The inner walls of PP pipes and fittings are uniform and smooth, with low flow resistance and no scaling.
◇ Reduce vibration and noise: PP pipe has excellent sound insulation properties and can significantly reduce vibration and noise caused by liquid flow.
◇ Anti-frost cracking: The excellent elasticity of PP material allows the cross-section of pipes and pipe fittings to expand with the frost-heaving liquid without cracking.
◇ Anti-condensation, less heat loss: PP material is a poor thermal conductor, which can reduce condensation and reduce heat loss.
◇ Simple installation: PP pipe is light in weight, easy to install and operate, and has weldability.
◇Long service life: The PP pipe system has a service life of 50 years under specified use conditions.

ERA Piping Systems,III PP Compression Fitting ,  PP Compression Reducing Socket , PTIII011  , WRAS

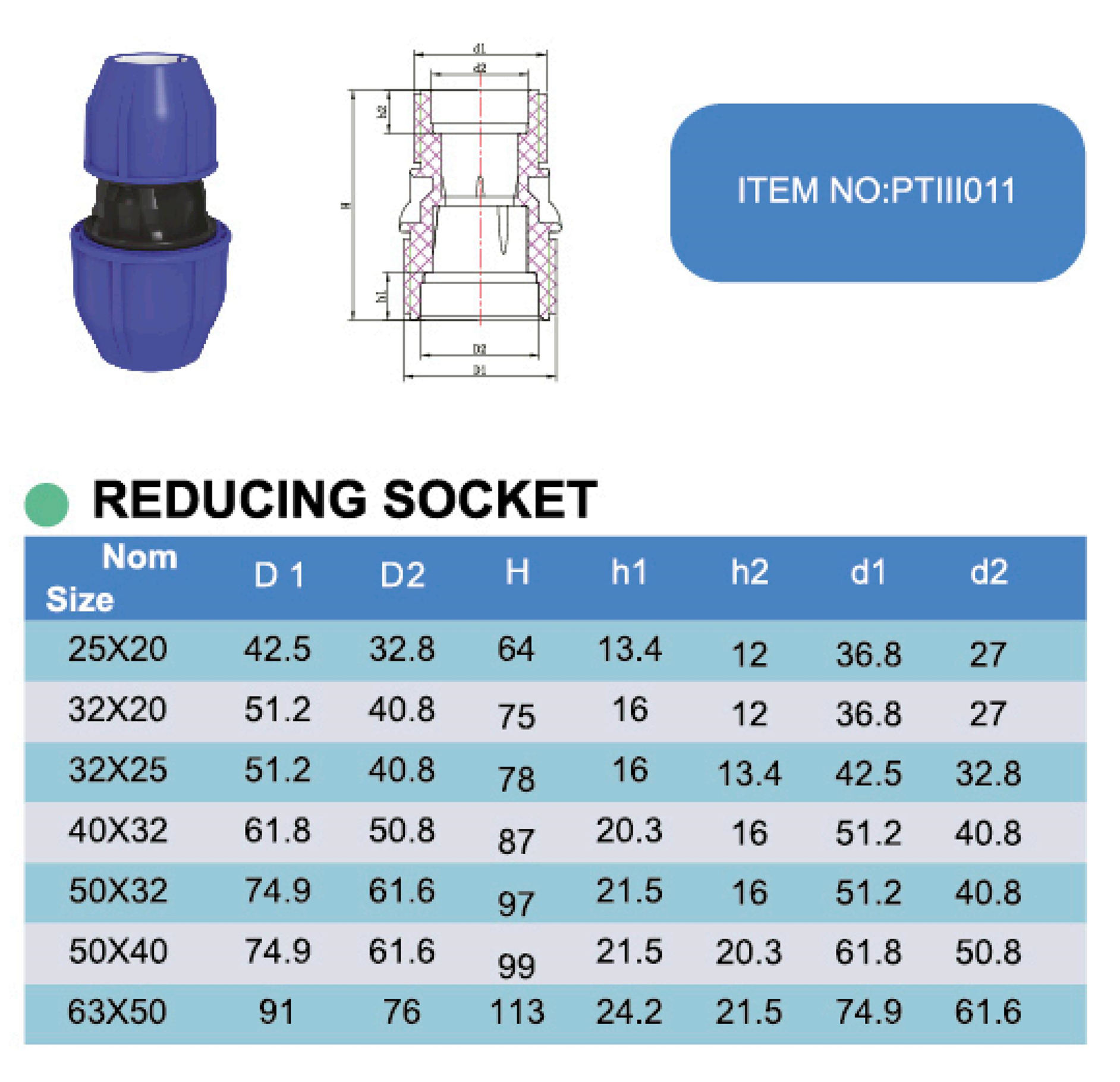

Model NumberPTIII011MaterialPP
DescriptionREDUCING SOCKETSize25*20-63*50
StandardEN ISO1587 AS/NZS4129ColorBLACK BOSY BLUE CAP
BrandERATemperatureMax 60°C / 140°F
ConnectionSocket CertificateWRAS WATERMARK

Can be installed with high density and low density PE pipes (from PE32 up to PE100)
Pipe and fittings shall be manufactured from virgid PP(polypropylene) compounds.
With an adequate combination of these fittings it is possible to design and pressure piping application of fluide with PE pipes
Referenced Standards:  EN ISO1587 ;  AS/NZS4129
Compression fittings are an excellent alternative to sweating two pipes together.

Fields of application：
Piping networks for water treatment systems.
Piping networks for irrigation of gardening or farming.
Piping networks for underground water supply system of living areas or factories.

Main Products：

The characteristics of pp plastic：

1, the heat resistance is very good, pp products can be used for a long time in the high temperature environment below 100 degrees, the temperature to about 150 degrees will not be obvious deformation.

2, the density is smaller, 0.81- 0.91g/ cm 3, is the smallest density of commonly used plastics.

pp material has good mechanical properties, high heat resistance, good chemical properties, almost no water absorption, and the vast majority of chemicals do not react, pure texture, non-toxic, good electrical insulation.

3, the disadvantage is low dimensional accuracy, insufficient rigidity, poor weather resistance, it is a shrinkage phenomenon, products easy to aging, brittle and deformation.

4, the shrinkage rate is large, the shrinkage rate is 1.2-----2.5%, add 30% glass fiber to about 0.7%.

5, if stored properly, there is no need to dry treatment.

6, melt adhesive back pressure available 5bar, color powder back pressure can be adjusted.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
