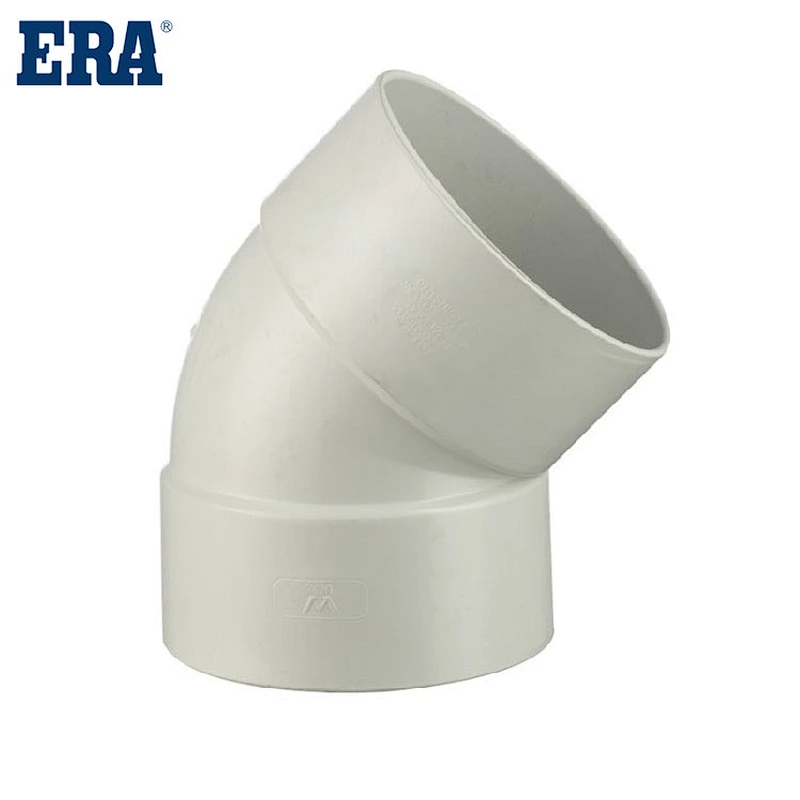

45° BEND F/F
45° BEND F/F
45° BEND F/F
45° BEND F/F
45° BEND F/F
45° BEND F/F
45° BEND F/F
45° BEND F/F
45° BEND F/F
45° BEND F/F
45° BEND F/F

45° BEND F/F

AUDE03
The pipeline has excellent corrosion resistance to inorganic acid, alkali and salt, and is suitable for industrial sewage discharge and transmission.The construction method is simple, the operation is convenient, and the installation efficiency is high.Can maintain good water tightness.The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to block, and the maintenance workload is small. The material has high oxygen index and self extinguishing property. The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small.
PVC DWV FITTINGS AS/NZS1260
ERA Piping Systems, PVC DWV FITTINGS , 45° BEND F/F ,AUDE03, AS/NZS1260 , Watermark

ERA PIPING(ZHEJIANG) CO., LTD. a listed company, is the leading manufacturer in China specialized in PVC, PVC, CPVC, PE, PP piping systems
With an annual production capacity of 600,000 tons, ERA Co., ltd has more than 4000 employees in 12 factories covering 1332000 square meters in China.
Equipped with 900 injection machines, 300 extrusion machines and 12000 moulds, ERA reached a sales turnover of USD900,000,000 in 2019, including export sales covering 146 countries all over the world.

Referenced Standards：AS/NZS1260

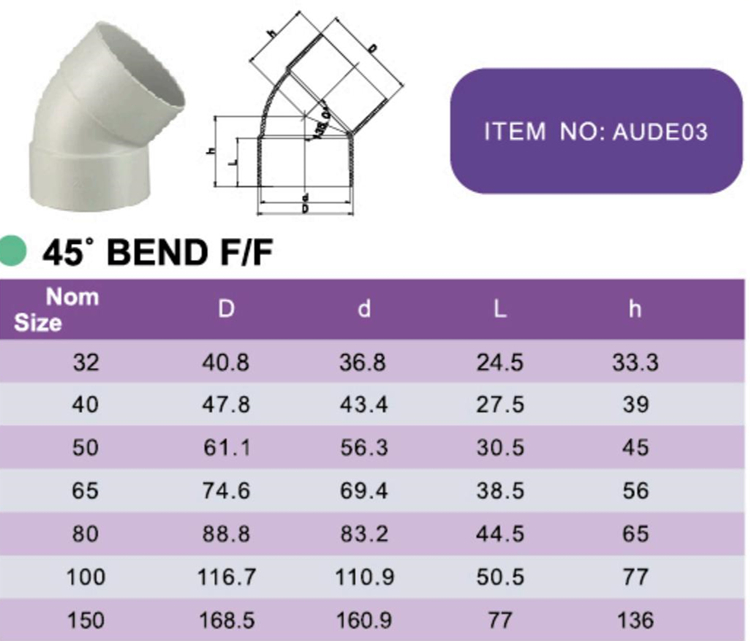

Specification：
Model NumberAUDE03MaterialPVC
Description45° BEND F/FSize32-150MM
StandardAS/NZS1260ColorWhite
BrandERATemperature
ConnectionSocket CertificateWatermark

Main Products：
The main raw material of the PVC-U pipeline series is PVC resin, and add the appropriate stabilizer, lubricant, filler and toner, through rapid extrusion or injection molding. Compared with traditional pipes, it has the advantages of light weight, corrosion resistance, low water resistance, energy saving, fast installation and low cost.

PVC-U drain pipe is a kind of drain pipe series products with mature technology, which has been widely used at home and abroad. The product has the advantages of long life and corrosion resistance that can not be compared with cast iron pipe. Light construction, easy handling, easy connection; Widely used in civil building drainage, chemical drainage, rain pipe and other fields.

PVC-U drainage pipe is the most used plastic pipe in water supply and drainage engineering. Drainage pipe installation generally depends on the slope of the pipe to achieve the flow effect. Because the inner wall of PVC-U drainpipe is very smooth, its roughness coefficient is 0.008~0.009.

The flow rate of PVC drainage pipe is much greater than that of metal pipe, and long-term use will not adhere to scale, so the flow rate will not reduce. In addition, it also increases the characteristics of acid resistance, alkali resistance and corrosion resistance of PVC drainage pipe. It is one of the most practical pipes in sewer engineering pipeline.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
