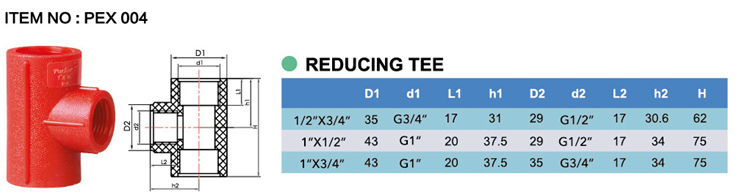

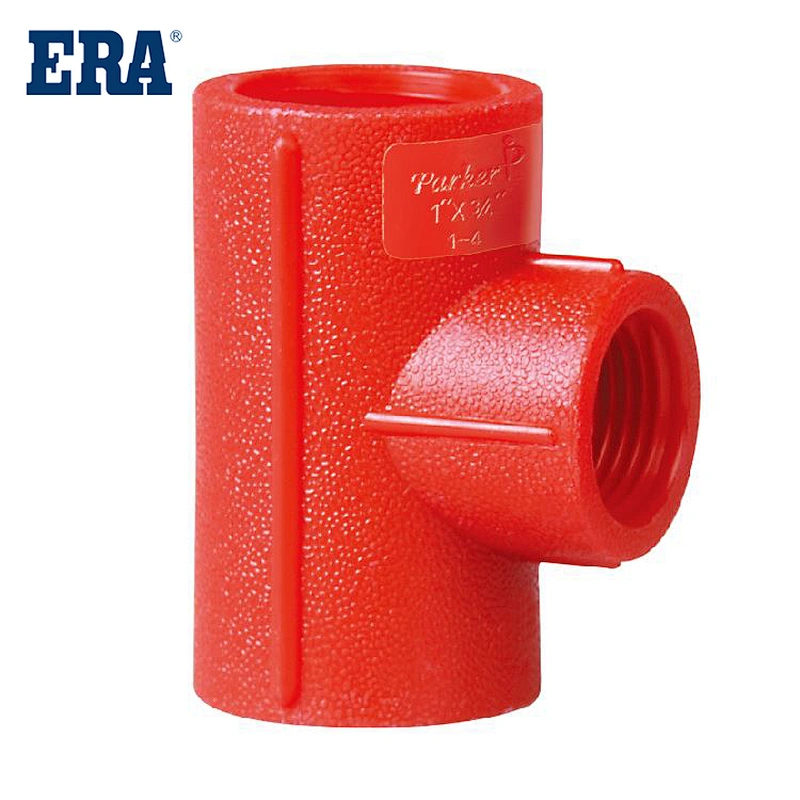

ERA Piping Systems, PP THREAD FITTINGS, PEX004, Reducing Tee
Model Number: | PEX004 | Material | PP |
Description: | Reducing Tee | Standard | ENISO1587 AS/NZS4129 |
Temperature: | Max 60℃ /140℉ | Working Pressure: | PN16 ,16Bar, 1.6Mpa |
Size: | 1/2'',3/4'',1'' | Certificate: | WATERMARK WRAS |
Connection: | Socket | Color: | BLACK,RED |
Fields of application:
Piping networks for water treatment systems.
Piping networks for irrigation of gardening or farming.
Piping networks for underground water supply system of living areas or factories.
Features:
The compression fittings for HDPE pipe are made by high quality PP material with UV protection, both material and fittings are approved use with drinking water.
PP Compression Fittings is fabricated and designed using premium quality basic material and progressive technology.
Our company is one of the great manufacturers from all around the world.
The high-quality material used in the product has an application in the area of water distribution, irrigation, swimming pools, and cable conduits.
Fast & Reliable Connection: Split ring opening has been optimized to make pipe insertion even easier.
Main Products：
Product characteristics
Because of the high crystallinity, the external stiffness and scratch resistance characteristics of pp tube are very good, so there is no stress cracking problem.
Low MFR PP tube data have good impact resistance characteristics but low extension strength. For the same MFR information, the strength of the copolymer type is higher than that of the homopolymer type. Because of crystallization, the shortening rate of PP is quite high, usually 1.8~2.5%.
The strength of PP tube increases with the addition of ethylene content. The Vica softening temperature of PP was 150℃. In the market, PP is generally modified by joining glass fiber, metal additives or thermoplastic rubber.
PP tube is a kind of semi-crystalline material. It is stronger than PE and has a higher melting point. Because homopolymer type PP tube temperature above 0℃ is very brittle? Therefore, many trade PP information is to participate in 1~4% ethylene random copolymer or higher ratio of ethylene clamp copolymer content. Copolymer PP data has a lower thermal distortion temperature (100℃), low visibility, low gloss, low rigidity, but there is a stronger impact strength. The activity rate MFR of PP is limited to 1~40. Moreover, the deviation average of shortening rate is much better than that of PE-HD data. Adding 30% glass additive reduces the shortening rate to 0.7%. Homopolymer type and copolymer type PP data have excellent hygroscopic resistance, acid and alkali erosion resistance, and ablation resistance. However, it has no counterweight to phenarene (such as benzene) solvent, chlorinated hydrocarbon (carbon tetrachloride) solvent. PP tube also does not have oxidation resistance at high temperature like PE.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
