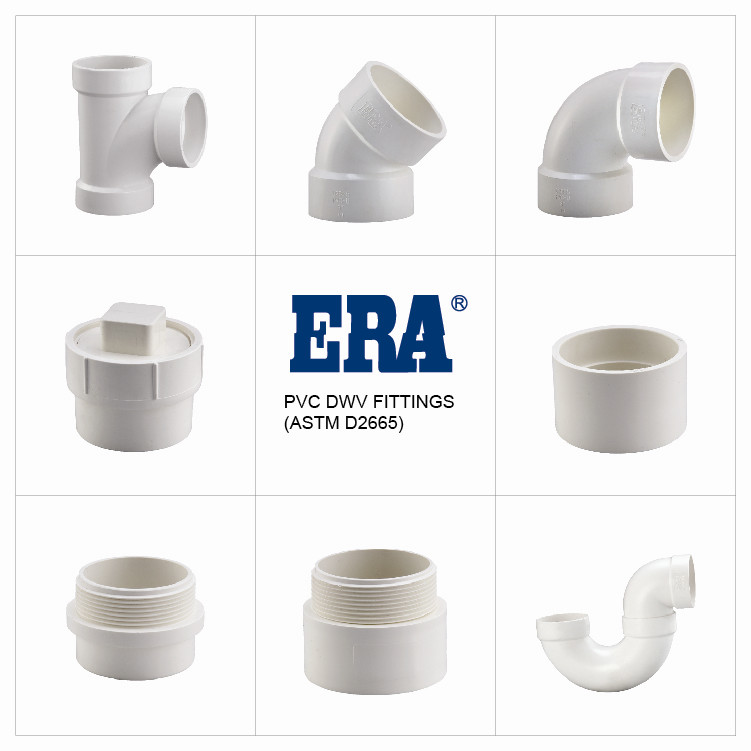

  4. PVC DWV Drainage Fittings (ASTM D2665)
  5. PVC 45° ELBOW
Categories

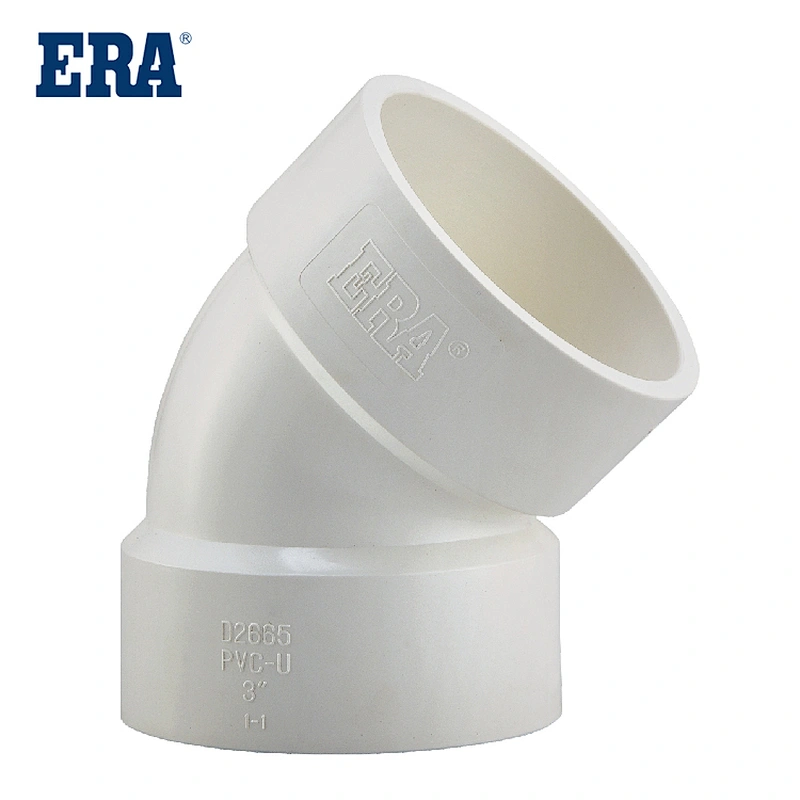

PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW

PVC 45° ELBOW

UDA003
1. PVC pipe has good tensile and compressive strength
2. The wall of PVC pipe is very smooth, so the resistance of water flow is very small, and the water delivery effect is very good.
3. The corrosion resistance and drug resistance of PVC pipe are also very good, with good acid and alkali resistance characteristics. It is not affected by moisture and soil pH, and has a long service life.
4. PVC pipes also have good water tightness. This kind of pipes are connected by adhesive or rubber ring
Can maintain good water tightness.
5. Pvc pipe has good tensile and thermal stability, and can be used in different environments.
 PVC DRAINAGE FITTINGS WITH GASKET
ERA EN1401 EN1329 PVC DRAINAGE FITTINGS 45° ELBOW WITH SINGLE END RUBBER RING

A PVC 45° elbow is a type of PVC pipe fitting that allows for a change in direction of 45 degrees in a plumbing or piping system. It is typically used to connect two pipes at a 45-degree angle, enabling the smooth flow of water or other fluids around corners or obstacles. PVC 45° elbows are designed with socket or slip ends to facilitate easy solvent welding or gluing onto PVC pipes, ensuring a secure and leak-proof connection. These fittings are commonly used in various applications, including residential plumbing, irrigation systems, and industrial piping networks, where precise angles are required to navigate around obstacles or create specific configurations.

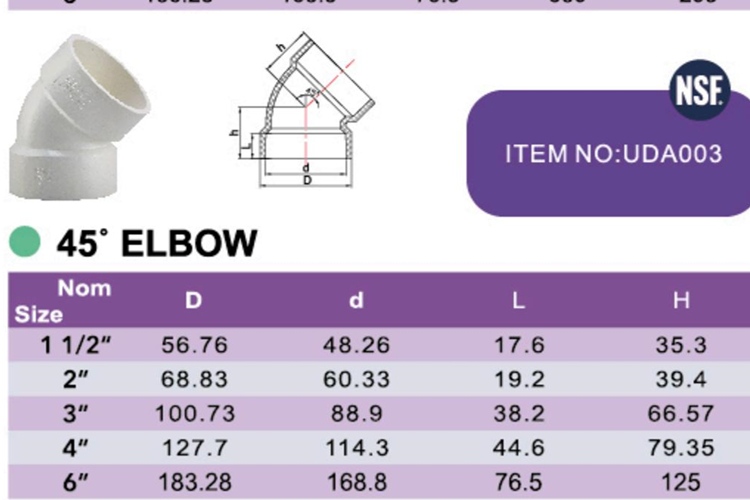

Specification：
Model NumberUDA003MaterialPVC
Description
PVC DRAINAGE 45° ELBOW
Size1 1/2''-6''MM
StandardASTM D2665ColorGrey、White、Black
Working PressureTemperatureMax 60°C / 140°F
ConnectionSocketCertificateUPC

Main Products：
Elbows and seamless elbows in PVC chemical pipe fittings are often used in the bending part of the pipeline to change the direction of the pipeline. Commonly used are 45° elbow and 90° elbow, bending radius of about 1.0 times the outside diameter of the pipe is called short radius elbow, about 1.5 times the outside diameter of the pipe is called long radius elbow.

In the piping system layout, it is generally appropriate to choose the long radius elbow connection, short radius elbow is usually used in the pipe system installation position is more compact or to reduce costs. When a short radius elbow is used, the higher working pressure should not be greater than 0.8 times of the long radius elbow of the same specification. Miter elbows in PVC chemical pipe fittings are usually used in large size pipes with low pressure, water and similar fluid medium conditions. When the single section of miter elbow variable direction Angle is greater than 45°, it is not suitable for toxic, combustible medium pipelines, or pipelines subjected to vibration, pressure pulsation and alternating load due to temperature change.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery：Sample will be prepared in 2-3days.
6. Shipping：We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
