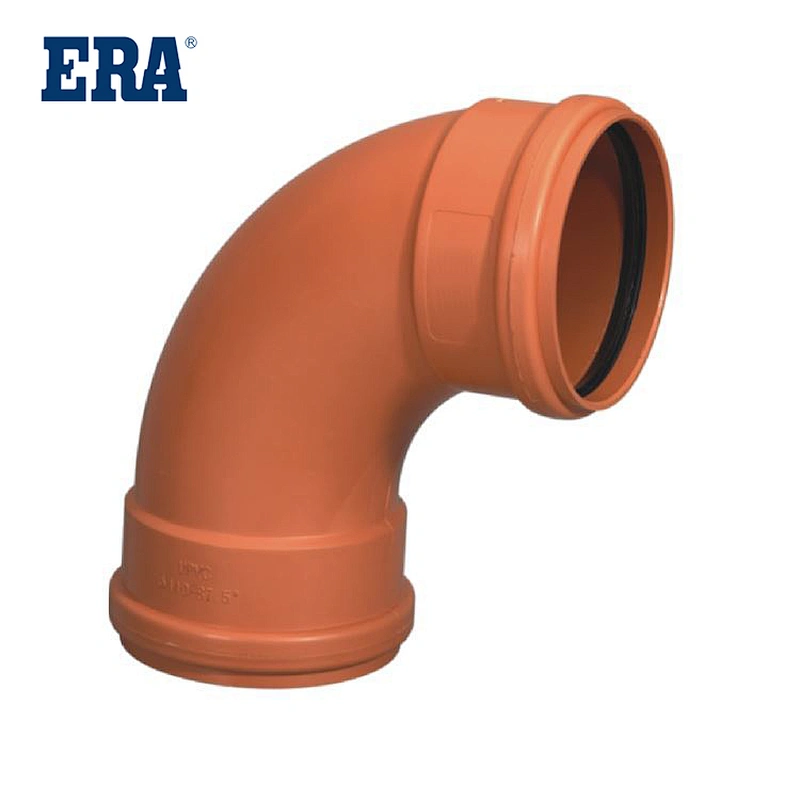

PVC 90° SWEEP WITH DOUBLE SOCKET RUBBER
PVC 90° SWEEP WITH DOUBLE SOCKET RUBBER
PVC 90° SWEEP WITH DOUBLE SOCKET RUBBER
PVC 90° SWEEP WITH DOUBLE SOCKET RUBBER
PVC 90° SWEEP WITH DOUBLE SOCKET RUBBER
PVC 90° SWEEP WITH DOUBLE SOCKET RUBBER
PVC 90° SWEEP WITH DOUBLE SOCKET RUBBER
PVC 90° SWEEP WITH DOUBLE SOCKET RUBBER
PVC 90° SWEEP WITH DOUBLE SOCKET RUBBER
PVC 90° SWEEP WITH DOUBLE SOCKET RUBBER
PVC 90° SWEEP WITH DOUBLE SOCKET RUBBER

PVC 90° SWEEP WITH DOUBLE SOCKET RUBBER

UDR013
1. PVC drainage pipes are made of sanitary grade pvc resin with high-performance processing aids.
2. PVC drainage pipes use calcium zinc stabilizer, which is lead-free, healthy and non-toxic.
3. It is non plasticized PVC pipe without any plasticizer.
4. The technical level of PVC drainage pipes is advanced in China.
5. Various pressure grade pipes can be made, and white, blue, gray and other colors are available.
6. The flat opening and R opening can be expanded according to customer requirements, which is convenient for construction; Equipped with pure rubber sealing ring, it has good aging resistance and strong sealing performance.
7. After strict performance and hygiene tests, the product meets the national hygiene standards and is a healthy and environment-friendly water transmission pipeline.
PVC water pipes have great advantages in physical and chemical properties. It is made of unique mechanical and physical properties. The service life of this kind of pipe can be as long as 50 years. At the same time, it has many characteristics such as corrosion resistance, aging resistance and wear resistance.

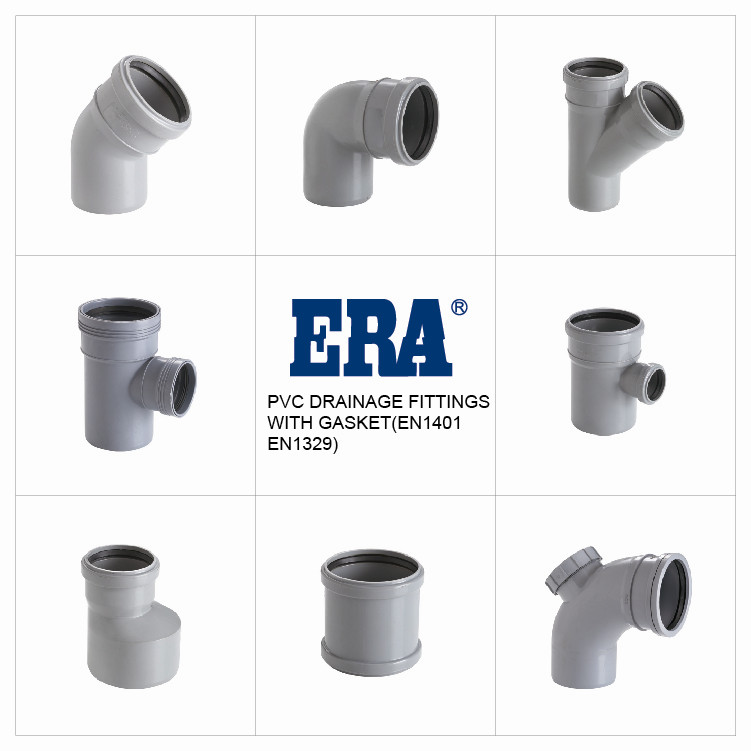

 PVC DRAINAGE FITTINGS WITH GASKET
ERA EN1401 EN1329 PVC DRAINAGE FITTINGS 90° SWEEP WITH DOUBLE SOCKET RUBBER WITH SINGLE END RUBBER RING

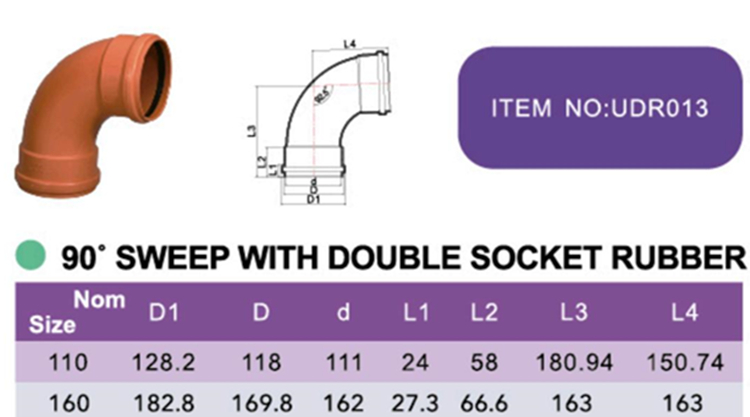

Specification:
Model NumberUDR013MaterialPVC
Description
PVC DRAINAGE FITTINGS 90° SWEEP WITH DOUBLE SOCKET RUBBER
Size110、160MM
StandardEN1401 EN1329ColorGrey
Working PressureTemperatureMax 60°C / 140°F
ConnectionSocketCertificateCE


Main Products:

Advantages of PVC drainage pipe:

1. Light pipe and convenient construction

The proportion of PVC drainage pipe is about 1.4t/m3, only for cast iron pipe l / 5, the same length of plastic pipe is much lighter than cast iron pipe, installation only manual handling, and PVC drainage pipe is a socket type dissolving interface, at the same time, its standard length (6m, 4m) than cast iron pipe long, reduce the number of interfaces, reduce the installation process.

2, good drainage performance

The pipe diameter of PVC drainage pipe can be smaller than that of cast iron pipe, or the same pipe diameter can be used as far as possible within the scope of the specification permits, which can increase the net height of the space, more favorable for users, and enhance the use of the function of the building.

3: economic, beautiful

PVC drainage pipe usually outer wall is white, and is not used as paint brush red lead, silver powder and other anti-corrosion treatment, there is no such as cast iron pipe outer wall corrosion and fall off and other problems, hidden into the pipe well does not need frequent maintenance care, open installation is more significant than cast iron pipe advantages: Easy to clean, less obstruction to visual effects, greatly improve people's living, working environment, but also convenient building property management.

4. Good social benefits

PVC drainage pipe can be widely replaced by other steel drainage pipe, and greatly reduce the energy consumption in the process of steel making.

5. Excellent physical and chemical properties

PVC drainage pipe chemical properties are stable, unique mechanical and physical properties make it can be used normally for 50 years, at the same time, its corrosion resistance, aging resistance, wear resistance also make it more stable than drainage cast iron pipe, cement pipe long-term use.
