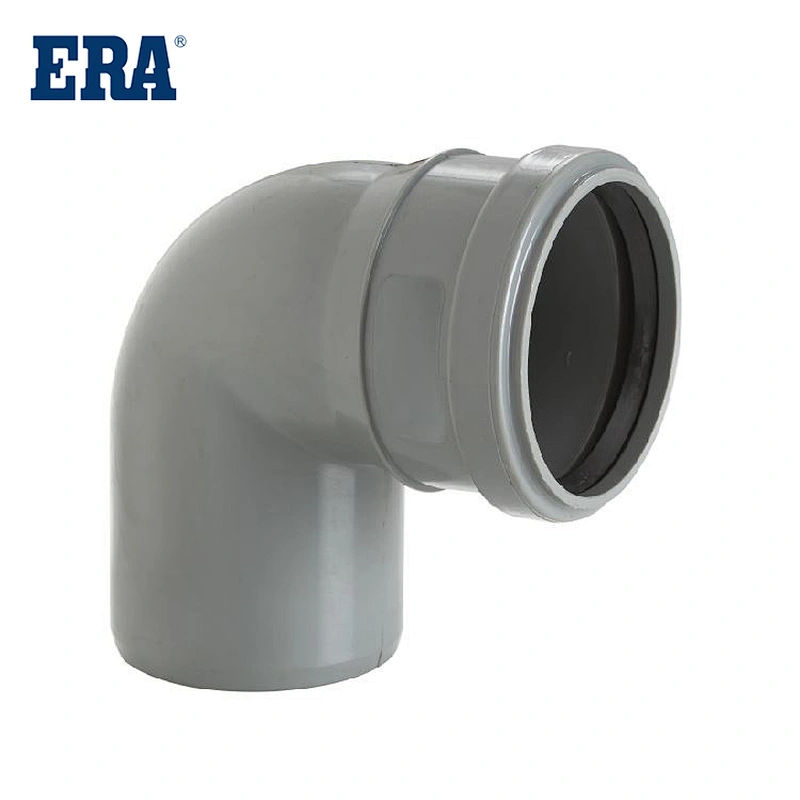

PVC 90° ELBOW M/F

Model NO.: UDRN002

1. Light weight, convenient handling: small density, convenient handling, loading and construction.
2. Excellent corrosion resistance: It has excellent acid resistance, alkali resistance and corrosion resistance, and is very suitable for use in the chemical industry.
3. Low fluid resistance: the inner wall of the pipe is smooth, its roughness coefficient is only 0.009, and the fluid resistance is small, which effectively improves the hydraulic conditions of the pipe network and reduces the system operating costs.
4. High mechanical strength: the pipe has good pressure resistance, impact resistance and tensile strength.
5. Simple construction: the pipeline connection construction is fast and easy, and the construction cost is low.
6. Low cost: low price, convenient transportation and construction, long service life, so the overall cost is low.
7. No impact on water quality: It is confirmed by the dissolution test that it does not affect the water quality and is suitable for large-scale promotion and application.

Product Description

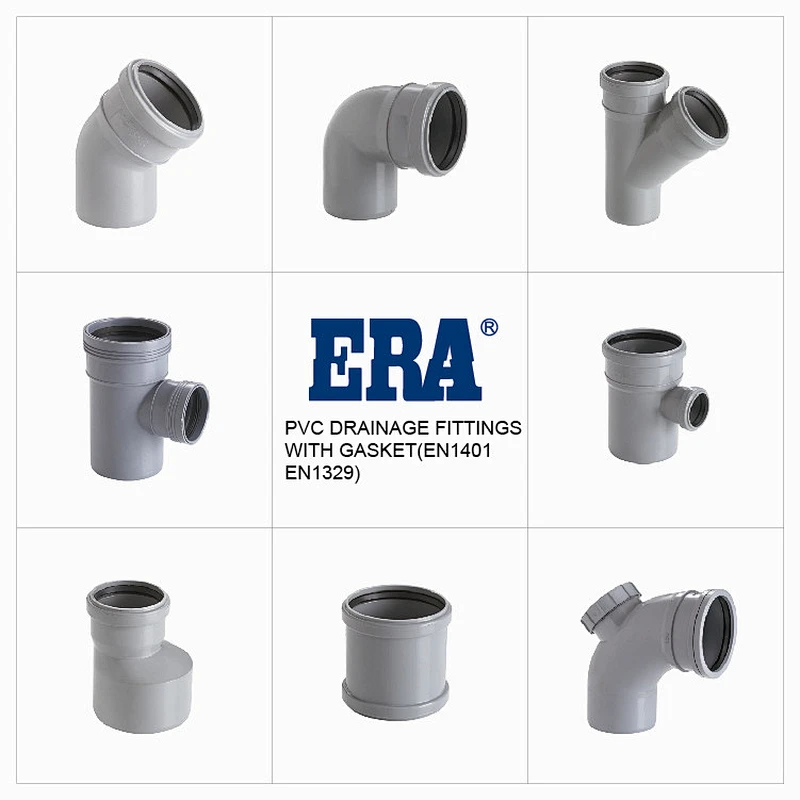

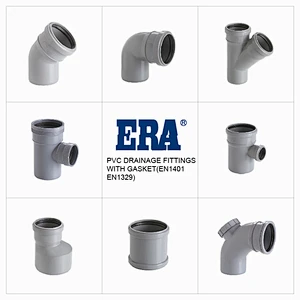

PVC DRAINAGE FITTINGS WITH GASKET
ERA EN1401 EN1329 PVC DRAINAGE FITTINGS 90° ELBOW M/F WITH SINGLE END RUBBER RING

ERA., LTD. a listed company, is the leading manufacturer in China specialized in PVC, PVC, CPVC, PE, PP piping systems
With an annual production capacity of 600,000 tons, Era Co., ltd has more than 4000 employees in 12 factories covering 1332000 square meters in China.
Equipped with 900 injection machines, 300 extrusion machines and 12000 moulds, Yonggao reached a sales turnover of USD900,000,000 in 2019, including export sales covering 146 countries all over the world.

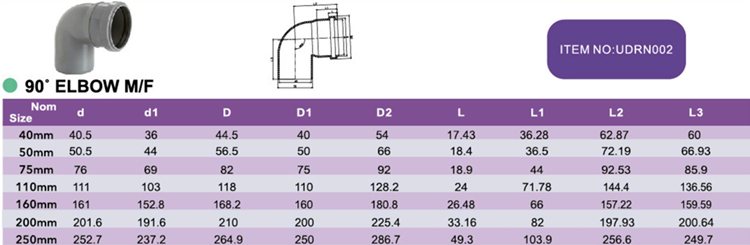

Specification：

Model Number	UDRN002	Material	PVC
Description	PVC DRAINAGE FITTINGS 90° ELBOW M/F	Size	40-250MM
Standard	EN1401 EN1329	Color	Grey
Working Pressure		Temperature	Max 60°C / 140°F
Connection	Socket	Certificate	CE

Main Products：

Advantages of PVC drain pipes：
1. The pipe is light and easy to construct.
The specific gravity of PVC drainage pipes is about 1.4t/m3, which is only l/5 of cast iron pipes. Plastic pipes of the same length are much lighter than cast iron pipes. They only need to be transported manually during installation, and PVC drainage pipes are made of bearings. At the same time, the plug-in melt-adhesive interface has a standard length (6m and 4m) longer than that of cast iron pipes, which reduces the number of interfaces and the installation process.
2. Good drainage performance
The diameter of PVC drainage pipes can be smaller than that of cast iron pipes, or the same pipe diameter can use a smaller slope within the scope of the specification. This can increase the clear height of the space, which is more beneficial to users and enhances the quality of the building. Use function.
3: Economical and beautiful
The outer wall of PVC drainage pipes is usually white, and it is not used for anti-corrosion treatment such as painting with red lead or silver powder. There are no problems such as rust and peeling off of the outer wall of cast iron pipes. When installed concealed in the tube well, it does not require regular maintenance and care, while exposed installation is better than cast iron. The advantages of the tube are more significant: easy to clean, less obstruction to the visual effect, greatly improving people's living and working environment, and also facilitating the property management of the building.
4. Good social benefits
PVC drainage pipes can replace other steel drainage pipes on a large scale and greatly reduce energy consumption in the steelmaking process.
5. Superior physical and chemical properties
PVC drainage pipes have stable chemical properties and unique mechanical and physical properties that enable them to be used normally for up to 50 years. At the same time, their corrosion resistance, anti-aging, and wear resistance also make them more stable for long-term use than drainage cast iron pipes and cement pipes.

FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
