PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW
PVC 45° ELBOW

PVC 45° ELBOW

UDRN001
Light weight, convenient handling: small density, convenient handling, loading and construction.
Excellent corrosion resistance: It has excellent acid resistance, alkali resistance and corrosion resistance, and is very suitable for use in the chemical industry.
Low fluid resistance: the inner wall of the pipe is smooth, its roughness coefficient is only 0.009, and the fluid resistance is small, which effectively improves the hydraulic conditions of the pipe network and reduces the system operating costs.

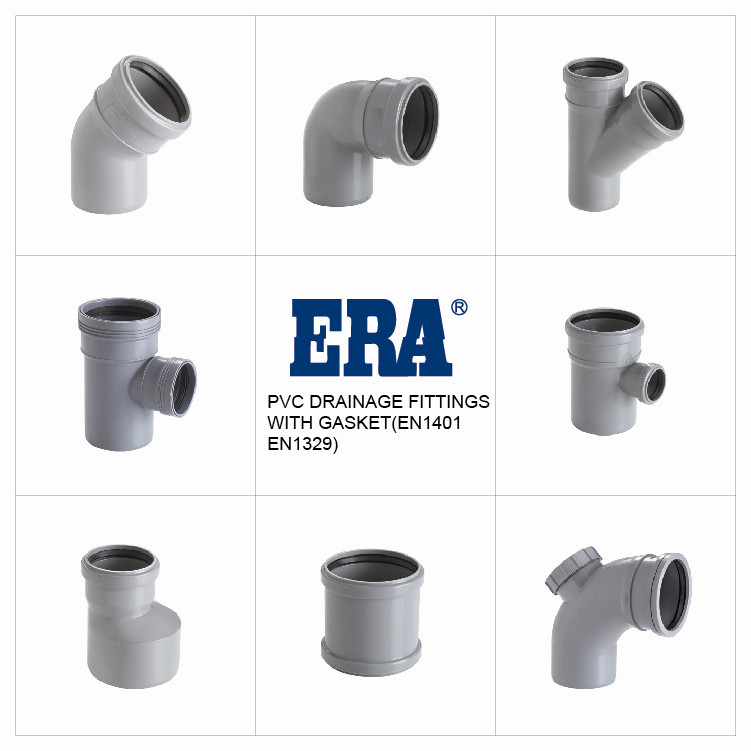

PVC DRAINAGE FITTINGS WITH GASKET

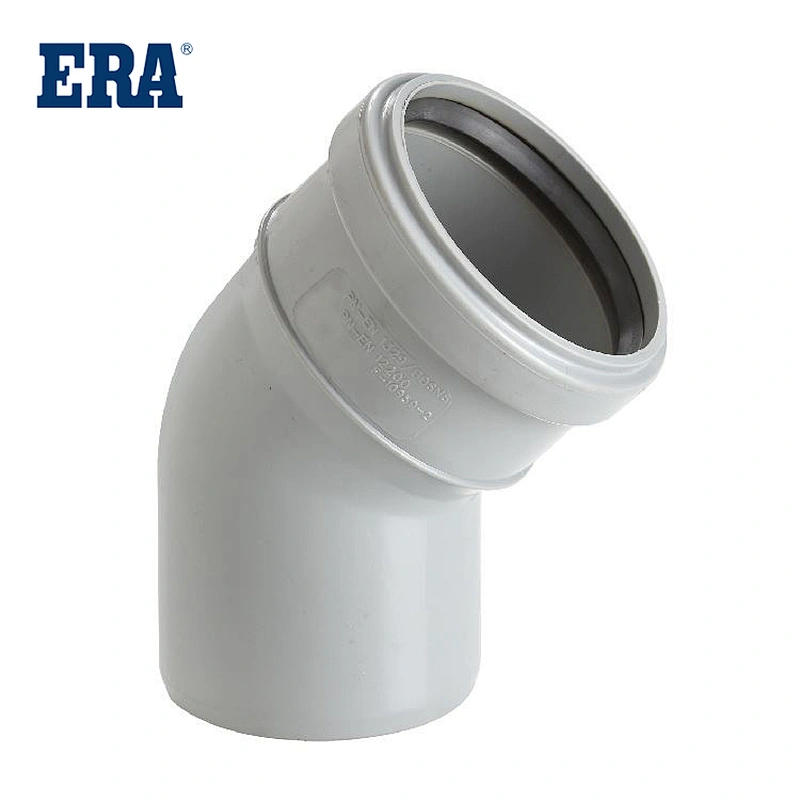

ERA EN1401 EN1329 PVC DRAINAGE FITTINGS 45° ELBOW WITH SINGLE END RUBBER RING

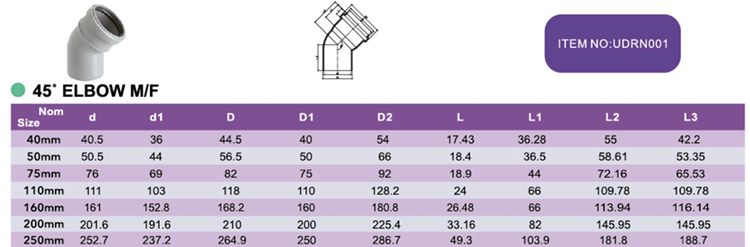

Specification：
Model NumberUDRN001MaterialPVC
Description
PVC DRAINAGE FITTINGS 45° ELBOW
Size40-250MM
StandardEN1401 EN1329ColorGrey
Working PressurePN16,16 Bar,1.6MpaTemperatureMax 60°C / 140°F
ConnectionSocketCertificateCE

Main Products：
The advantages of pvc water pipe
(1) It has good tensile and compressive strength, but its flexibility is not as good as other plastic pipes.
(2) The wall of pvc pipe is very smooth, and the resistance to fluid is very small.
(3) pvc pipe has excellent acid resistance, alkali resistance and corrosion resistance. It is not affected by moisture and soil pH. It does not need any anti-corrosion treatment when the pipe is laid.
(4) Whether the installation of pvc pipe is connected by adhesive or rubber ring, it has good water tightness.
(5)pvc pipe is not a nutrient source and will not be eroded by animals.

The main features of PVC drainage pipes are：
1. Lightweight: The specific gravity of the material is only 1/10 of cast iron, making transportation and installation easy and reducing costs.
2. Excellent chemical resistance: It has excellent acid and alkali resistance (except for strong acids and bases close to the saturation point or strong oxidizing chemicals).
3. Non-conductive: The material cannot conduct electricity and is not corroded by electrolysis or current.
4. It cannot burn and does not support combustion: there are no fire protection concerns.
5. Easy installation and low cost: cutting and connection are very simple, using PVC glue for connection, which is reliable, safe, easy to operate and low cost.
6. Durable: It has excellent weather resistance and cannot be corrupted by bacteria and fungi.
7. Small resistance and high circulation rate: the inner wall is smooth, the fluid fluidity loss is small, dirt is not easy to adhere to the smooth pipe wall, and maintenance is relatively simple and low-cost.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
