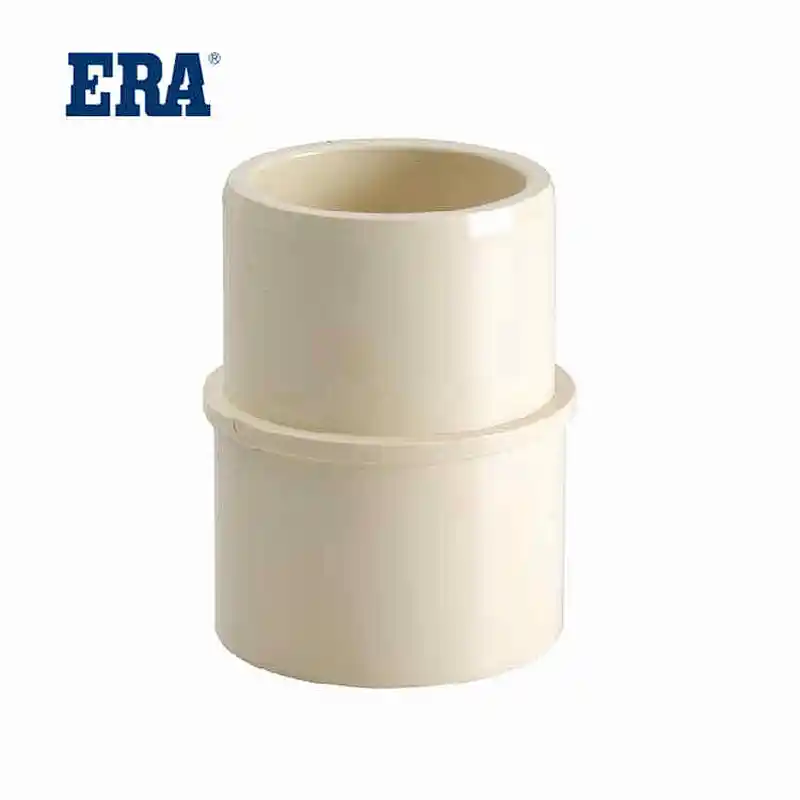

TRANSITION BUSH(ASTM2846 TO SCH80)
TRANSITION BUSH(ASTM2846 TO SCH80)
TRANSITION BUSH(ASTM2846 TO SCH80)
TRANSITION BUSH(ASTM2846 TO SCH80)
TRANSITION BUSH(ASTM2846 TO SCH80)
TRANSITION BUSH(ASTM2846 TO SCH80)
TRANSITION BUSH(ASTM2846 TO SCH80)
TRANSITION BUSH(ASTM2846 TO SCH80)
TRANSITION BUSH(ASTM2846 TO SCH80)
TRANSITION BUSH(ASTM2846 TO SCH80)
TRANSITION BUSH(ASTM2846 TO SCH80)

TRANSITION BUSH(ASTM2846 TO SCH80)

CPAS05
CPVC power pipe has the advantages of corrosion resistance, aging resistance, no scaling, small activity resistance, low thermal conductivity, good insulation function, construction equipment and repair convenience, etc. It is widely used in electricity and optical cable protection, village building, agricultural drainage and irrigation and other construction, industry and agriculture.After long-term use, CPVC pipes will not be affected by residual chlorine in water and will not have cracks and leaks.
CPVC CTS PIPES AND FITTINGS
ERA Piping Systems, CPVC Pipe Fitting ,TRANSITION BUSH(ASTM2846 TO SCH80) ,CPAS05, CTS (ASTM 2846) , NSF-pw & UPC

System：
ERA CPVC has a rated working pressure of 100 PSI at 180 degrees Fahrenheit and 400 PSI at 73 degrees Fahrenheit.

Scope：
The CPVC pipe has comparable corrosion resistance to PVC pipe yet it is suitable for handling corrosive material at temps 40 to 60 deg F higher than PVC.

Strongest in integration：
Intelligent pipe-net system,non-excavation repairing technique,etc, to break the monopoly of foreign technology.

Winning 148 state-authorized patents( 15 invention patents). Patent technology covers 80% of the product and process technology.

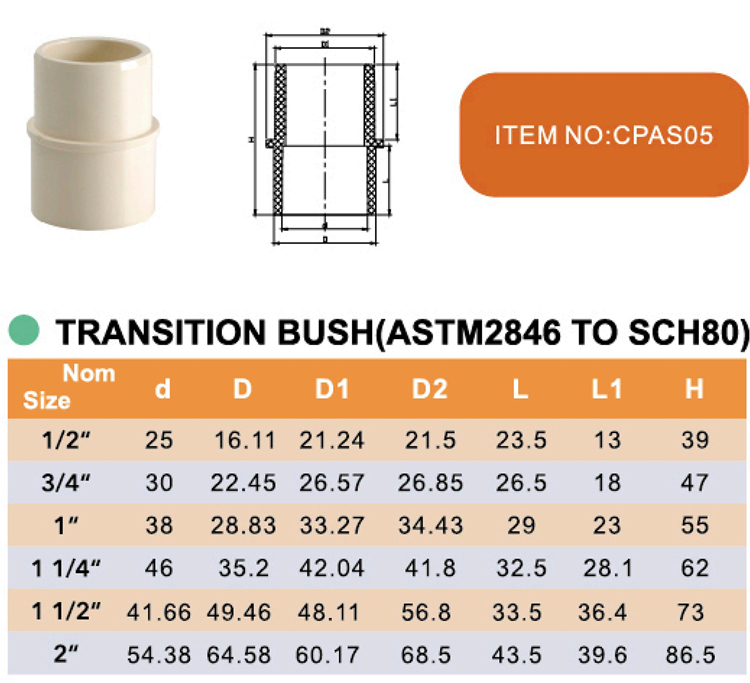

Specification：
Model NumberCPAS05MaterialCPVC
DescriptionTRANSITION BUSH(ASTM2846 TO SCH80)Size1/2''-2''
StandardCTS / ASTM D2846ColorIvory color
BrandERATemperatureMax82.2°C / 180°F
ConnectionSocket or ThreadCertificateNSF、UPC

Main Products：
CPVC is before an application is broad new engineering plastics, resin by JuAnYiXi oxide modified PVC) resin system, is a new kind of engineering plastics. The product is white or light yellow odorless non-toxic loose collar granules or powder. pvc resin after chlorination molecular bond irregularity increase polarity increase fat solubility increase, chemical stability at the same time also increase the heat resistance of the material and acid salt reduction oxidant wide corrosion. The oxygen content increased from 567% to 63-69%, and the softening temperature of Vica increased from 72-82℃. Increase to 190-125℃, the highest use temperature can reach 110℃. Long-term use temperature is 95℃.

Characteristics of CPVC pipes：
1. Wide operating temperature range: -40℃-95℃;
2. Has good strength and toughness;
3. Has good chemical corrosion resistance;
4. The flame retardant property is self-extinguishing;
5. Low thermal conductivity, about 1/200 of steel;
6. The heavy ion content in the medium reaches the ultrapure water standard;
7. The hygienic performance meets the requirements of national hygienic standards;
8. The pipe wall is clean and smooth: it has small friction resistance and adhesion when transporting fluid;
9. Light weight: equivalent to 1/5 of steel pipe and 1/6 of steel pipe;
10. Easy to install: can be connected by bonding, threading, welding, etc.;
11. Excellent aging resistance and UV resistance, long normal service life.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
