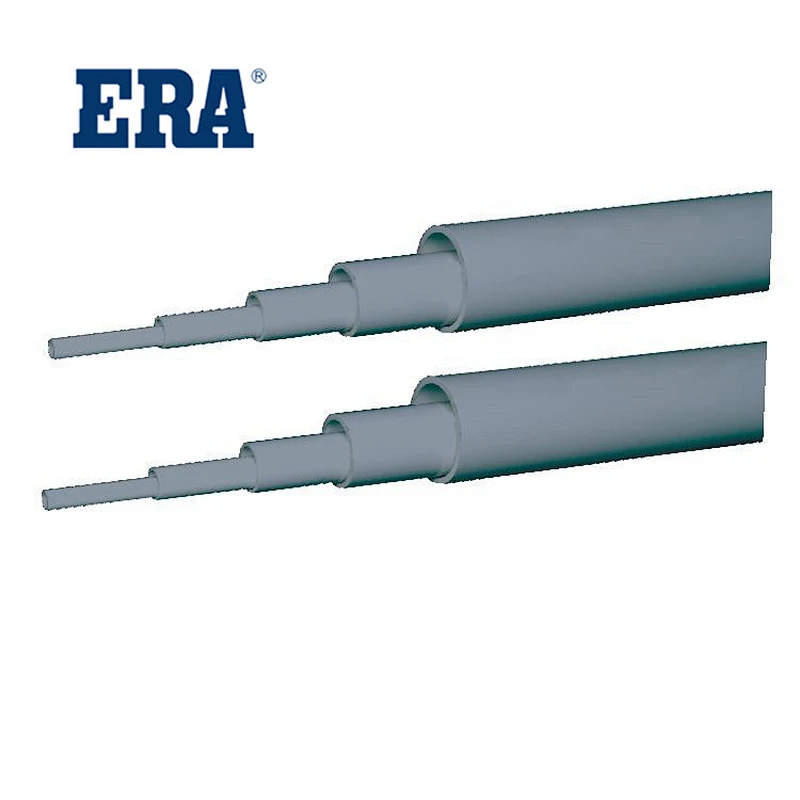

ERA ASTM F439 full size CPVC Pressure pipes for hot and cold
ERA ASTM F439 full size CPVC Pressure pipes for hot and cold
ERA ASTM F439 full size CPVC Pressure pipes for hot and cold
ERA ASTM F439 full size CPVC Pressure pipes for hot and cold
ERA ASTM F439 full size CPVC Pressure pipes for hot and cold
ERA ASTM F439 full size CPVC Pressure pipes for hot and cold
ERA ASTM F439 full size CPVC Pressure pipes for hot and cold
ERA ASTM F439 full size CPVC Pressure pipes for hot and cold
ERA ASTM F439 full size CPVC Pressure pipes for hot and cold
ERA ASTM F439 full size CPVC Pressure pipes for hot and cold
ERA ASTM F439 full size CPVC Pressure pipes for hot and cold

ERA ASTM F439 full size CPVC Pressure pipes for hot and cold

CPSP01
From ERA brand in China, ASTM F439 can be applied to hot and cold water pipes in sizes from 1/2 "to 6".
1. Sturdy: Since PVC-C is stronger than PP-R, PB and PEX, it requires fewer hooks and brackets. PVC-C can withstand greater pressure. At the same flow rate, compared with PP-R, PB and PEX pipes, PVC-C pipes can use smaller diameters. 2. Easy to install: It can be connected using special fusing agent, and no special tools are needed during installation. It is suitable for both surface and concealed installation. 3. Corrosion resistance: PVC-C is not easily permeable to oxygen, so the metal parts in the system will not corrode due to oxidation. 4. Good flame retardancy: The oxygen index of PVC-C is 60, its combustion ability is very low, it extinguishes immediately after leaving the fire, will not produce fire droplets, and can suppress the generation of smoke and toxic gases. 5. Not affected by residual water: Unlike polyhydrocarbon pipes, PVC-C pipes are not affected by residual water and will not crack or collapse after long-term use. 6. Alkali resistance: PVC-C has strong anti-corrosion ability against both alkali and alkali, and can be used to transport HCL and NaOH liquids.
Product Description
ERA  PRESSURE PIPES CPVC SCH80 PIPES AND FITTINGS
System：CPVC pipe System
Scope：CPVC can withstand corrosive water at temperatures greater than PVC,typically by 40-50°C（104-122°F）or higher,contributing to its popularity as a material for water-piping systems in residential and commercial construction.CPVC maximal operating temperature peaks at 200°F(93°C).
Specification: CPVC is readily workable,including machining,welding,and forming.Because of its excellent corrosion resistance at elevated temperatures,CPVC is ideally suited for self-supporting construction where temperatures up to 200°F(93°C) are present.The ability to bend,shape,andweld CPVC enables its use in a wide variety of precesses and applications.It exhibits fire-retardant properties.
Characteristic：
1. Good size stability
2. Low cost
3. Good weather resistance
4. With different proportions of plasticizer, can easily adjust the softness and hardness
Referenced Standards：ASTM F439
Model Number
CPSP01
Material
CPVC
Description
PRESSURE PIPES

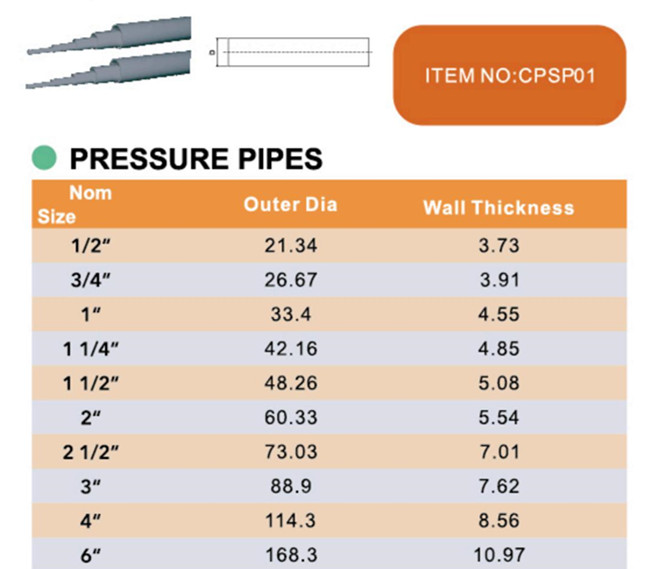

Size
1/2''-6''
Standard
SCH80、ASTM F439
Color
light grey
Brand
ERA
Temperature
40-50°C（104-122°F）

PIPES

Main Products：

Characteristics of CPVC pipes:
1. Wide operating temperature range: -40℃-95℃;
2. Has good strength and toughness;
3. Has good chemical corrosion resistance;
4. The flame retardant property is self-extinguishing;
5. Low thermal conductivity, about 1/200 of steel;
6. The heavy ion content in the medium reaches the ultrapure water standard;
7. The hygienic performance meets the requirements of national hygienic standards;
8. The pipe wall is clean and smooth: it has small friction resistance and adhesion when transporting fluid;
9. Light weight: equivalent to 1/5 of steel pipe and 1/6 of steel pipe;
10. Easy to install: can be connected by bonding, threading, welding, etc.;
11. Excellent aging resistance and UV resistance, long normal service life.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.

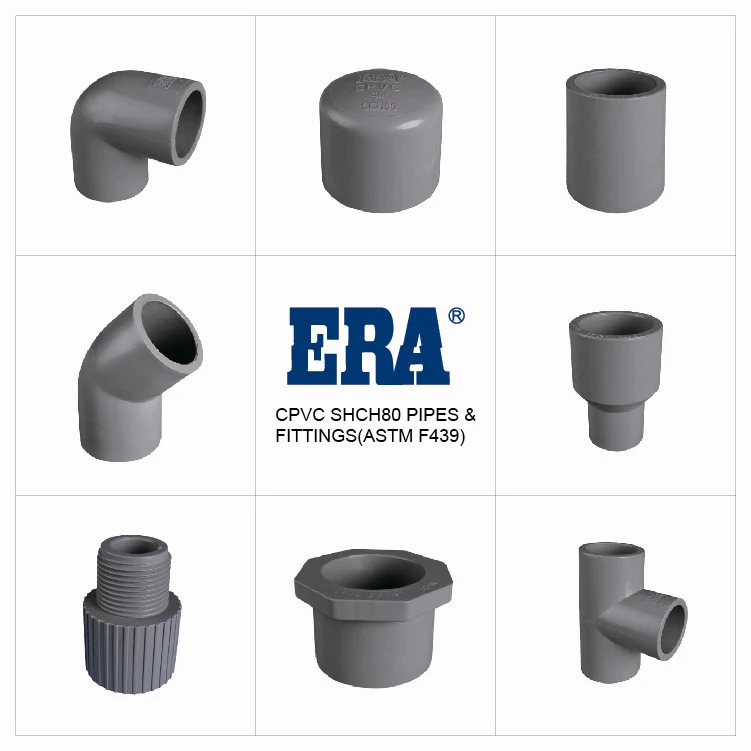

Related Products
