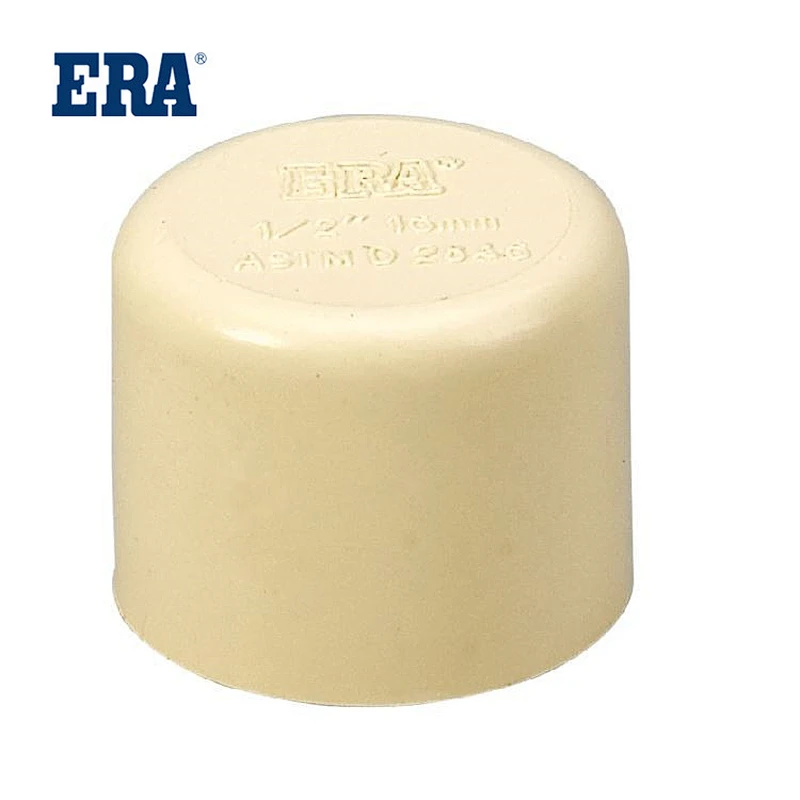

CPA003
1. CPVC pipes are mainly made of PVC-C resin with excellent heat resistance and insulation properties. CPVC products are recognized as green and environmentally friendly products, and their excellent physical and chemical properties are attracting more and more attention in the industry.
2. The heat resistance temperature of CPVC pipe is 15 ℃ higher than that of ordinary UPVC double wall corrugated pipe, and it has sufficient strength.
3CPVC material, because its chlorine content is significantly higher than PVC, its flame retardancy and smoke density index are significantly improved
4CPVC pipe is light in weight, high in strength, simple in construction and laying method, convenient and fast in installation and connection, and good in connection and sealing performance.
5CPVC pipe material is corrosion resistant, anti-aging and has a service life of more than 50 years.

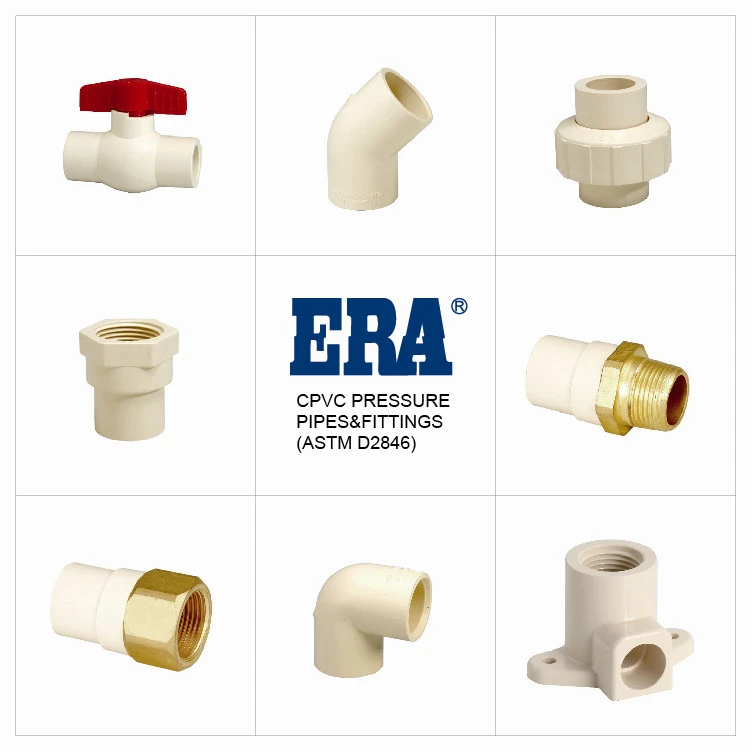

CPVC CTS PIPES AND FITTINGS
ERA Piping Systems, CPVC Pipe Fitting ,CPVC PRESSURE PIPES, END CAP , CPA003, CTS (ASTM 2846) , NSF-pw & UPC

System：CPVC Copper Tube Size (CTS) Hot and Cold Domestic Water Distribution

Specification：It is lightweight, easy to assemble and install. Job-site erection of a leakproof joint can be made in only a minute with solvent cement, or by threading.

Technology：In July,2014, Yonggao Research Institue was officially put into use with total investment of 35 million RMB, six-storey design of over 5000 square meters. Now Yonggao has set up independent research system in joint with Shanghai, Anhui,Guangdong ,and Tianjin branches.

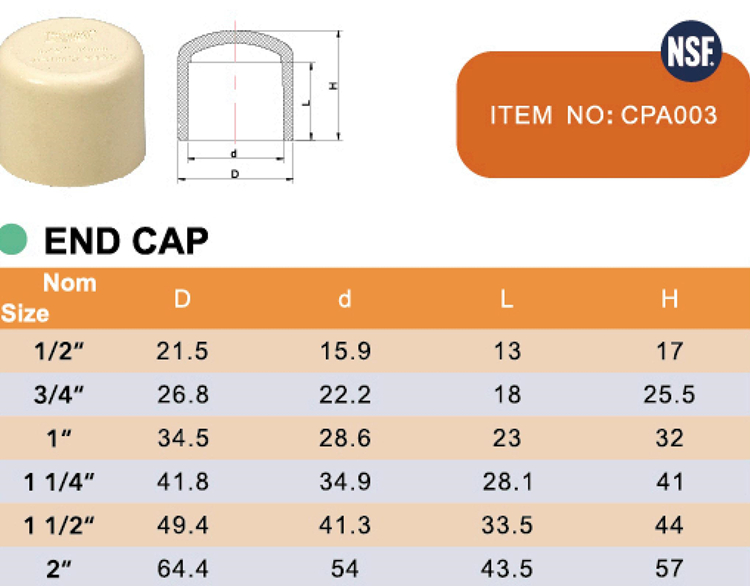

Specification：
Model NumberCPA003MaterialCPVC
DescriptionCPVC END CAP Size1/2''-2''
StandardCTS / ASTM D2846ColorIvory color
BrandERATemperatureMax82.2°C / 180°F
ConnectionSocket or ThreadCertificateNSF、UPC
Main Products：
CPVC is a new type of engineering plastics with broad application prospect. The resin is a new type of engineering plastic made by chlorination modification of polyvinyl chloride (PVC) resin. The product is white or light yellow tasteless, odorless, non-toxic loose particles or powder. After chlorination of PVC resin, the irregularity of molecular bonds increases, the polarity increases, the solubility of the resin increases, the chemical stability increases, thereby improving the heat resistance of the material, acid, alkali, salt, oxidant corrosion. The mechanical properties of the thermal deformation temperature of the resin were improved, the chlorine content was increased from 56.7% to 63-69%, the softening temperature of Vica was increased from 72-82 ℃ to 90-125 ℃, the maximum using temperature could reach 110 ℃, and the long-term using temperature was 95 ℃. CORZAN CPVC performance index is better.

Product advantages：
1. The pipe has excellent surface hardness and tensile strength.
2. It has good aging resistance and its normal service life can reach more than 50 years.
3. The pipeline has excellent corrosion resistance to inorganic acids, alkalis, and salts, and is suitable for industrial sewage discharge and transportation.
4. The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to be blocked, and the maintenance workload is small.
5. The material has a high oxygen index and is self-extinguishing.
6. The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and compared with cast iron drainage pipes, they have excellent freezing resistance.
7. Bonding can be used to connect pipes and pipe fittings. The construction method is simple, the operation is convenient, and the installation efficiency is high.
8. Good water tightness: PVC-U pipes have good water tightness regardless of whether they are connected by bonding or rubber rings.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
