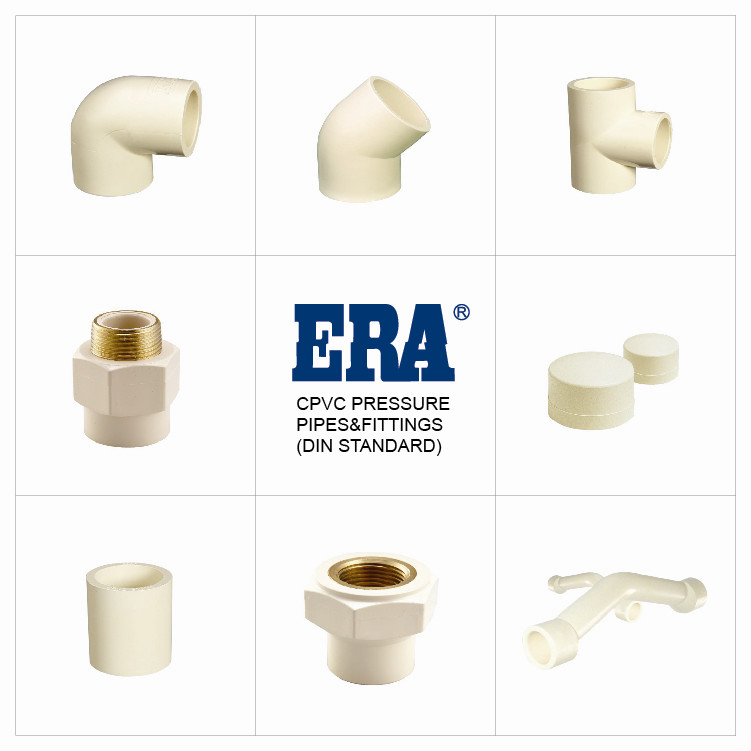

CPVC DIN PIPES AND FITTINGS

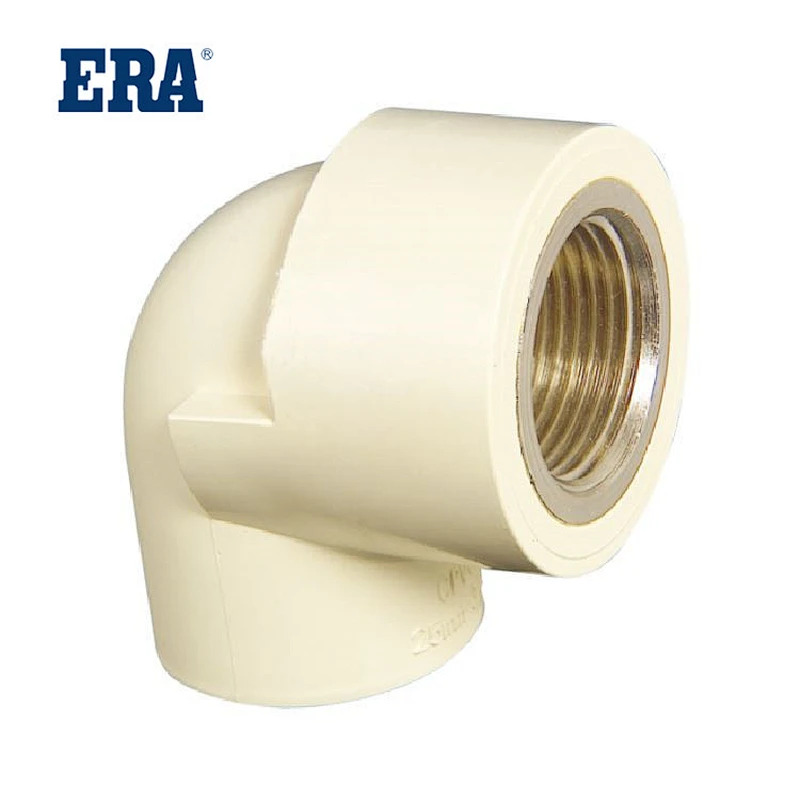

ERA Piping Systems, CPVC Pipe Fitting, ELBOW 90°ADAPTOR WITH BRASS INSERT, CP015, (DIN STANDARD), CESystem：
Chlorinated Polyvinyl Chloride (CPVC) has proven to be an excellent material for hot corrosive liquids, hot and cold water distribution, and similar applications above the temperature range of PVC. CPVC will not rust, pit, scale or corrode. CPVC fittings are easy to install and are joined by solvent cementing or threading. Because of its longstanding reputation for innovation and precision in design and manufacturing, ERA is the preferred brand in the industry.
PVC-C has an operational temperature range of 0°C - 80°C (32°F - 176°F), which is suitable for high temperature environments. The excellent mechanical characteristics, high tensile strength, stiffness, and impact strength are evident even at increased temperatures.
Scope：
Used to join straight lengths of CPVC tubing
PVC-C has an operational temperature range of 0°C - 80°C (32°F - 176°F), which is suitable for high temperature environments. The excellent mechanical characteristics, high tensile strength, stiffness, and impact strength are evident even at increased temperatures.
Fields of application：
Hot and cold water distribution in residential, industrial and public buildings.
Paper and Pulp Iindustry

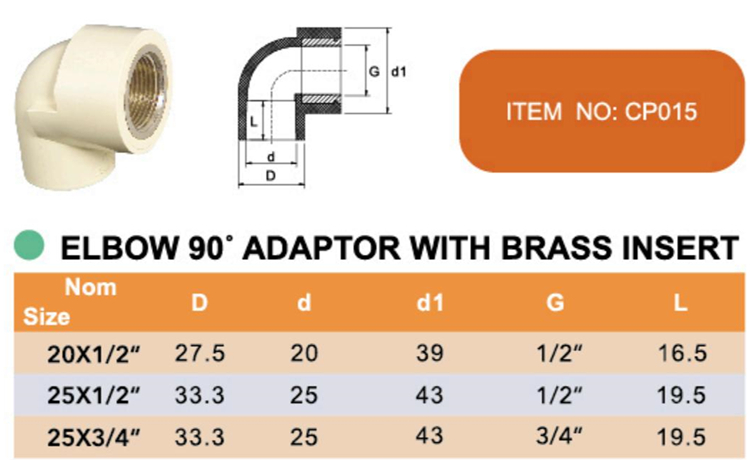

Specification：| Model Number | CP015 | Material | CPVC |
| Description | CPVC ELBOW 90°ADAPTOR WITH BRASS INSERT | Size | 20x1/2''-25x3/4'' |
| Standard | DIN8079 | Color | Ivory color |
| Working Pressure | PN16,16 Bar,1.6Mpa | Temperature | Max 82.2℃ / 180°F |
| Connection | Socket or Thread | Certificate | CE |
Characteristics of CPVC pipes：
1. Wide operating temperature range: -40℃-95℃;
2. Has good strength and toughness;
3. Has good chemical corrosion resistance;
4. The flame retardant property is self-extinguishing;
5. Low thermal conductivity, about 1/200 of steel;
6. The heavy ion content in the medium reaches the ultrapure water standard;
7. The hygienic performance meets the requirements of national hygienic standards;
8. The pipe wall is clean and smooth: it has small friction resistance and adhesion when transporting fluid;
9. Light weight: equivalent to 1/5 of steel pipe and 1/6 of steel pipe;
10. Easy to install: can be connected by bonding, threading, welding, etc.;
11. Excellent aging resistance and UV resistance, long normal service life.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
