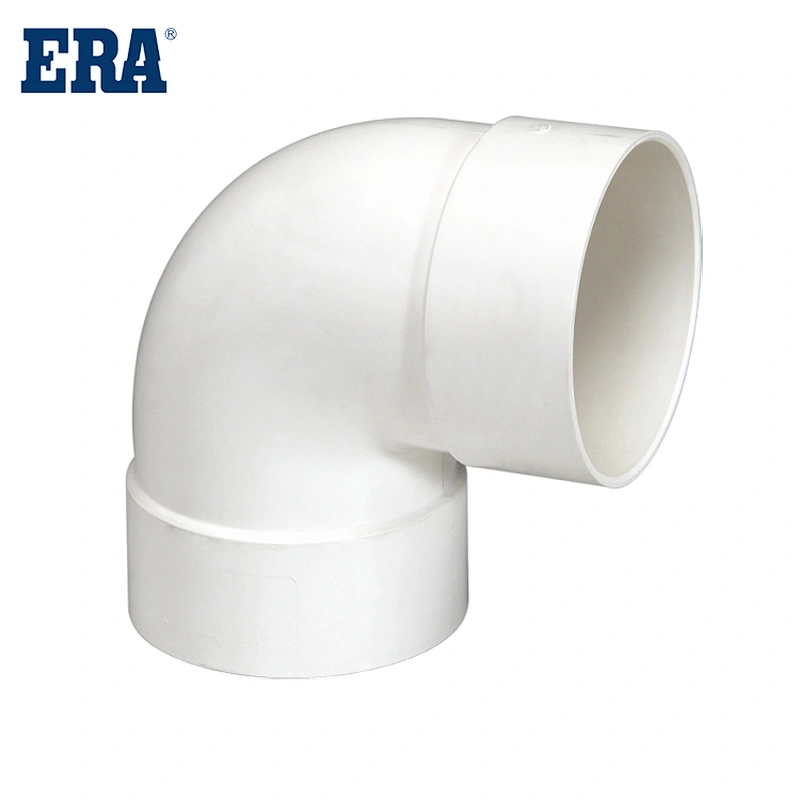

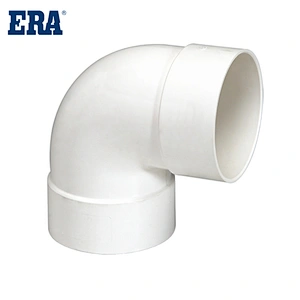

PVC Sanitary Solvent Cement,90° Elbow
PVC Sanitary Solvent Cement,90° Elbow
PVC Sanitary Solvent Cement,90° Elbow
PVC Sanitary Solvent Cement,90° Elbow
PVC Sanitary Solvent Cement,90° Elbow
PVC Sanitary Solvent Cement,90° Elbow
PVC Sanitary Solvent Cement,90° Elbow
PVC Sanitary Solvent Cement,90° Elbow
PVC Sanitary Solvent Cement,90° Elbow
PVC Sanitary Solvent Cement,90° Elbow
PVC Sanitary Solvent Cement,90° Elbow

PVC Sanitary Solvent Cement,90° Elbow

UDLE01
1. Pvc drainage pipe has good tensile and compressive strength, but its flexibility is not as good as other plastic pipes.
2. The wall of PVC drainage pipe is very smooth, so the resistance of water flow is very small. Its water delivery capacity is 20% higher than that of cast iron pipe with the same pipe diameter, and the water delivery effect is very good.
3. In addition, the corrosion resistance and drug resistance of pvc drainage pipe are also very good, with good acid and alkali resistance characteristics. It is not affected by moisture and soil pH, and has a long service life.
4. Pvc drainage pipe also has good water tightness. this pipe can maintain good water tightness whether it is connected by adhesive or rubber ring.
5. Pvc drainage pipe has good tensile and thermal stability, and can adapt to different environments.
6.Excellent chemical resistance: excellent acid and alkali resistance (except for strong acid and alkali near saturation point or strong oxidizing chemicals).

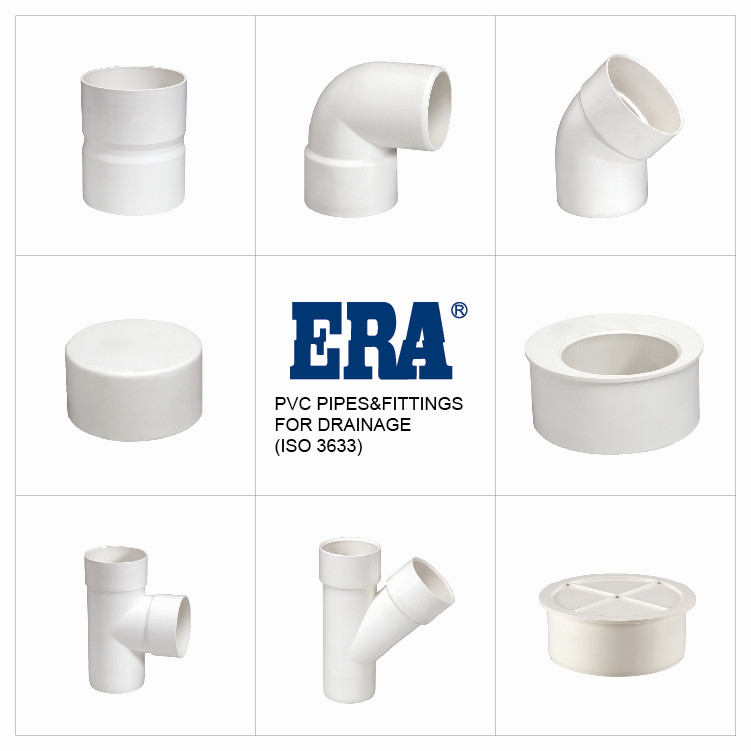

PVC DRAINAGE FITTINGS
ERA Piping Systems, PVC Sanitary Solvent Cement, 90° ELBOW, UDLE01, (ISO3633), CE

Scope：

Our comprehensive line of sewer and drain fittings includes valves, couplings, and connectors in PVC

Specification：Pipe and fittings shall be manufactured from virgid

PVC(polyvinyl chloride) vinyl compounds.

The international standard specifies the requirements for unplasticized poly(vinyl chloride) (PVC-U) pipes and fittings for soil and waste discharge (low and high temperature) inside buildings, as well as the system itself. It does not include buried pipework.

Advanced production management system
Carry out ERP system and Lean Production Project. Achieving process data automatically set ,collected, analysed together with the accurate ,digital and automatic management of the production schedule , production statistics and equipment management.Thus promoting transformation and upgrading of our company with management and technology innovation

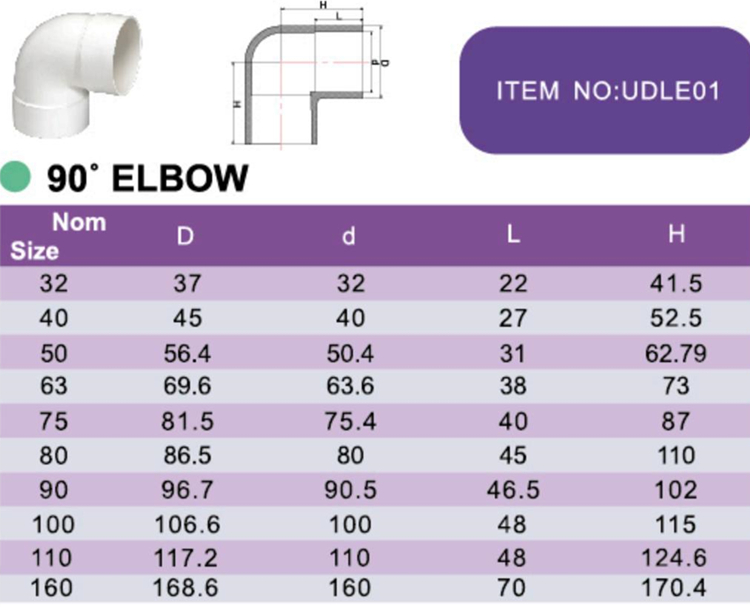

Specification：
Model NumberUDLE01MaterialPVC
DescriptionPVC DRAINAGE FITTINGS 90° ELBOWSize32-160MM
StandardISO3633ColorGrey
Working PressurePN16 16Bar 1.6MpaTemperatureMax 60°C / 140°F
ConnectionSolvent CementCertificateCE


Main products：
Elbows and seamless elbows in PVC chemical pipe fittings are often used in the bending part of the pipeline to change the direction of the pipeline. Commonly used are 45° elbow and 90° elbow, bending radius of about 1.0 times the outside diameter of the pipe is called short radius elbow, about 1.5 times the outside diameter of the pipe is called long radius elbow.

In the piping system layout, it is generally appropriate to choose the long radius elbow connection, short radius elbow is usually used in the pipe system installation position is more compact or to reduce costs. When a short radius elbow is used, the higher working pressure should not be greater than 0.8 times of the long radius elbow of the same specification. Miter elbows in PVC chemical pipe fittings are usually used in large size pipes with low pressure, water and similar fluid medium conditions. When the single section of miter elbow variable direction Angle is greater than 45°, it is not suitable for toxic, combustible medium pipelines, or pipelines subjected to vibration, pressure pulsation and alternating load due to temperature change.

Product advantages：
PVC pipe
1. The surface hardness and tensile strength of the pipe are excellent, and the pipeline safety factor is high.
2. It has good aging resistance and its normal service life can reach more than 50 years.
3. The pipeline has excellent corrosion resistance to inorganic acids, alkalis, and salts, and is suitable for industrial sewage discharge and transportation.
4. The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to be blocked, and the maintenance workload is small.
5. The material has a high oxygen index and is self-extinguishing.
6. The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and compared with cast iron drainage pipes, they have excellent freezing resistance.
7. Bonding can be used to connect pipes and pipe fittings. The construction method is simple, the operation is convenient, and the installation efficiency is high.
8. Good water tightness: PVC-U pipes have good water tightness regardless of whether they are connected by bonding or rubber rings.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
