PVC Sanitary Solvent Cement,Tee
PVC Sanitary Solvent Cement,Tee
PVC Sanitary Solvent Cement,Tee
PVC Sanitary Solvent Cement,Tee
PVC Sanitary Solvent Cement,Tee
PVC Sanitary Solvent Cement,Tee
PVC Sanitary Solvent Cement,Tee
PVC Sanitary Solvent Cement,Tee
PVC Sanitary Solvent Cement,Tee
PVC Sanitary Solvent Cement,Tee
PVC Sanitary Solvent Cement,Tee

PVC Sanitary Solvent Cement,Tee

UDLT04
1. Pvc drainage pipe has good tensile and compressive strength, but its flexibility is not as good as other plastic pipes.
2. The wall of PVC drainage pipe is very smooth, so the resistance of water flow is very small. Its water delivery capacity is 20% higher than that of cast iron pipe with the same pipe diameter, and the water delivery effect is very good.
3. In addition, the corrosion resistance and drug resistance of pvc drainage pipe are also very good, with good acid and alkali resistance characteristics. It is not affected by moisture and soil pH, and has a long service life.
4. Pvc drainage pipe also has good water tightness. this pipe can maintain good water tightness whether it is connected by adhesive or rubber ring.
5. Pvc drainage pipe has good tensile and thermal stability, and can adapt to different environments.

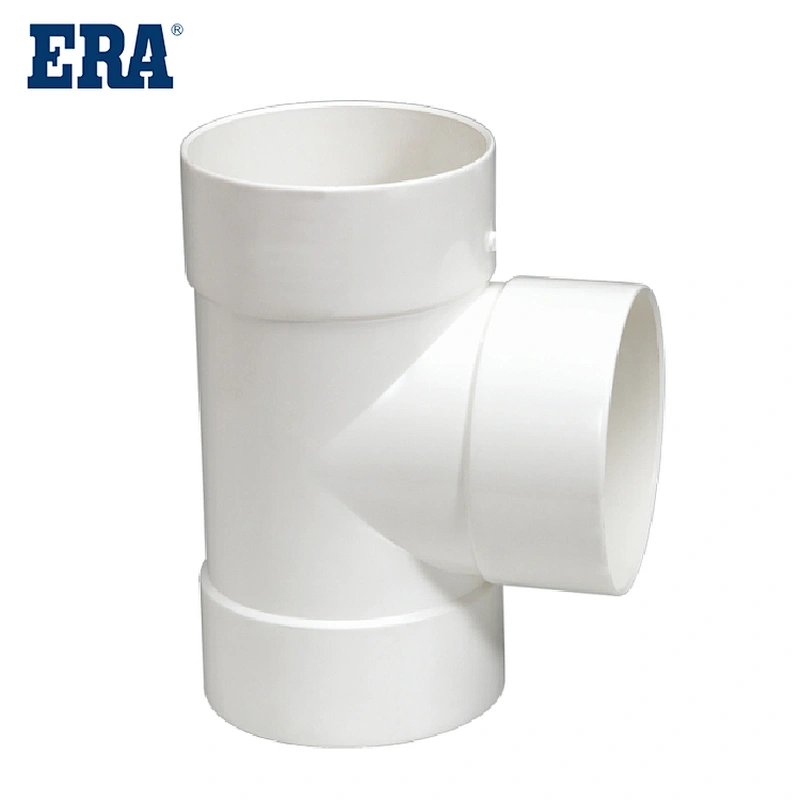

PVC DRAINAGE FITTINGS
ERA Piping Systems, PVC Sanitary Solvent Cement, TEE, UDLS03, (ISO3633), CE

System：

PVC Sanitary Solvent Cement Fitting System

Plastics piping systems for soil and waste discharge (low and high temperature) inside buildings

High flow capacity, corrosion resistance, low installation costs, long service time.

PVC is lightweight and easy to install. They require no special tools for cutting, and be installed with solvent cementing, threading, flanging, and roll-grooved joining.

Polyvinyl chloride (PVC) is the most frequently specified of all thermoplastic materials because of its light weight, durability, and cost-effectiveness.

Specification：

additionally conform to the requirements of an impact test (staircase method),

For the installation of pipes and fittings conforming to this International Standard, national and/or local requirements and relevant codes of practice shall apply.

The raw material shall be PVC-U to which are added those additives that are needed to facilitate the manufacture of components conforming to the requirements of this International Standard.

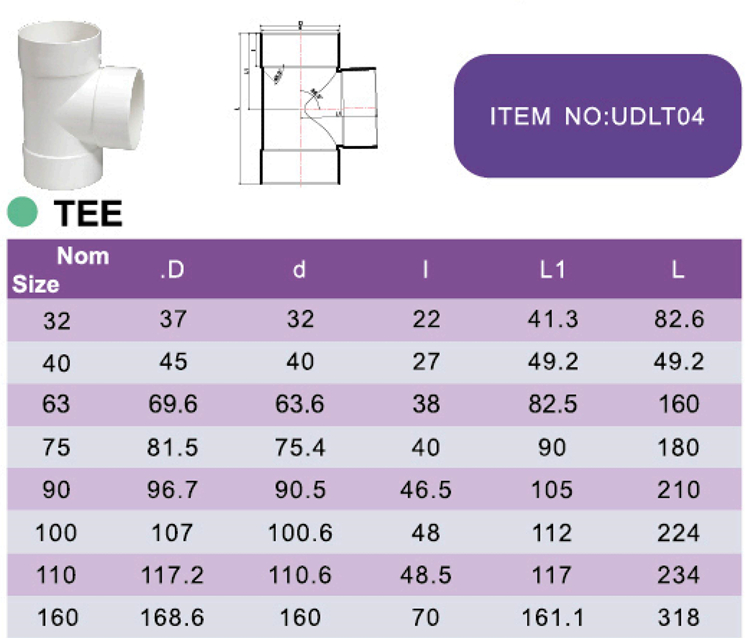

Model NumberUDLT04MaterialPVC
DescriptionPVC DRAINAGE FITTINGS TEE Size32-160MM
StandardISO3633ColorGrey
Working Pressure /TemperatureMax 60°C / 140°F
ConnectionSolvent CementCertificateCE

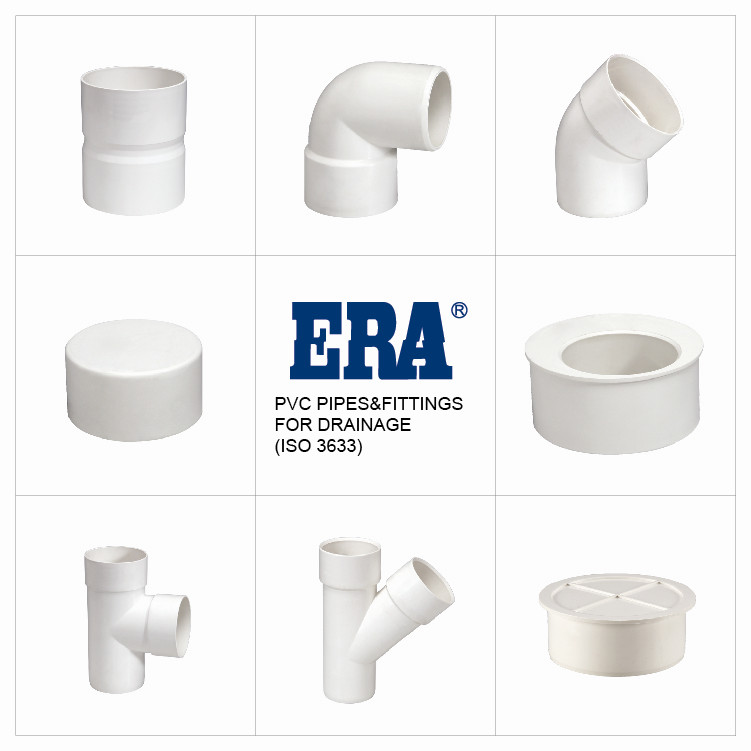

Main products：
pipe features
1, light weight, convenient transportation and handling:
1.South Asia PVC tube material is very light, handling, loading and unloading, construction is convenient, can save artificial.
2, excellent chemical resistance: South Asia PVC pipe with excellent acid and alkali resistance, corrosion resistance, for is quite suitable for the use of the chemical industry.
3, small fluid resistance, south of PVC pipe wall is smooth, small resistance of fluid, the roughness coefficient of only 0.009, is lower than other pipes, under the same flow rate, pipe diameter can be narrowed.
4, large mechanical strength: South Asia PVC pipe water pressure resistance strength, resistance to external pressure strength, resistance to impact strength are very good, suitable for all kinds of conditions of the piping engineering.
5, good electric insulation: South Asia PVC pipe full of excellent electrical insulation, suitable for wire, cable duct, piping and construction of the wire.
6, do not affect water quality: South Asia PVC pipes by dissolution test confirmed that does not affect the water quality, is the best choice for the tap water piping.
7, construction simple: South Asia the joint construction of PVC tube easy to quickly, so the project construction cost is low.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
