PVC Sanitary Solvent Cement,Tee M/f
PVC Sanitary Solvent Cement,Tee M/f
PVC Sanitary Solvent Cement,Tee M/f
PVC Sanitary Solvent Cement,Tee M/f
PVC Sanitary Solvent Cement,Tee M/f
PVC Sanitary Solvent Cement,Tee M/f
PVC Sanitary Solvent Cement,Tee M/f
PVC Sanitary Solvent Cement,Tee M/f
PVC Sanitary Solvent Cement,Tee M/f
PVC Sanitary Solvent Cement,Tee M/f
PVC Sanitary Solvent Cement,Tee M/f

PVC Sanitary Solvent Cement,Tee M/f

UDLT06
1. Pvc drainage pipe has good tensile and compressive strength, but its flexibility is not as good as other plastic pipes.
2. The wall of PVC drainage pipe is very smooth, so the resistance of water flow is very small. Its water delivery capacity is 20% higher than that of cast iron pipe with the same pipe diameter, and the water delivery effect is very good.
3. In addition, the corrosion resistance and drug resistance of pvc drainage pipe are also very good, with good acid and alkali resistance characteristics. It is not affected by moisture and soil pH, and has a long service life.
4. Pvc drainage pipe also has good water tightness. this pipe can maintain good water tightness whether it is connected by adhesive or rubber ring.
5. Pvc drainage pipe has good tensile and thermal stability, and can adapt to different environments.

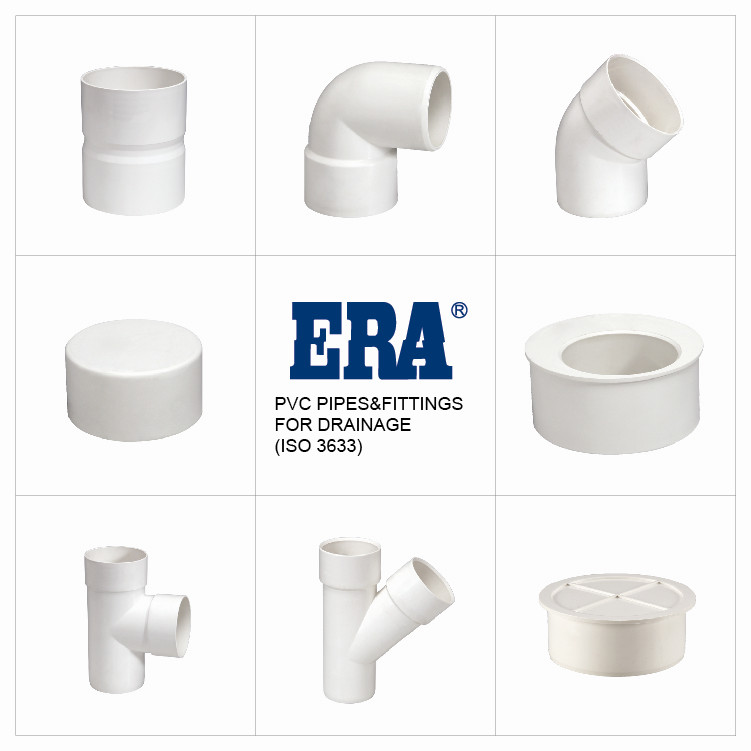

PVC DRAINAGE FITTINGS

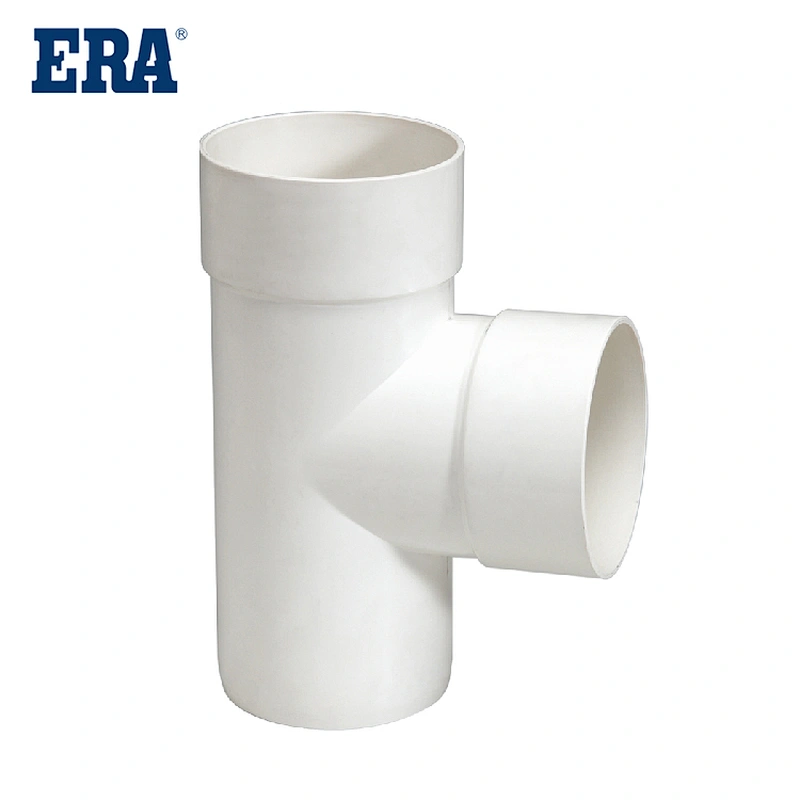

ERA Piping Systems, PVC Sanitary Solvent Cement, TEE M/F, UDLT06, (ISO3633), CE

Scope：

It is widely used in civil construction, drainage sewage, chemical drainage&sewage, rainwater and other fields.

Solvent Weld Fittings include tees, elbows, adapters, repair couplings, and reducer couplings manufactured from durable PVC

Specification：

Pipes intended to be used in areas where installation is usually carried out at temperatures below – 10 °C shall

additionally conform to the requirements of an impact test (staircase method),

Fields of application：

Piping networks for sewage in building.

Piping networks for piping system in water treatment plant.

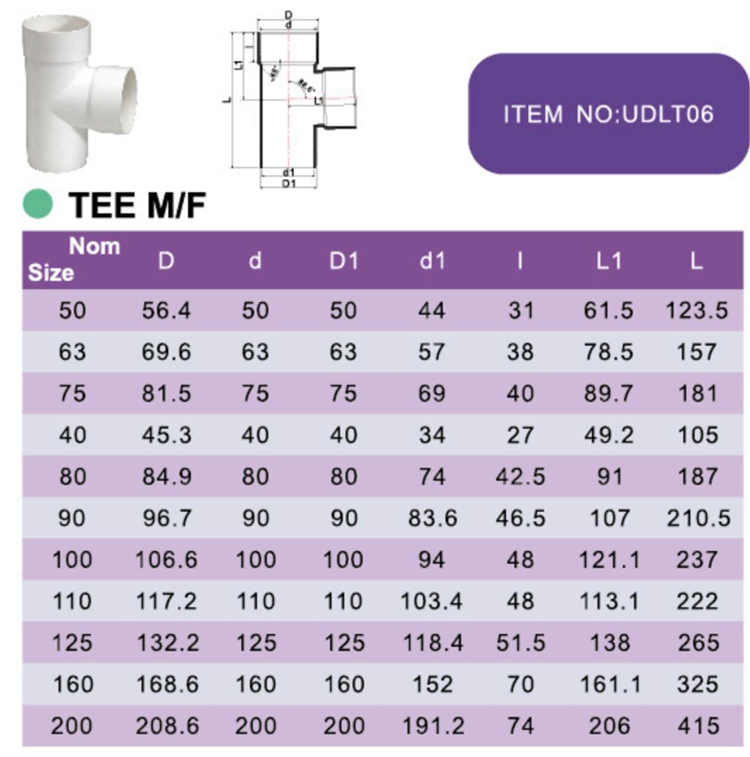

Specification：
Model NumberUDLT06MaterialPVC
DescriptionPVC DRAINAGE FITTINGS TEE M/FSize50-200MM
StandardISO3633ColorGrey
Working PressureTemperatureMax 60°C / 140°F
ConnectionSolvent CementCertificateCE

 Main Products：

Three way pipe as the name suggests is there are three openings, that is to say one inlet, two outlet; Or two imports and one export. A kind of chemical pipe fittings, T shape and Y shape, with equal diameter pipe mouth, also have reduced diameter pipe mouth, used for three same or different pipe convergence. Its main function is to redirect the fluid. Used to change the direction of the fluid, can be used in the pipeline, pipeline and a variety of liquid chemical material pipeline. Mainly used in medicine, water conservancy (water-saving irrigation, water supply and drainage), energy (oil, natural gas, nuclear industry), construction and other engineering fields.

Product advantages：
PVC pipe
1. The surface hardness and tensile strength of the pipe are excellent, and the pipeline safety factor is high.
2. It has good aging resistance and its normal service life can reach more than 50 years.
3. The pipeline has excellent corrosion resistance to inorganic acids, alkalis, and salts, and is suitable for industrial sewage discharge and transportation.
4. The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to be blocked, and the maintenance workload is small.
5. The material has a high oxygen index and is self-extinguishing.
6. The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and compared with cast iron drainage pipes, they have excellent freezing resistance.
7. Bonding can be used to connect pipes and pipe fittings. The construction method is simple, the operation is convenient, and the installation efficiency is high.
8. Good water-tightness: PVC-U pipes have good water-tightness regardless of whether they are connected by bonding or rubber rings.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
