UDLT01
1. Light weight: the proportion of the material is only 1/10 of that of cast iron. It is easy to transport and install, reducing the cost.
2. Excellent chemical resistance: excellent acid and alkali resistance (except for strong acid and alkali near saturation point or strong oxidizing chemicals).
3. Non conductive: The material cannot conduct electricity and is not corroded by electrolysis and current.
4. No combustion, no combustion support: no fire concerns.
5. Simple installation and low cost: cutting and connection are very simple, PVC glue connection is reliable and safe, easy to operate and low cost.
6. Durable: excellent weather resistance, and can not be corrupted by bacteria and fungi.
7. Low resistance and high flow rate: the inner wall is smooth, the fluid fluidity loss is small, the dirt is not easy to attach to the smooth pipe wall, and the maintenance is relatively simple and cheap.
PVC DRAINAGE FITTINGS

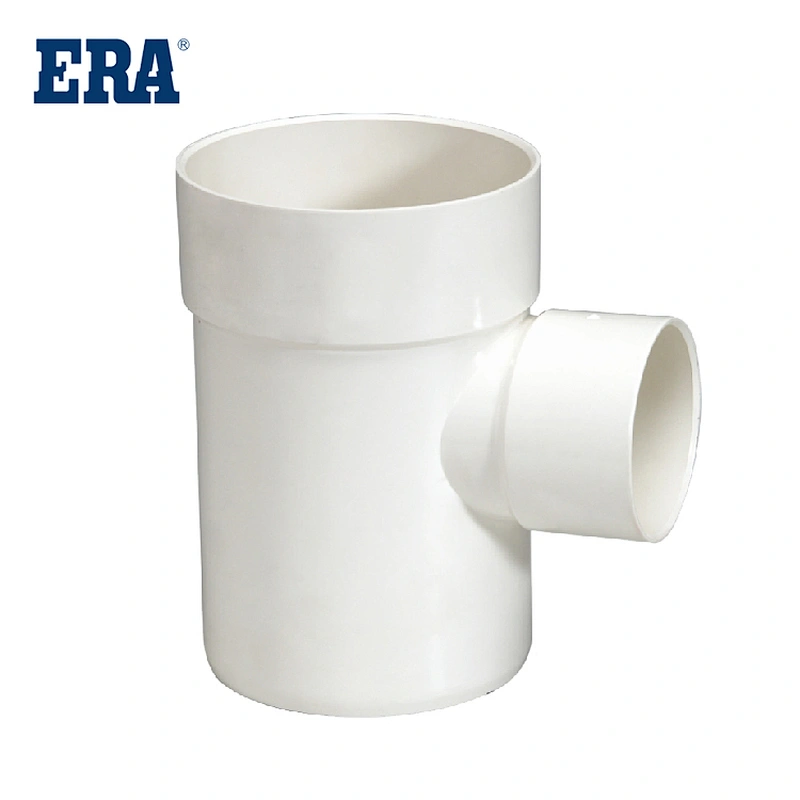

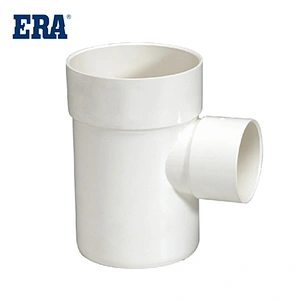

ERA Piping Systems, PVC Sanitary Solvent Cement, REDUCING TEE M/F, UDLT01, (ISO3633), CE

Head (reducer) is a kind of pipe fitting used for pipe diameter. Usually, the forming process is reduced-diameter pressing, expanded-diameter pressing or reduced-diameter plus expanded-diameter pressing, and some specifications of reducing pipes can also be formed by stamping. Reducing/expanding forming

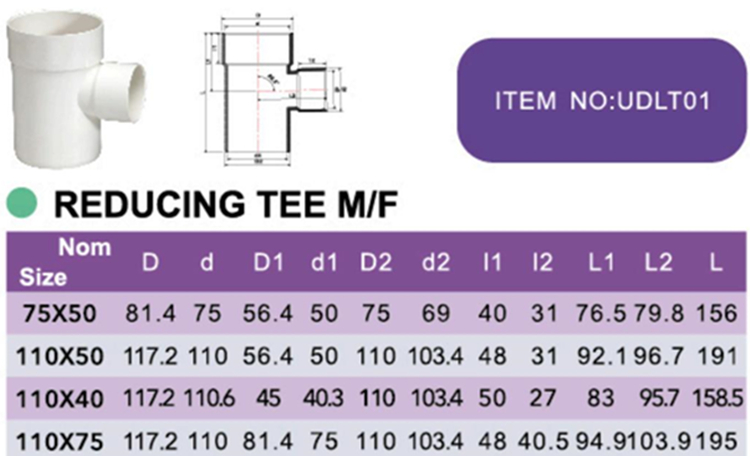

Specification：
Model NumberUDLT01MaterialPVC
DescriptionPVC DRAINAGE FITTINGS REDUCING TEE M/FSize75x50-110x75MM
StandardISO3633ColorGrey
Working PressurePN10 10Bar,1.0MpaTemperatureMax 60°C / 140°F
ConnectionSolvent CementCertificateCE

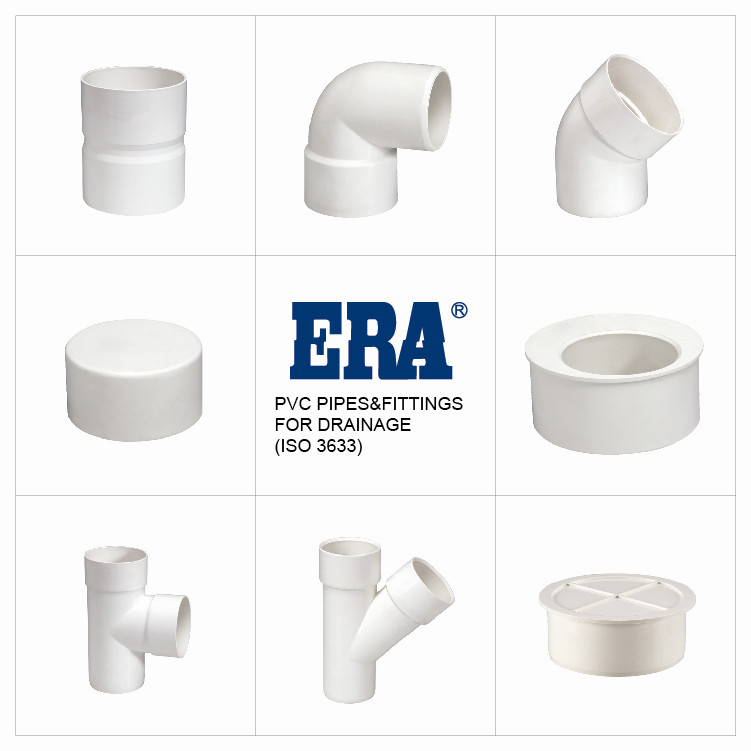

Main Products：
"The high-quality development of the plastic pipeline industry needs to open up the' pipeline' of innovation and standards, and use standard innovation to promote quality improvement."Wang Zhanjie suggested that under the new situation, China's plastic pipeline industry should continuously promote structural adjustment and accelerate industrial upgrading; Strengthen industry self-discipline and improve product quality; Implement innovative strategies to improve the competitiveness of the industry. In building a new pattern of high-quality development, the plastic pipeline industry should lead and create new demands with innovation-driven and high-quality supply, improve application adaptability, and contribute to people's better life.

Advantages of pvc water pipe

The use scope of PVC drainage pipe is very wide, in the drainage project of our country, the use of PVC drainage pipe is no less than PP drainage pipe material, its advantages have the following 5 points:

1. Light pipe and convenient construction. The PVC drain pipe uses the socket type dissolving interface, the pipe is relatively light, and the construction is convenient.

2, good drainage performance. PVC drainage pipe drainage performance is good, because PVC drainage pipe diameter is small, the use of small slope, which can increase the space net height, more favorable for users, enhance the use of the building function.

3, economic, beautiful. PVC drainage pipe is more beautiful, there is no cast iron pipe wall corrosion and fall off and other problems, can very well improve people's life, working environment, but also convenient for building property management.

4. Good social benefits. PVC drainage pipe can replace other steel drainage pipe, can greatly reduce the energy consumption in the process of steel making.

5. Excellent physical and chemical properties. PVC drainage pipe physical and chemical temperature, with strong corrosion resistance, anti-aging, wear resistance, long service life and other advantages.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
