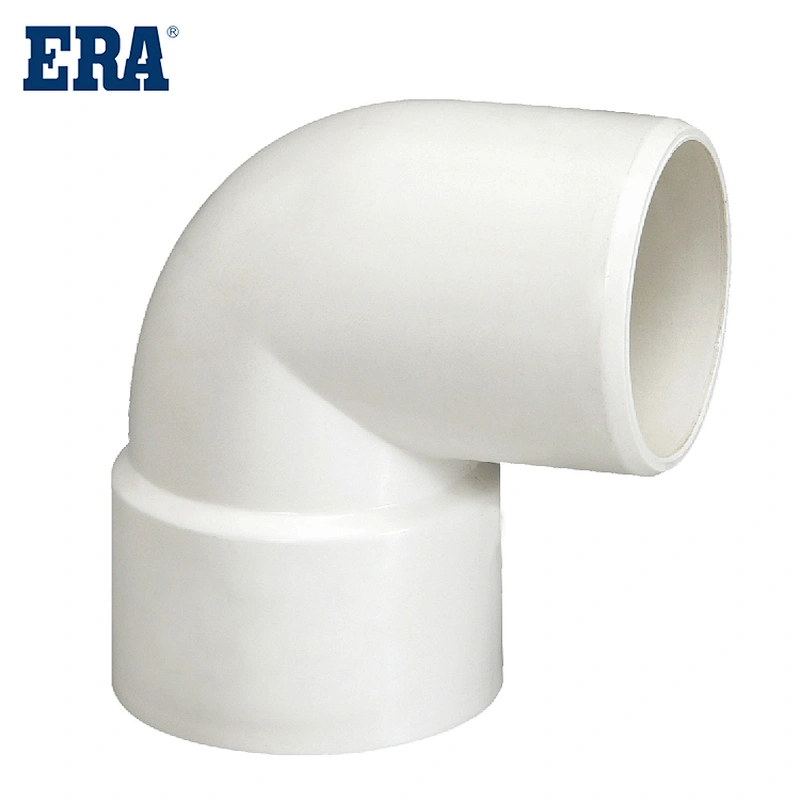

PVC Sanitary Solvent Cement, 90° Elbow M/f
PVC Sanitary Solvent Cement, 90° Elbow M/f
PVC Sanitary Solvent Cement, 90° Elbow M/f
PVC Sanitary Solvent Cement, 90° Elbow M/f
PVC Sanitary Solvent Cement, 90° Elbow M/f
PVC Sanitary Solvent Cement, 90° Elbow M/f
PVC Sanitary Solvent Cement, 90° Elbow M/f
PVC Sanitary Solvent Cement, 90° Elbow M/f
PVC Sanitary Solvent Cement, 90° Elbow M/f
PVC Sanitary Solvent Cement, 90° Elbow M/f
PVC Sanitary Solvent Cement, 90° Elbow M/f

PVC Sanitary Solvent Cement, 90° Elbow M/f

UDLE04
1. Light weight, convenient handling: small density, convenient handling, loading and construction.
2. Excellent corrosion resistance: It has excellent acid resistance, alkali resistance and corrosion resistance, and is very suitable for use in the chemical industry.
3. Low fluid resistance: the inner wall of the pipe is smooth, its roughness coefficient is only 0.009, and the fluid resistance is small, which effectively improves the hydraulic conditions of the pipe network and reduces the system operating costs.
4. High mechanical strength: the pipe has good pressure resistance, impact resistance and tensile strength.
5. Simple construction: the pipeline connection construction is fast and easy, and the construction cost is low.
6. Low cost: low price, convenient transportation and construction, long service life, so the overall cost is low.
7. No impact on water quality: It is confirmed by the dissolution test that it does not affect the water quality and is suitable for large-scale promotion and application.

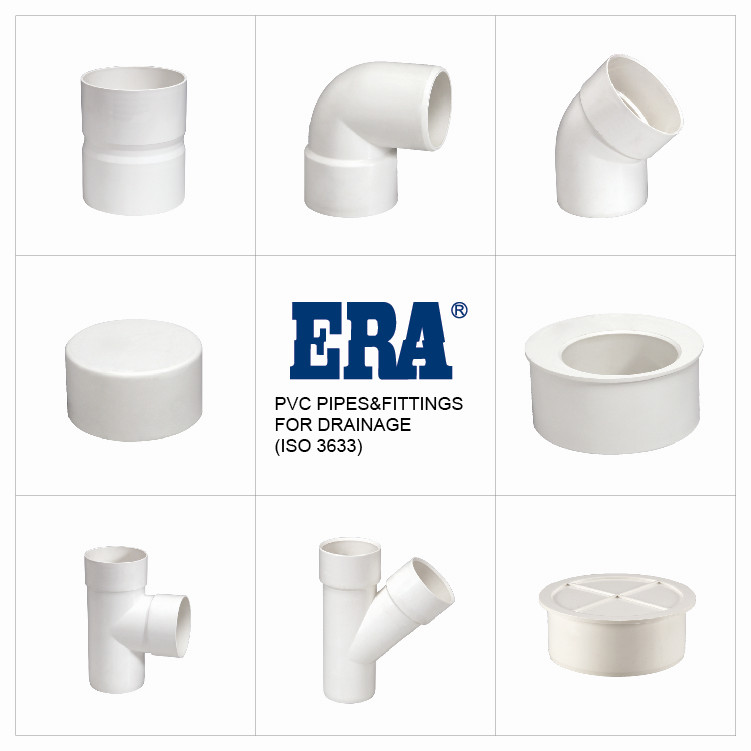

PVC DRAINAGE FITTINGS
ERA Piping Systems, PVC Sanitary Solvent Cement, 90° ELBOW M/F, UDLE04, (ISO3633), CE

System：Plastics piping systems for soil and waste discharge (low and high temperature) inside buildings

High flow capacity, corrosion resistance, low installation costs, long service time.

Scope：Our comprehensive line of sewer and drain fittings includes valves, couplings, and connectors in PVC

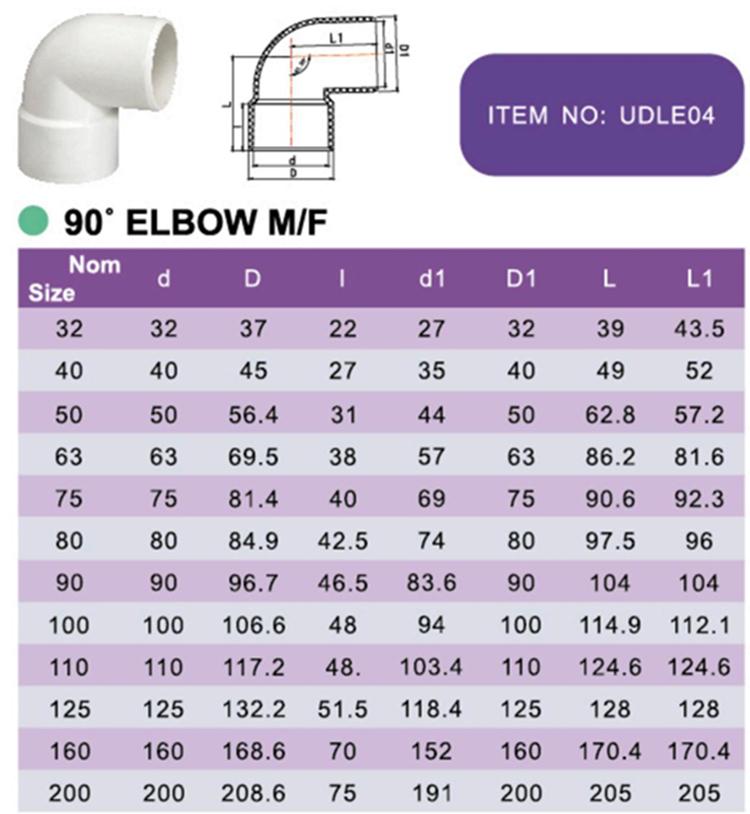

Specification：
Model NumberUDLE04MaterialPVC
Description
PVC DRAINAGE FITTINGS 90° ELBOW M/F
Size32-200MM
StandardISO3633ColorGrey
Working PressurePN10 10Bar,1.0MpaTemperatureMax 60°C / 140°F
ConnectionSolvent CementCertificateCE


Fields of application：

Piping networks for sewage in building.

Piping networks for piping system in water treatment plant.

Piping networks for irrigation of gardening or farming.

Main Products：
Product Characteristic：

1, light texture, convenient installation and construction: the density of PVC pipe is one fifth of the general cast iron, convenient loading and unloading. And using special adhesive paste or elastic sealing piece sleeve, installation and construction is simple and quick.

2. Low fluid resistance: the inner wall of PVC pipe is very smooth. The surface roughness coefficient is only 0.009, and the fluid resistance is small, which will not excessively reduce the water pressure.

3. Strong corrosion resistance: compared with general cast iron pipe and galvanized pipe, PVC pipe has strong corrosion resistance, strong acid and alkali resistance, and will not rust and scale. Do not worry about"red water"phenomenon when using.

4. Hygienic and non-toxic: The UPVC pipe for water supply uses a unique green and environmental protection lead-free formula system instead of the traditional compound lead salt formula system, so it will not damage the water quality and affect human health.

5, good water tightness: 15 minutes after adhesive bonding, bonding strength can reach 12.5/C above, after many years of use will not have significant decline, and the elastic sealing piece sleeve sealing ring, and PVC pipe has considerable service life, aging water leakage.

6, the temperature performance of the water supply pipe: the use of UPVC pipe temperature range, room temperature is better. Low temperature, brittle increase, unfavorable installation construction; High temperature decreases tensile strength and water resistance.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
