UDLC01
(4). The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to block, and the maintenance workload is small.
(5) The material has high oxygen index and self extinguishing property.
(6). The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and the frost resistance is excellent compared with the cast iron drainage pipe.
(8). Good water tightness: the installation of pvc-U pipe has good water tightness, whether by bonding or rubber ring connection

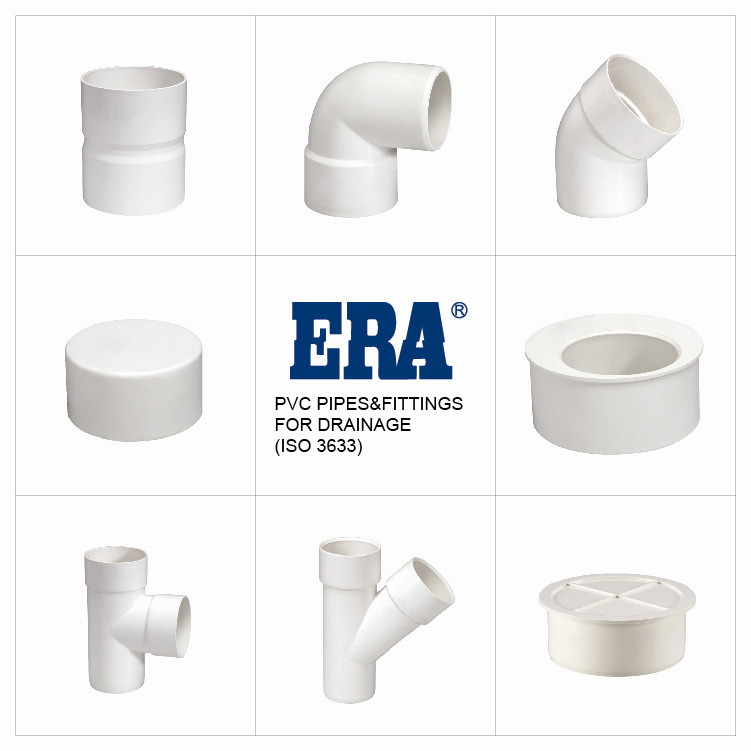

PVC DRAINAGE FITTINGS

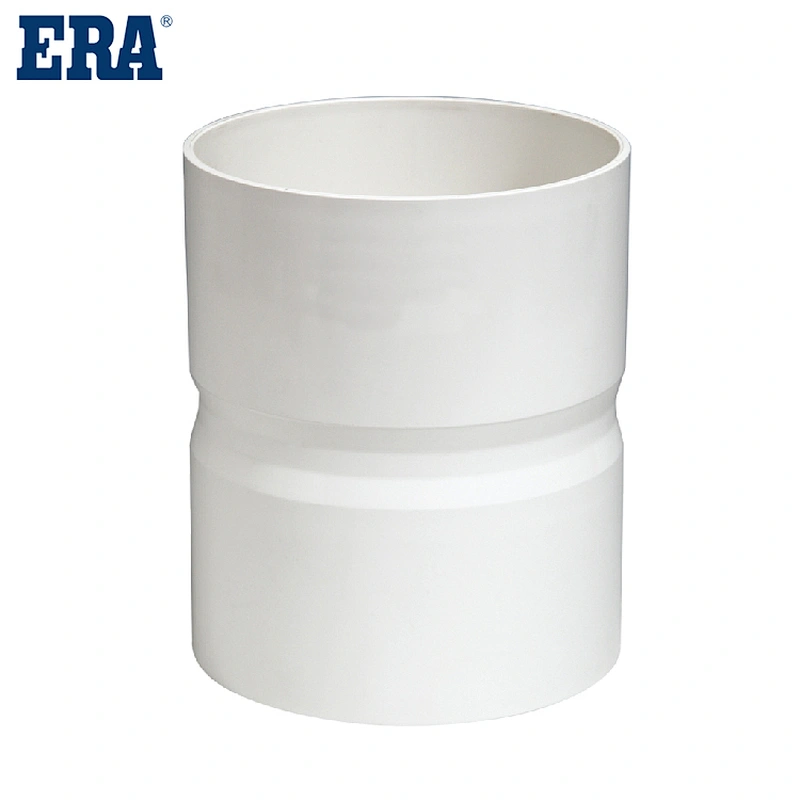

ERA Piping Systems, PVC Sanitary Solvent Cement, COUPLING, UDLC01, (ISO3633), CE

Specification：Pipe and fittings shall be manufactured from virgid

PVC(polyvinyl chloride) vinyl compounds.

The international standard specifies the requirements for unplasticized poly(vinyl chloride) (PVC-U) pipes and fittings for soil and waste discharge (low and high temperature) inside buildings, as well as the system itself. It does not include buried pipework.

Pipes intended to be used in areas where installation is usually carried out at temperatures below – 10 °C shall

additionally conform to the requirements of an impact test (staircase method),

Referenced Standards：ISO3633

Specification：

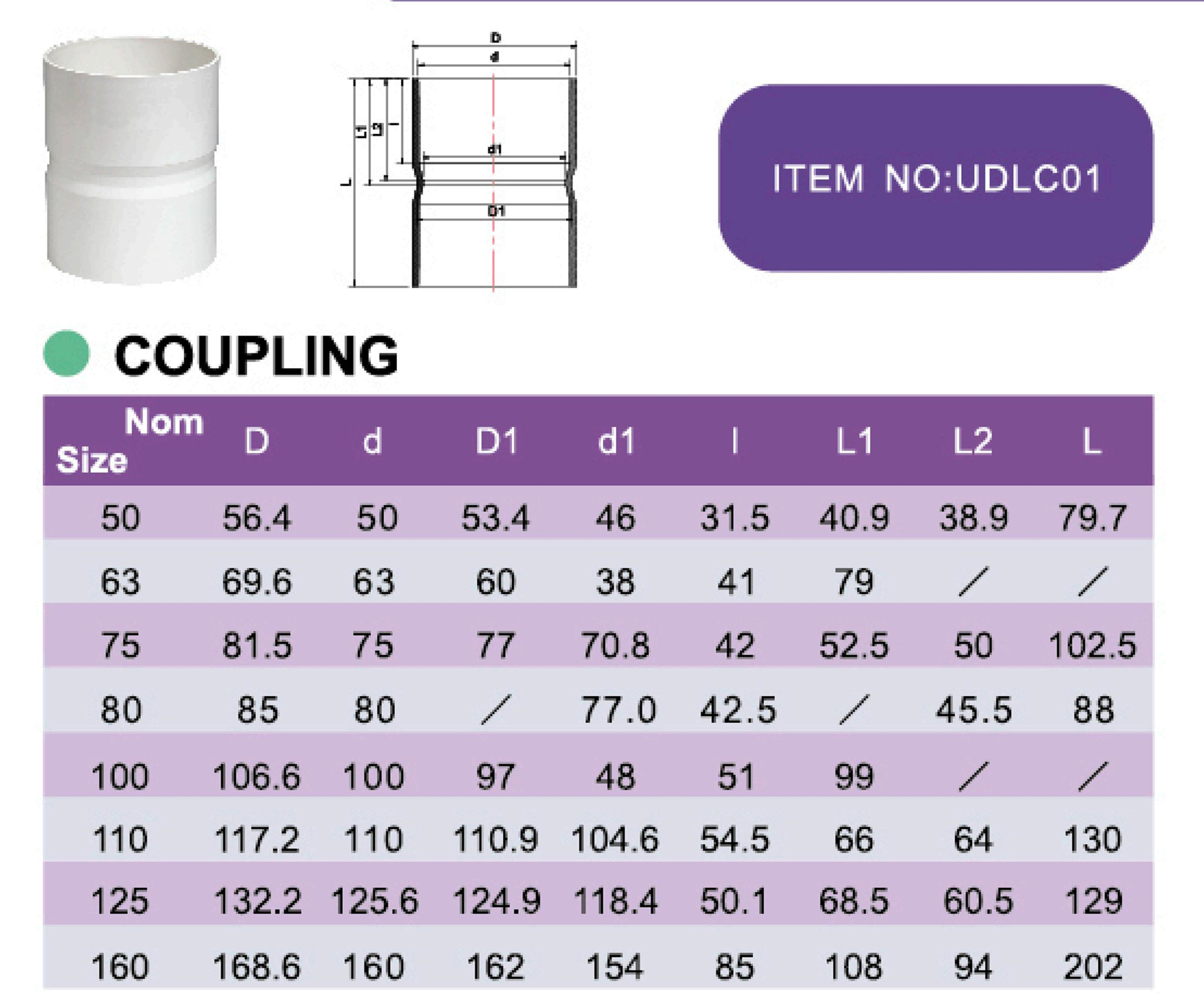

Model NumberUDLC01MaterialPVC
Description
PVC DRAINAGE FITTINGS COUPLING
Size50-160MM
StandardISO3633ColorGrey
Working PressurePN10 10Bar,1.0MpaTemperatureMax 60°C / 140°F
ConnectionSolvent CementCertificateCE


Fields of application：

Piping networks for drainage in building.

Piping networks for sewage in building.

Piping networks for piping system in water treatment plant.

Piping networks for irrigation of gardening or farming.

Main Products：
PVC is a white powder with an amorphous structure with a small degree of branching. The glass transition temperature is 77~90°C, and it begins to decompose at about 170°C. The stability to light and heat is poor. Above 100°C or after long-term sunlight exposure, it will It decomposes to produce hydrogen chloride, and further autocatalytic decomposition, causing discoloration and rapid decline in physical and mechanical properties. In practical applications, stabilizers must be added to improve the stability to heat and light.

Its material characteristics are as follows:

Feature

1: Rigid PVC is one of the most widely used plastic materials. PVC material is a kind of non-crystalline material. Characteristic

2: Stabilizer, lubricant, auxiliary processing agent, color, anti-impact agent and other additives are often added to PVC materials in the actual use. Characteristic

3: PVC material has non-flammability, high strength, weather resistance and excellent geometric stability. Characteristic

4: PVC has strong resistance to oxidants, reducing agents and strong acids. However, it can be corroded by concentrated oxidizing acids such as concentrated sulfuric acid, concentrated nitric acid and is not suitable for contact with aromatic hydrocarbons, chlorinated hydrocarbons. Characteristic

5: Melting temperature of PVC is a very important process parameter during processing. If this parameter is improper, it will lead to the problem of material decomposition. Characteristic

6: The flow characteristics of PVC are quite poor, and its process range is very narrow. In particular, large molecular weight PVC materials are more difficult to process (such materials usually require the addition of lubricants to improve flow characteristics), so small molecular weight PVC materials are usually used. Characteristic

7: PVC shrinkage rate is quite low, generally 0.2~0.6%.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
