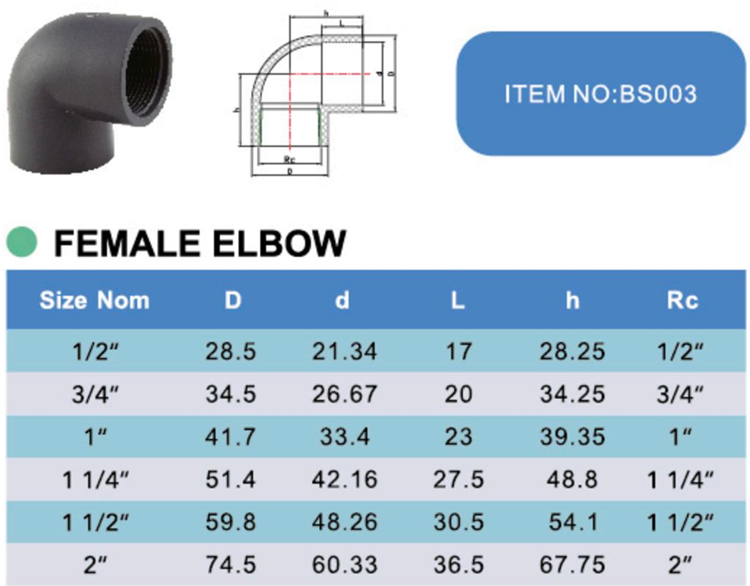

ERA Piping Systems, PVC Pipe Fitting ,Female Elbow, BS003, BS4346 (BS 1452-3) ,Socket , Kitemark

System：BS EN ISO 1452-3:2010 Plastics piping systems for water supply and for buried and above-ground drainage and sewerage under pressure - unplasticized poly(vinyl chloride) (PVC-u). Fittings (ISO 1452-3:2009, corrected version 2010-03-01)

Scope：Water supply (buildings), Unplasticized polyvinyl chloride, Polyvinyl chloride, Pressure pipes, Pipe fittings, Pipe couplings, Adhesive-bonded joints, Spigot-and-socket joints, Flanged fittings, Flanges, Water supply, Water mains, Underground, Internal, External, Buildings, Pressure, Temperature, Cold-water supply systems, Potable water, Elastomers, Sealing rings, Injection moulding, Dimensions, Elbows (pipes), Pipe tees, Mechanical properties of materials, Physical properties of materials, Performance testing, Pressure testing, Thermal testing, Hydraulic tests

Referenced Standards：BS4346 Standard

Specification：

Proven physiological harmlessness

Universal use

Very good chemical and corrosion resistance

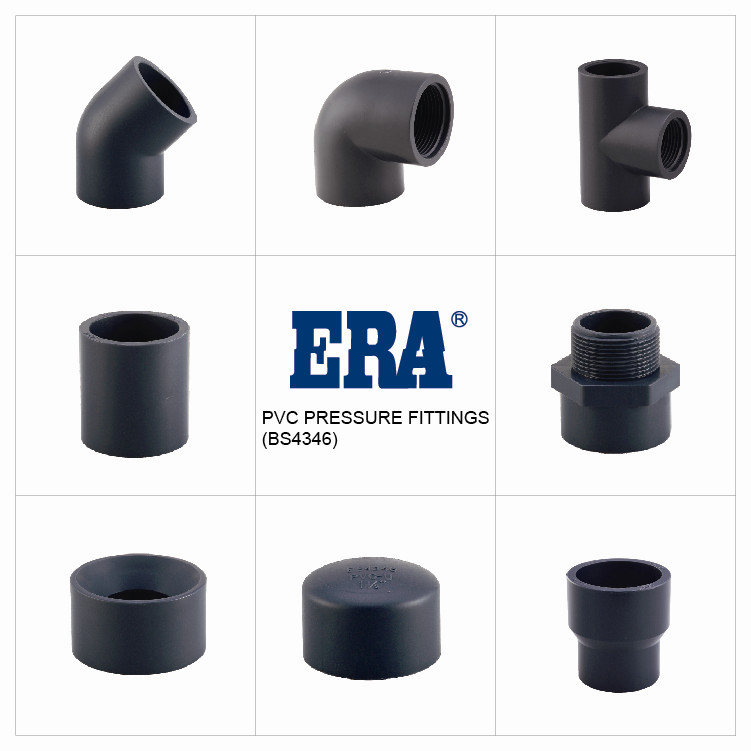

Main Products：

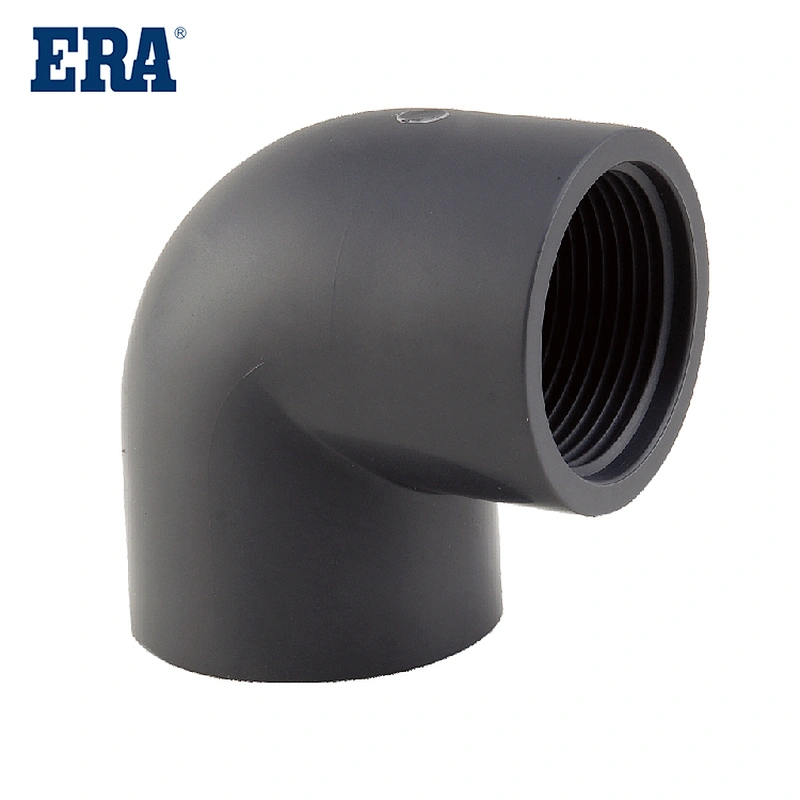

Applications of PVC Fitting BS4346 Female Elbow

1.Piping networks for water farming.

2.Chemical Process Industry

3.Ship building

4.Pipe length: 6m with plain ends

5.water treatment

PVC drainage pipe is a substitute for traditional drainage pipe, which has better physical and chemical properties. Its inner wall is smooth, and the friction resistance is less than that of conventional drainage materials, so the transverse pipe installation slope is smaller, which can improve the indoor net height of the building. At the same time,PVC drainage pipe weight is lighter, for cast iron pipe one-fifth, easy to transport and operation; Adhesive connection, easy installation and maintenance; The price is lower than the conventional drainage pipe, greatly reducing the cost of the project; Strong corrosion resistance, widely used in construction waste water and rainwater pipeline system. In addition, the widespread use of PVC drainage pipe is beneficial to save steel, which has a very important significance for alleviating the situation of our iron and steel shortage. Compared with cast iron pipe and steel pipe,PVC-U drainpipe has the disadvantages of low pressure and weak impact resistance. In addition, although PVC-U drainpipes are non-combustible materials, for indoor open-coated pipes, there is the possibility of fire spreading upward along the drainpipe.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
