PPH THREAD FITTINGS 90°ELBOW
PPH THREAD FITTINGS 90°ELBOW
PPH THREAD FITTINGS 90°ELBOW
PPH THREAD FITTINGS 90°ELBOW
PPH THREAD FITTINGS 90°ELBOW
PPH THREAD FITTINGS 90°ELBOW
PPH THREAD FITTINGS 90°ELBOW
PPH THREAD FITTINGS 90°ELBOW
PPH THREAD FITTINGS 90°ELBOW
PPH THREAD FITTINGS 90°ELBOW
PPH THREAD FITTINGS 90°ELBOW

PPH THREAD FITTINGS 90°ELBOW

TH001
Hygienic and non-toxic: This product is a green building material, used for drinking water pipeline system.
Low temperature resistance, convenient for winter construction. The impact resistance is good, and the pipe embrittlement will not occur.
Pph pipe has low notch sensitivity, high shear strength, excellent scratch resistance and excellent environmental stress cracking resistance.

PPH THREAD FITTINGS

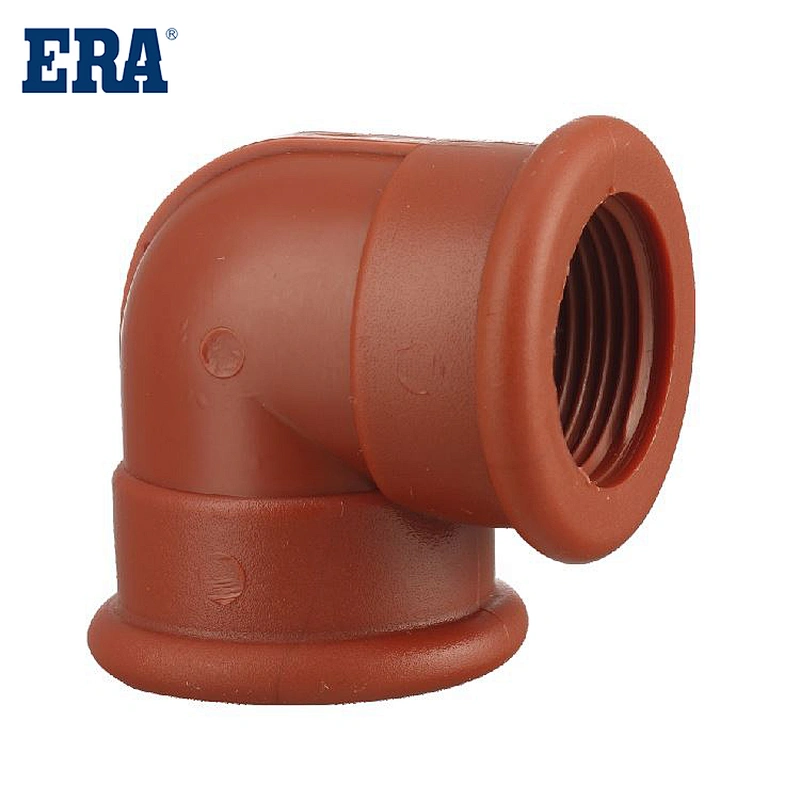

ERA Piping Systems, PPH THREAD FITTINGS , 90° ELBOW, IRAM 13478, CE

System:  PPH Pressure Pipe and Fitting System

Suitable for underground pipes through adjustment to local ground movement

PPH is produced by a continuous chain of polypropylene units which results in a high stiffness material.

Scope:
This specification covers PPH pipe and fittings for pressure applications.This system is Intended for pressure applications where the operating temperature will not exceed  95 ℃.

Referenced Standards:  IRAM 13478 , accords with GBM standards

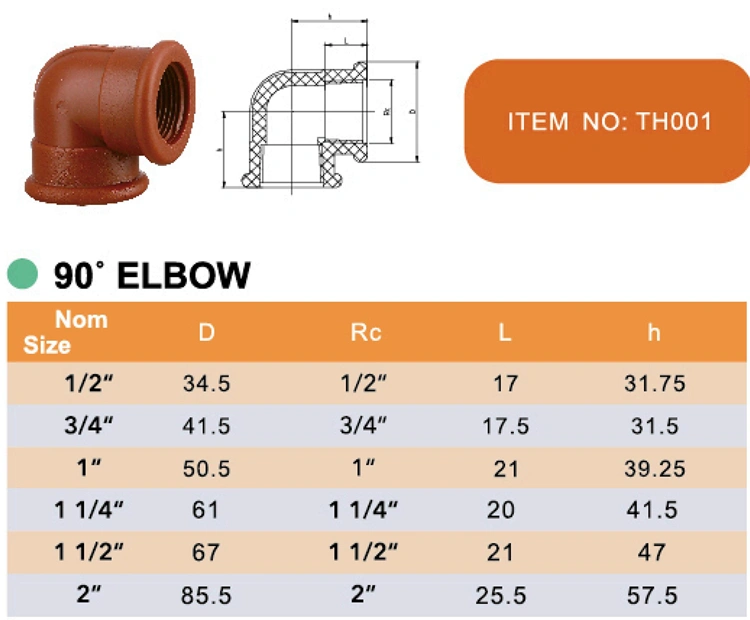

Model NumberTHP001MaterialPPH
Description90° ELBOWSize1/2''-2''
StandardIRM 13478ColorBROWN
BrandERATemperature/
ConnectionThreadCertificate/
Main Product:
PPH tube (alloy polypropylene tube), is the ordinary PP material β modification, so that it has a uniform and delicate Beta crystal structure, has excellent chemical corrosion resistance, wear resistance, good insulation, high temperature resistance, working temperature can reach 100℃, non-toxicity, light weight, easy to transport and installation, This is a better quality product than PP tube with high temperature resistance, corrosion resistance and aging resistance.

The production of alloy polypropylene (PPH) pipe fittings, in line with the German DIN8077/78 standard

Material characteristics of pph pipe
Chemical resistance-----Among all polypropylene pipes, experiments have proven that (β)-PPH pipe has the strongest chemical resistance.
Long life-----Beta-(β)-PPH tube has longer service life and higher system safety.
Impact strength-----Compared with traditional (α)-PPH pipe, (β)-PPH pipe has significant low-temperature impact strength.
Temperature resistance-----According to actual application conditions, the applicable temperature range of (β)-PP-H pipe is from -20℃ to +110℃.
Pressure resistance-----Among all polypropylene materials used in piping systems, (β)-PPH pipe has the highest pressure resistance (MRS10).
High performance - (β)-PP-H pipe's excellent performance, flexible welding equipment and professional technical support team can not only ensure the welding and installation quality of (β)-PP-H pipe system, but also can Provide customers with customized processing of non-standard products
