CPVC NBR PIPES AND FITTINGS

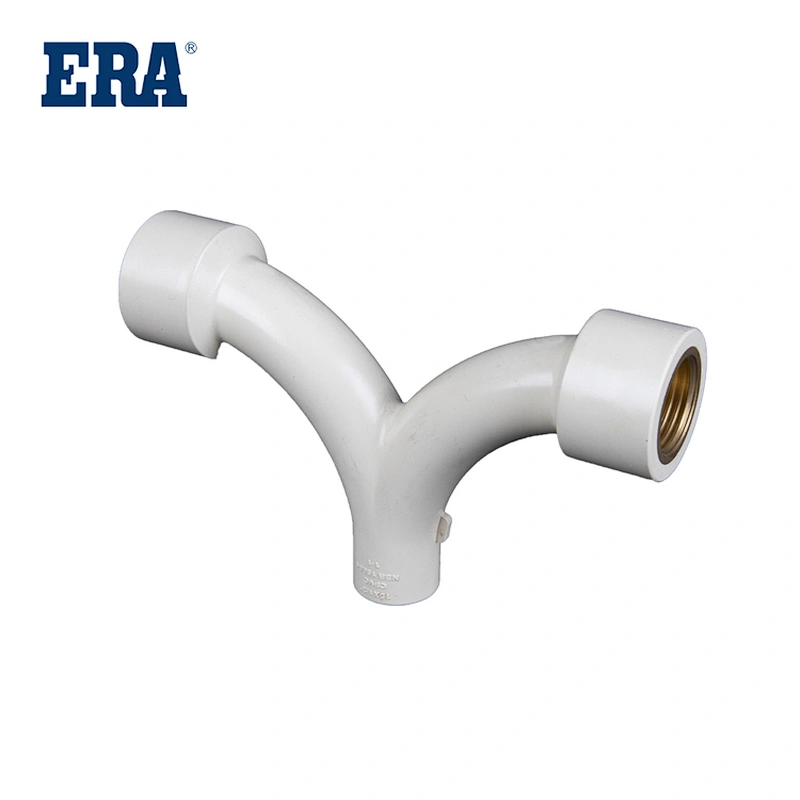

ERA Piping Systems, CPVC Pipe Fitting,TEE MIXER WITH BRASS(FFF) , CPB016, NBR(ABNT NBR 15884) , NSF-pw & UPCSystem：
ERA CPVC has a rated working pressure of 100 PSI at 180 degrees Fahrenheit and 400 PSI at 73 degrees Fahrenheit.
Makes the job site safer by eliminating the need for an open flame to solder the joints together.
Specification：
The NBR plumbing products are made to copper tube outside diameter dimensions, in accordance with ABNT NBR 15884 specifications,
International market：
Most trademark registration: ERA trademark has been registered in nations and regions as Japan,America, Germany,etc and also registered in international intellectual property rights organizations as Madrid ,African and other international intellectual property organization.
What material is cpvc
This is a new type of plastic products, is made of polyvinyl chloride again chlorinated polymer material, after treatment, chlorine content will be greatly improved, and chemical stability will be higher, to better improve the heat resistance and acid resistance of the material, corrosion resistance can be significantly improved.

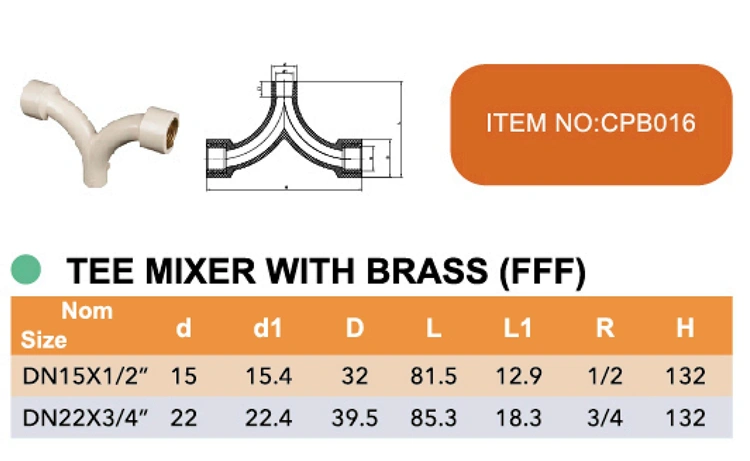

| Model Number | CPB016 | Material | CPVC |
| Description | TEE MIXER WITH BRASS(FFF) | Size | DN15x1/2''-DN22x3/4'' |
| Standard | NBR(ABNT NBR 15884) | Color | Ivory color |
| Brand | ERA | Temperature | Max82.2°C / 180°F |
| Connection | Socket or Thread | Certificate | NSF、UPC |
Characteristics of CPVC pipes：
Vinyl chloride resin has high strength, good elasticity of masterbatch products, high temperature resistance, corrosion resistance, flame retardancy, good insulation properties, no pollution, not easy to age, light weight, convenient construction, and national and provincial inspection and appraisal of performance indicators. and certification, have reached or exceeded the level of similar products.
1. Material properties
CPVC electric pipe heating uses polyvinyl chloride resin as the main raw material and has excellent insulation properties. CPVC products are currently recognized as green and environmentally friendly products. Their excellent physical and chemical properties are attracting more and more attention from the industry.
CPVC power pipe is a hard straight solid wall pipe with smooth inner and outer walls, orange-red, bright and eye-catching.
2. Heat resistance
The heat exchange temperature of CPVC power pipes is 15 degrees Celsius higher than that of ordinary UPVC double-wall corrugated pipes. It can exceed 93 degrees Celsius in an environment, maintains no deformation, and has sufficient strength.
3. Insulation performance
CPVC power pipe can withstand more than 30,000 volts.
4. Compression performance
CPVC power pipe has been modified with materials, and the product ring stiffness is 1okpa, which is significantly higher than the target for buried plastic pipe ring stiffness set by relevant national departments.
5. High impact strength
CPVC power pipe can withstand the impact of 1kg weight at temperatures below 0°C and 2m height, which fully reflects the low-temperature impact performance of the material and is fully suitable for the environmental conditions required for construction.
6. Flame retardant
PVC and PVC-C have good flame retardant properties, which can help put out fires. Especially for polyvinyl chloride materials, since its chlorine content is significantly higher than PVC, the improvement in flame retardancy and smoke density indicators is more obvious.
7. Installation performance
CPVC power pipes are light in weight, high in strength, and have simple laying and construction methods. They can be excavated, laid and backfilled at night. Open the day as usual; elastic sealing rubber sealing ring type connection, easy to install and connect, efficient, good connection and sealing performance, prevent leakage, effectively protect power cable use.
8. Long service life
CPVC power pipe material is corrosion-resistant and anti-aging, with a service life of more than 50 years.
