CPVC NBR PIPES AND FITTINGS

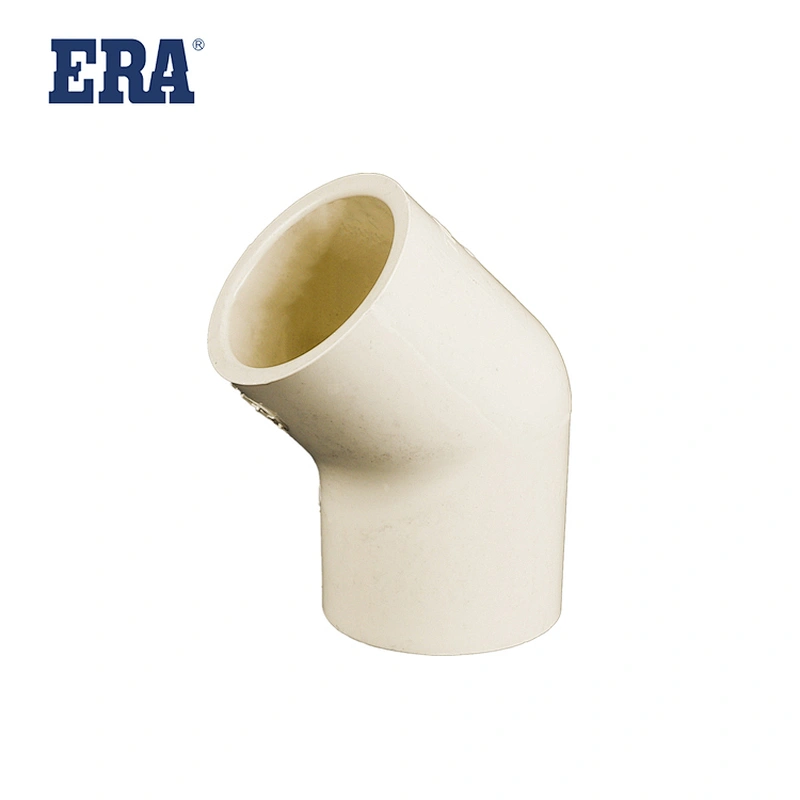

ERA Piping Systems, CPVC Pipe Fitting, 45° ELBOW , CPB001, NBR(ABNT NBR 15884) , NSF-pw & UPCSystem：ERA CPVC has a rated working pressure of 100 PSI at 180 degrees Fahrenheit and 400 PSI at 73 degrees Fahrenheit.Makes the job site safer by eliminating the need for an open flame to solder the joints together.
Scope：The CPVC pipe has comparable corrosion resistance to PVC pipe yet it is suitable for handling corrosive material at temps 40 to 60 deg F higher than PVC.
CPVC fire sprinkler piping systems are approved for light hazard applications and for use in single and multifamily dwellings.

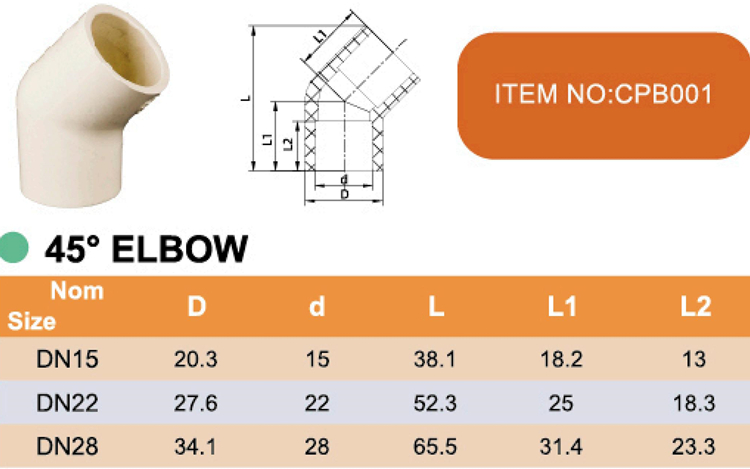

Specification：
| Model Number | CPB001 | Material | CPVC |
| Description | 45° ELBOW | Size | DN15-28 |
| Standard | NBR(ABNT NBR 15884) | Color | Ivory color |
| Brand | ERA | Temperature | Max82.2°C / 180°F |
| Connection | Socket or Thread | Certificate | NSF、UPC |
CPVC pipe is used in civil water supply, hot water system, pipe direct drinking water system, commercial pure water system, deionized water system for electronic industry, pure water system for medical kidney washing, cold and hot water system for air conditioning and other fields. In recent years in our country civil building water supply system especially in hot water system also obtains more and more applications.
Characteristics of CPVC pipes：
1. Wide operating temperature range: -40℃-95℃;
2. Has good strength and toughness;
3. Has good chemical corrosion resistance;
4. The flame retardant property is self-extinguishing;
5. Low thermal conductivity, about 1/200 of steel;
6. The heavy ion content in the medium reaches the ultrapure water standard;
7. The hygienic performance meets the requirements of national hygienic standards;
8. The pipe wall is clean and smooth: it has small friction resistance and adhesion when transporting fluid;
9. Light weight: equivalent to 1/5 of steel pipe and 1/6 of steel pipe;
10. Easy to install: can be connected by bonding, threading, welding, etc.;
11. Excellent aging resistance and UV resistance, long normal service life.
