CPVC CTS PIPES AND FITTINGS
ERA Piping Systems, CPVC Pipe Fitting , MALE ADAPTOR ,CPA005, CTS (ASTM 2846) , NSF-pw & UPCSystem：
ERA CPVC has a rated working pressure of 100 PSI at 180 degrees Fahrenheit and 400 PSI at 73 degrees Fahrenheit.
Scope：
The CPVC pipe has comparable corrosion resistance to PVC pipe yet it is suitable for handling corrosive material at temps 40 to 60 deg F higher than PVC.
Specification：
The CTS plumbing products are made to copper tube outside diameter dimensions, in accordance with ASTM D-2846 specifications, and have an SDR 11 wall thickness.
Integration service：
Advances Technology: PVC-U pipe for water supply and drainage in nanometer, PPR bacterium-proof pipe in nanometer, CPVC piping system, Three-wall composite enhanced tubes for underground in polyethylene,and polypropylene.

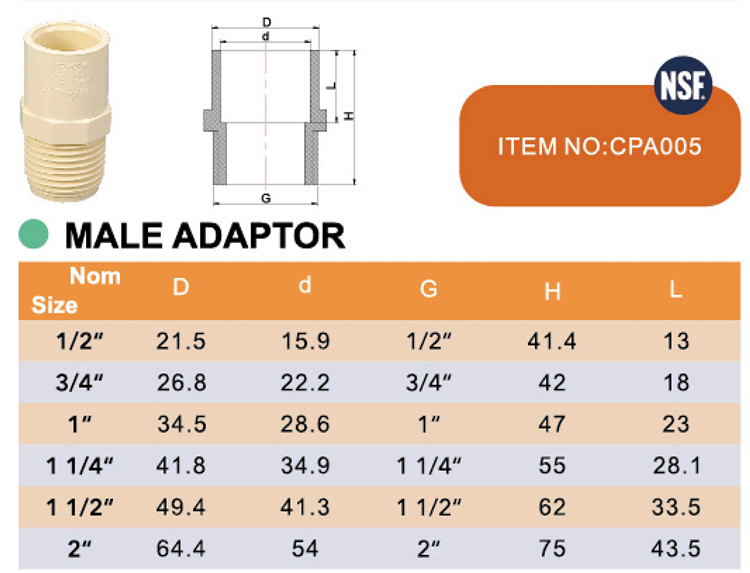

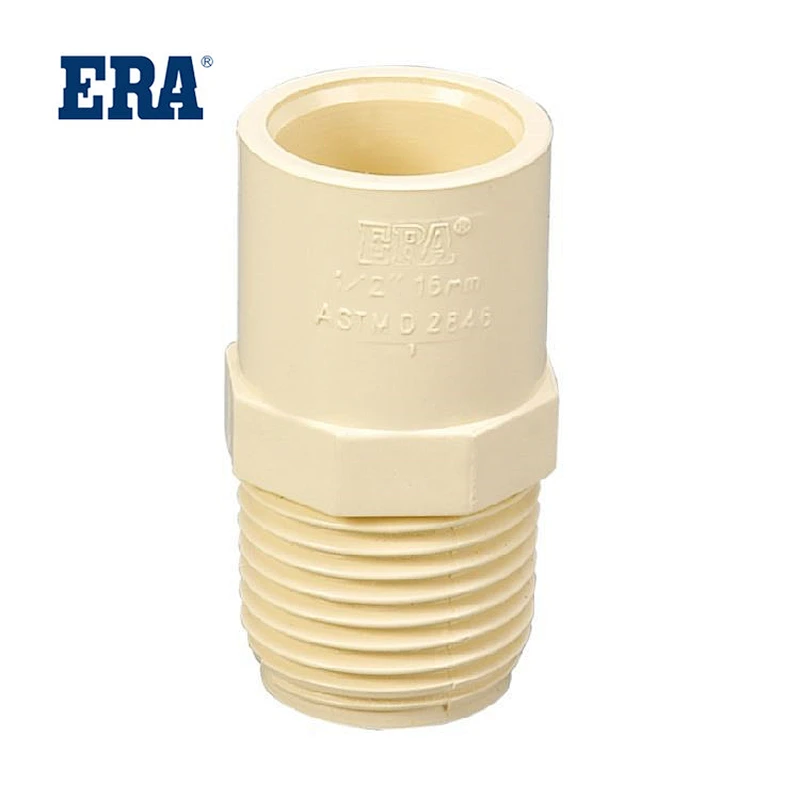

| Model Number | CPA005 | Material | CPVC |
| Description | MALE ADAPTOR | Size | 1/2''-2'' |
| Standard | CTS / ASTM D2846 | Color | Ivory color |
| Brand | ERA | Temperature | Max82.2°C / 180°F |
| Connection | Socket or Thread | Certificate | NSF、UPC |

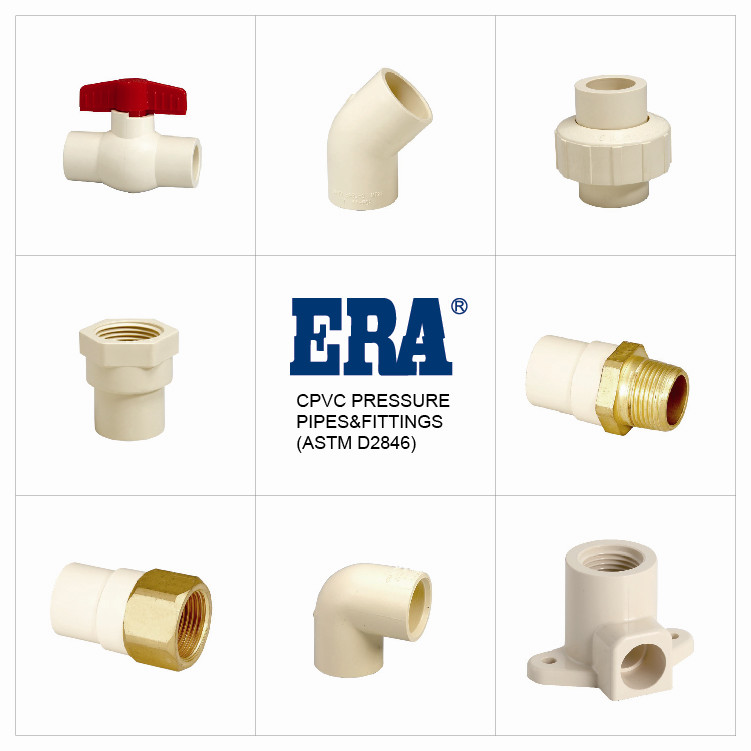

Main Products：
Features：
1, excellent hardness and tensile strength, superior pipeline safety performance.
2, good quality, the service cycle can generally reach more than 50 years.
3, the pipeline is resistant to the corrosion of inorganic, alkali and salt, especially suitable for industrial sewage discharge and transportation.
4, smooth and flat surface friction is small, smooth water flow, not easy to plug, reduce maintenance costs.
5, the material oxygen index is high, will not burn, and self-extinguishable function.
Characteristics of CPVC pipes：
1. Wide operating temperature range: -40℃-95℃;
2. Has good strength and toughness;
3. Has good chemical corrosion resistance;
4. The flame retardant property is self-extinguishing;
5. Low thermal conductivity, about 1/200 of steel;
6. The heavy ion content in the medium reaches the ultrapure water standard;
7. The hygienic performance meets the requirements of national hygienic standards;
8. The pipe wall is clean and smooth: it has small friction resistance and adhesion when transporting fluid;
9. Light weight: equivalent to 1/5 of steel pipe and 1/6 of steel pipe;
10. Easy to install: can be connected by bonding, threading, welding, etc.;
11. Excellent aging resistance and UV resistance, long normal service life.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
