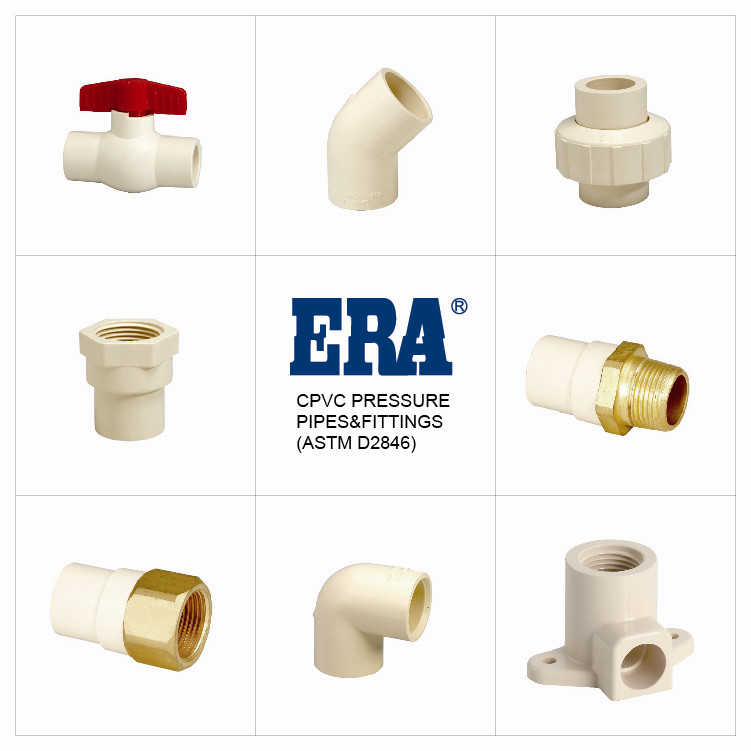

CPVC CTS PIPES AND FITTINGS
ERA Piping Systems, CPVC Pipe Fitting ,CPVC PIPES, PRESSURE RATE:SDR13.5, CPA001-2, CTS (ASTM 2846) , NSF-pw & UPCSystem: Used for potable hot and cold water distribution，with solvent weld joints, and is easy to install.
Scope: ASTM F 493: Specification for solvent cements for Chlorinated Poly (Vinyl Chloride) (CPVC) plastic pipe and fittings.
Specification: Do not use with compressed air or other gases.
Specification: | Model Number | CPA001-2 | Material | CPVC |
| Description | PRESSURE RATE:SDR13.5 | Size | 3/4''-2'' |
| Standard | CTS / ASTM D2846 | Color | Ivory color |
| Brand | ERA | Temperature | Max82.2°C / 180°F |
| Connection | Socket or Thread | Certificate | NSF、UPC |
Basic introduction
PVC-C is a new engineering plastic with broad application prospects. The resin is produced by chlorination modification of polyvinyl chloride (PVC) resin and is a new type of engineering plastic. The product is white or light yellow, tasteless, odorless, non-toxic loose granules or powder. After PVC resin is chlorinated, the irregularity of the molecular bonds increases and the polarity increases, which increases the solubility and chemical stability of the resin, thereby improving the material's heat resistance, acid resistance, alkali resistance, salt, oxidant resistance, etc. corrosion. Improved the mechanical properties of the heat distortion temperature of the resin, the chlorine content increased from 56.7% to 63-69%, the Vicat softening temperature increased from 72-82 ℃ to 90-125 ℃, the maximum operating temperature can reach 110 ℃, long-term use The temperature is 95°C.
Characteristic
1. Material properties
PVC-C pipe
PVC-C power pipes are made of PVC-C resin with excellent heat resistance and insulation properties as the main material. PVC-C products are currently recognized as green and environmentally friendly products, and their excellent physical and chemical properties are increasingly valued by the industry.
PVC-C electric power pipe is a hard straight solid wall pipe with smooth inner and outer walls and an orange-red color, which is bright and eye-catching.
2. Heat resistance
The heat resistance temperature of PVC-C power pipe is 15°C higher than that of ordinary UPVC double-wall corrugated pipe. It can maintain no deformation in an environment below 105°C and has sufficient strength.
3. Insulation performance
PVC-C power pipe can withstand high voltages of more than 30,000 volts.
4. Compression resistance
PVC-C power pipe has been modified with materials, and the ring stiffness of the product reaches 1Okpa, which is significantly higher than the regulations of the relevant national departments for buried plastic pipes, whose ring stiffness should be above 8kpa.
5. High impact strength
PVC-C power pipe can withstand the impact of a 1kg weight and a height of 2m at a temperature of 0°C, which fully reflects the low-temperature impact performance of the material and is fully applicable to the requirements of construction environmental conditions.
6. Flame retardant performance
Both PVC and PVC-C materials have good flame retardant properties and can be extinguished immediately after leaving the fire. Especially PVC-C material, because its chlorine content is significantly higher than PVC, the flame retardancy and smoke density index are significantly improved.
7. Installation performance
PVC-C power pipe is light in weight, high in strength, and has a simple construction and laying method. It can be excavated and buried at night, backfilled on the road surface, and can be opened to traffic during the day. It adopts elastic sealing rubber ring socket connection, which is easy and fast to install and connect, and has good connection sealing performance. It is good and can prevent the leakage of groundwater and effectively protect the safety of power cables.
8. Long service life
PVC-C power pipe material is corrosion-resistant, anti-aging, and has a service life of more than 50 years.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
