CP004
1. Light weight, easy to transport equipment;
2. Easy construction, significant economic benefits, shortened construction period, no radioactive carcinogens
3. Corrosion resistance function
4.Compressive strength - the wall thickness of pipes under the same pressure can be thinner than PVC.
5. High flame retardancy - can be used for fire pipe system

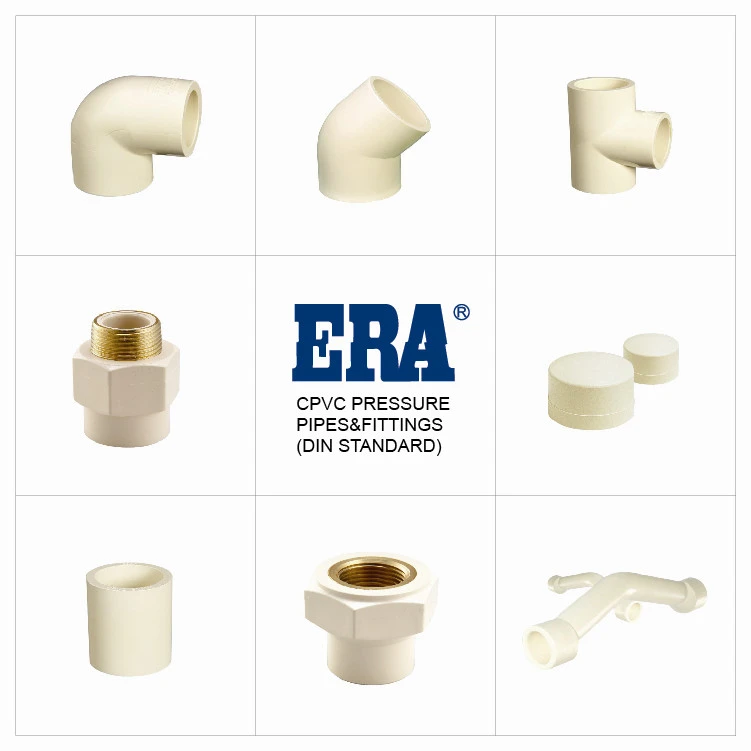

CPVC DIN PIPES AND FITTINGS

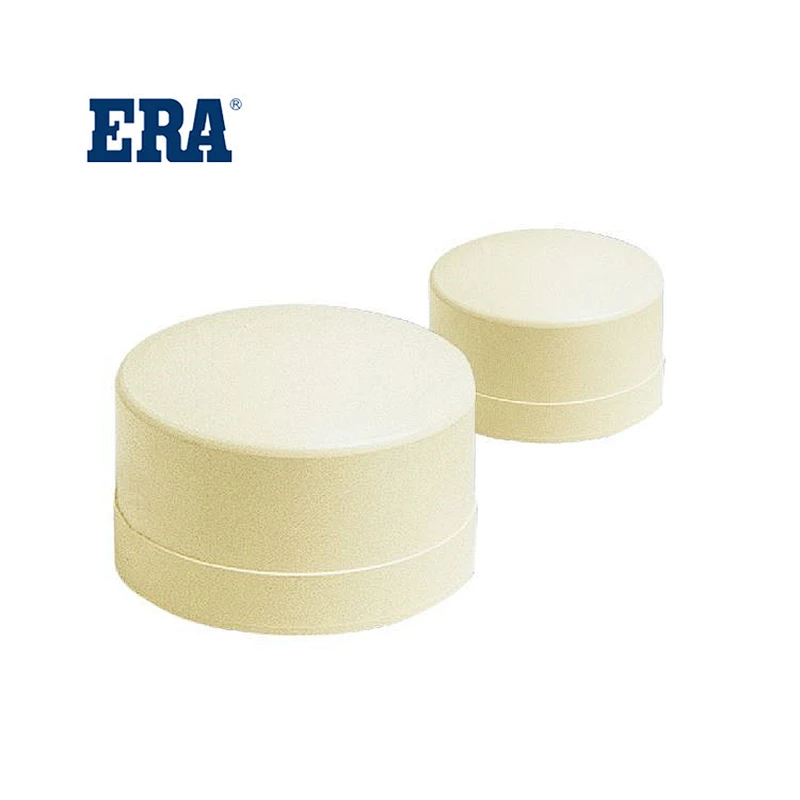

ERA Piping Systems, CPVC Pipe Fitting ,END CAP, CP004, (DIN8049) , CE

System：Chlorinated Polyvinyl Chloride (CPVC) has proven to be an excellent material for hot corrosive liquids, hot and cold water distribution, and similar applications above the temperature range of PVC. CPVC will not rust, pit, scale or corrode. CPVC fittings are easy to install and are joined by solvent cementing or threading. Because of its longstanding reputation for innovation and precision in design and manufacturing, ERA is the preferred brand in the industry.

Specification：Metric Chlorinated Polyvinyl Chloride is corrosion-resistant, has a long service life in an aggressive and/or corrosive environment, and a high safety factor.

Size Range：20-63MM

Joining Technology：1、Solvent (Cement) Weld

                                    2、 NPT Threaded Connections

                                    3、Mechanical Connections

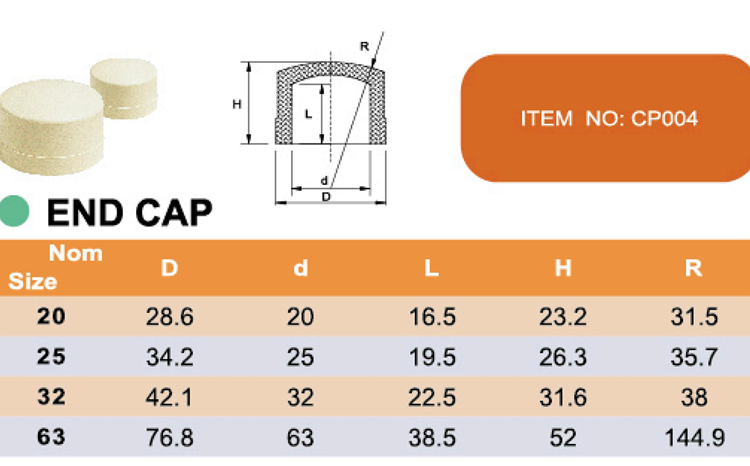

Model NumberCP004MaterialCPVC
DescriptionEND CAPSize20-63MM
StandardDIN8079ColorIvory color
BrandERATemperature40-50°C（104-122°F）
ConnectionSocket or ThreadCertificateCE



Main Products：
The advantage of CPVC water supply pipe is that it is relatively resistant to high temperatures. If the raw materials for forming CPVC pipes contain a relatively large proportion of graphite filler, they can also be used as heat conduction pipes. The application of this kind of pipes in China has only begun in recent years. They are mostly used in hot and cold water transportation and thermochemistry. In solution and waste liquid transportation pipelines, the infusion temperature can reach 120 degrees Celsius during long-term use, and the service life is as long as 40 years.

1. The tensile strength, flexural strength, flexural modulus and pressure-bearing capacity of chlorinated polyvinyl chloride pipes are higher than those of polyethylene pipes, polyvinyl chloride pipes and polypropylene pipes.

2. Its chemical corrosion resistance, heat resistance and weather resistance are higher than those of polyvinyl chloride pipes.

3. When transporting drinking water, it will not be affected by chlorine in the water, ensuring the quality of drinking water.

4. Excellent flame retardancy, no dripping when burning, slow combustion diffusion, and no toxic gases.

5. Good flexibility, easy to install and can be connected with solvent.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
