CPVC DIN PIPES AND FITTINGS
ERA Piping Systems, CPVC Pipe Fitting, 90°ELBOW, CP002, (DIN STANDARD), CESystem：Characterized by unique thermal, physical and mechanical properties CPVC is desirable for piping applications which require high temperature rating, high impact resistance and fire resistance. Manufactured to various international ASTM / DIN standards our high pressure CPVC pipes and fittings are widely used in many fileds.
Scope：ERA BRAND CPVC has been designed for enhanced chemical resistance and exceptional temperature stability. Metric CPVC systems are in use wherever aggressive media such as mixed acid waste or alkalis at a high temperature are transported.
Specification：CPVC pipe and fittings shall conform to DIN 8079. Pipe and fittings shall be manufactured to the nominal dimension cited in the applicable ASTM standard, and shall be made by one manufacturer. Fittings shall be injection molded.

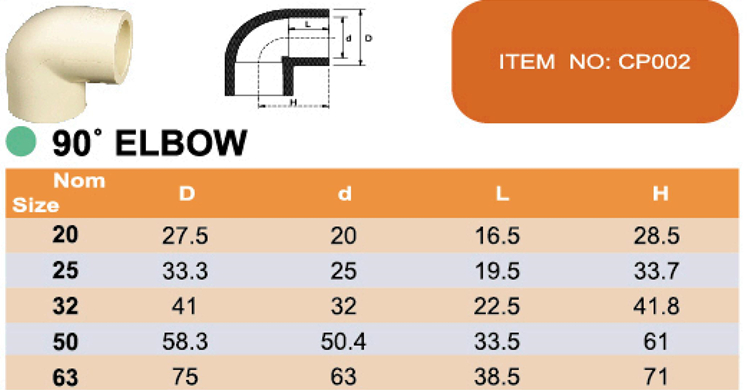

Referenced Standards：DIN standard| Model Number | CP002 | Material | CPVC |

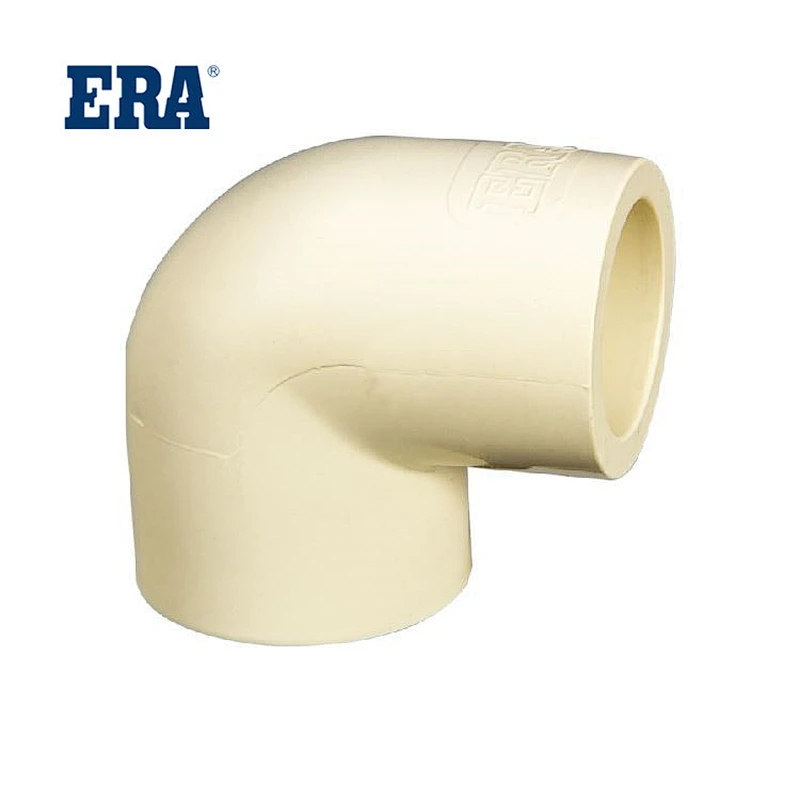

| Description | CPVC 90° ELBOW | Size | 20-63MM |
| Standard | DIN8049 | Color | Ivory color |
| Brand | ERA | Temperature | 40-50°C（104-122°F） |
| Connection | Socket or Thread | Certificate | CE |

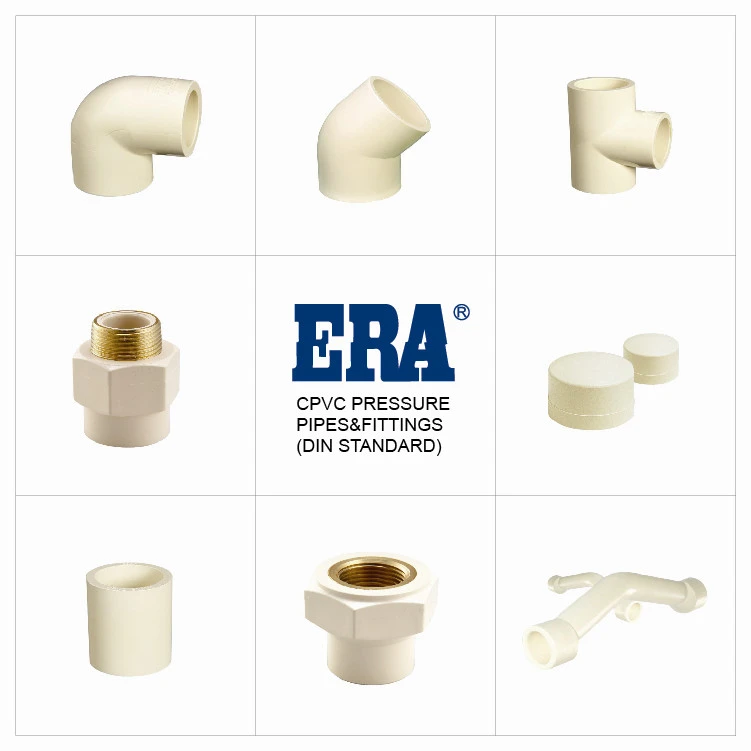

Main Products：
The characteristics of CPVC are：
1. Drinking water compatibility. CPVC is a material that can be used to produce drinking water pipes. It meets ASTM standards and has been recognized by public health agencies.
2. Resistant to chlorine and biofilm. Products made from CPVC are not affected by chlorine or chlorine dioxide. CPVC pipes are not affected by extensive exposure to chlorinated water streams. Multiple international studies have shown that CPVC consistently outperforms copper and other plastic pipes (particularly polypropylene) in resisting the formation of potentially harmful biofilms.
3. Fire resistance. When faced with a fire, CPVC can provide excellent safety performance. CPVC is self-extinguishing and highly flame-resistant: its flashover temperature is 482 degrees, while wood ignites at 260 degrees or lower. Its limiting oxygen index is 60, which means it requires an oxygen concentration of 60% to burn. Air contains only 21% oxygen.
CPVC does not support combustion and resists the spread of fire and smoke. When tested against UL94 plastic flammability standards, CPVC received high ratings of V-0, 5VB and 5VA.
4. Weather resistance and heat resistance. Products made with CPVC have excellent weather resistance and are resistant to sunlight and UV radiation. They can also be coated with a protective coating for extra protection. They are also resistant to twisting or deformation when exposed to high ambient temperatures.
5. Recyclability. CPVC can be recycled downwards or recycled. Many local agreements allow CPVC to be integrated with PVC products, allowing for recycling.
The main use of PVC pipe fittings: PVC material PVC is synthesized by acetylene gas and hydrogen chloride vinyl chloride, and then polymerized. Can be used to make textile, chemical and other industries of gas liquid conveying pipe, waste gas drainage and detoxification tower, but also can replace other corrosion resistant materials to make storage tank, centrifugal pump, fan and connector. It has high mechanical strength and good corrosion resistance. Its high elongation, soft products, and has good corrosion resistance and electrical insulation, generally made into a film, can also be used to make cable wrapping, acid and alkali hoses, insulation layer, etc.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder
