CPS009
1. Light weight, convenient transportation and installation.
2. The project construction is convenient and has obvious economic benefits.
3. High quality corrosion resistance.
4. The electric tube also has the advantages of strong compressive strength, high temperature resistance, long service life, etc., and basically
Product Description：

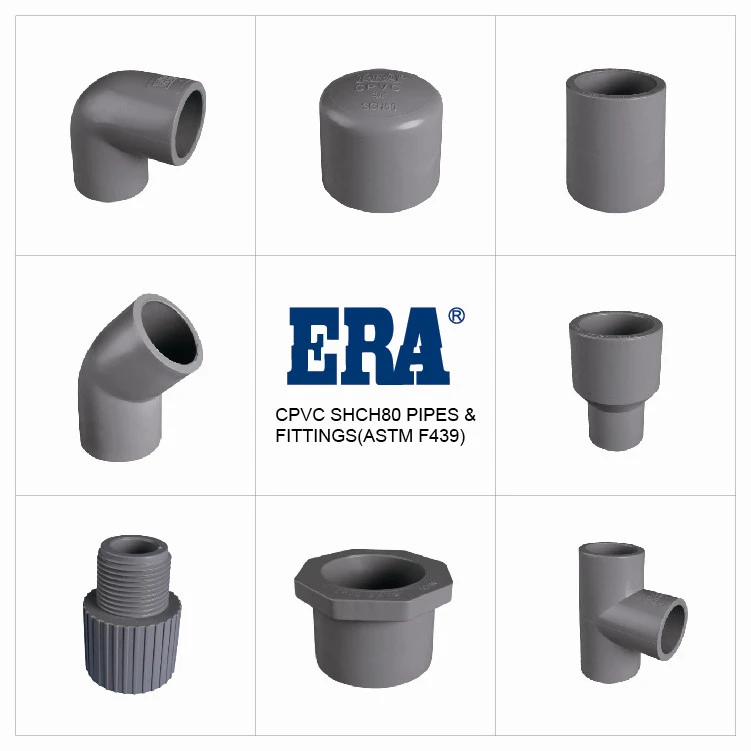

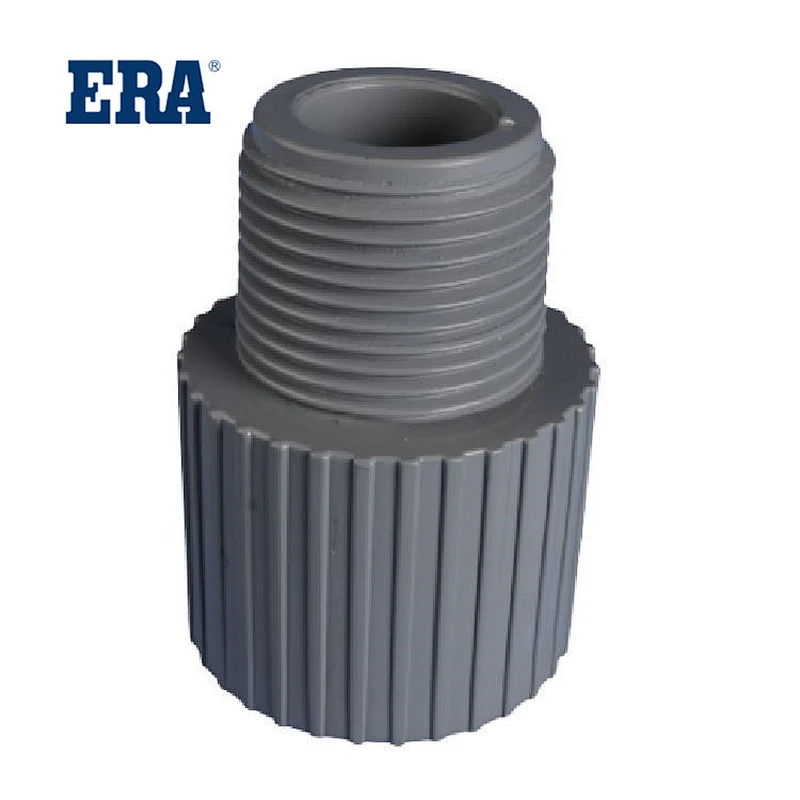

ERA  MALE ADAPTOR CPVC SCH80 PIPES AND FITTINGS
System：CPVC pipe System
Scope：
CPVC can withstand corrosive water at temperatures greater than PVC,typically by 40-50°C（104-122°F）or higher,contributing to its popularity as a material for water-piping systems in residential and commercial construction.CPVC maximal operating temperature peaks at 200°F(93°C).
Specification：
CPVC is readily workable,including machining,welding,and forming.Because of its excellent corrosion resistance at elevated temperatures,CPVC is ideally suited for self-supporting construction where temperatures up to 200°F(93°C) are present.The ability to bend,shape,andweld CPVC enables its use in a wide variety of precesses and applications.It exhibits fire-retardant properties.
Referenced Standards：ASTM F439

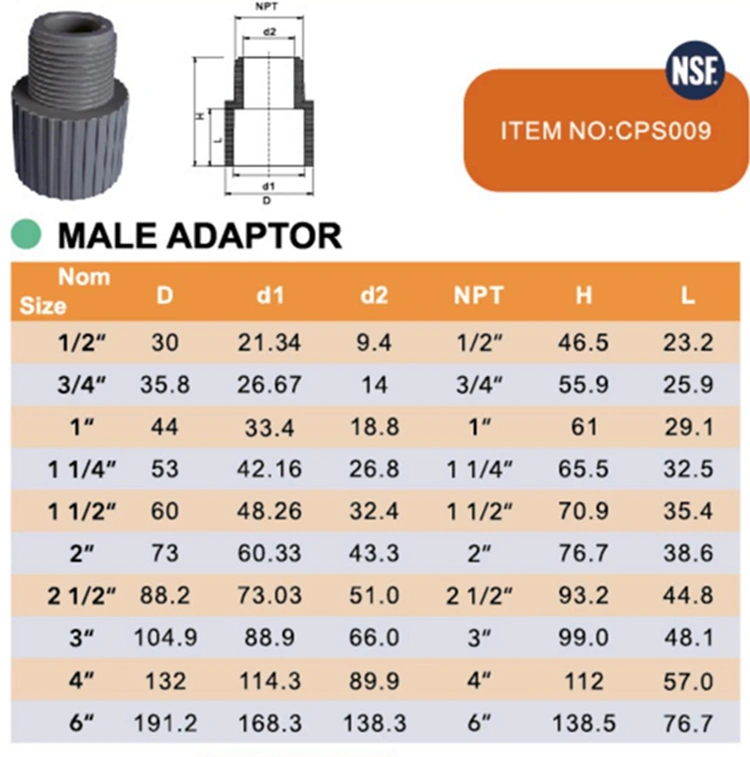

Model NumberCPS009MaterialCPVC
DescriptionMALE ADAPTORSize1/2''-6''
StandardSCH80、ASTM F439Colorlight grey
BrandERATemperature40-50°C（104-122°F）


Main Products：
CPVC resin as the master material The product has high strength, good flexibility, high temperature resistance, corrosion resistance, flame retardant, good insulation performance, no pollution, not easy to aging, light weight, convenient construction and other characteristics, its various performance indicators by the national jia level, provincial testing, identification and certification, have reached or exceeded the domestic level of similar products. The product performance is superior to the traditional asbestos cable tube and ordinary pvc pipe, is the ideal substitute for the traditional power cable sheath. It is mainly used for laying power cables and protecting cables.
1. Sturdy: Since PVC-C is stronger than PP-R, PB and PEX, it requires fewer hooks and brackets. PVC-C can withstand greater pressure. At the same flow rate, compared with PP-R, PB and PEX pipes, PVC-C pipes can use smaller diameters.
2. Easy to install: It can be connected using special fusing agent, and no special tools are needed during installation. It is suitable for both surface and concealed installation.
3. Corrosion resistance: PVC-C is not easily permeable to oxygen, so the metal parts in the system will not corrode due to oxidation.
4. Good flame retardancy: The oxygen index of PVC-C is 60, its combustion ability is very low, it extinguishes immediately after leaving the fire, will not produce fire droplets, and can suppress the generation of smoke and toxic gases.
5. Not affected by residual chlorine: Unlike polyolefin pipes, PVC-C pipes are not affected by residual chlorine in the water and will not crack or collapse after long-term use.
6. Acid and alkali resistance: PVC-C has strong anti-corrosion ability against both acid and alkali, and can be used to transport HCL and NaOH liquids.
