PPR DIN PIPES AND FITTINGS
ERA Piping Systems, PPR Pipe Fitting ,PPR WELD IN SADDLE, PRS001, (DIN8077/8088) , DVGWSystem: ERA PPR pipes, due to its high impact strengh and light weight makes it most reliable and sophisticated system to be employed in plumbing applictions and water supply(hot and cold).
Scope：
This specification covers PPR pipe and fittings for pressure applications.This system is Intended for pressure applications where the operating temperature will not exceed 95 ℃.
We produce PPR Pipes in 3 Pressure rating i.e. PN 10, PN 16, PN 20 and size from 16mm to 160mm and standard length is 4 mtr. However, length can be customized on volume requirements.
ERA’s PPR is the ideal and above all cost-effective solution for piping installations in schools, hospitals, hotels, office blocks as well as in fields of modular construction.
Specification：Pipe and fittings shall be manufactured from 100% new PPR raw material from Korea.
These PPR systems have a high temperature and pressure resistance and are suitable for drinking water.
PPR is very economically placed in comparison to most of the alternative piping system.
PPR pipe has a smooth inner surface, thus not letting any calcification to happen inside the pipe.
PPR has been designed and produced as a piping system for hot and cold water supply as well as for heating applications.
Referenced Standards：DIN 8077&DIN8078 DVGW examination certificate

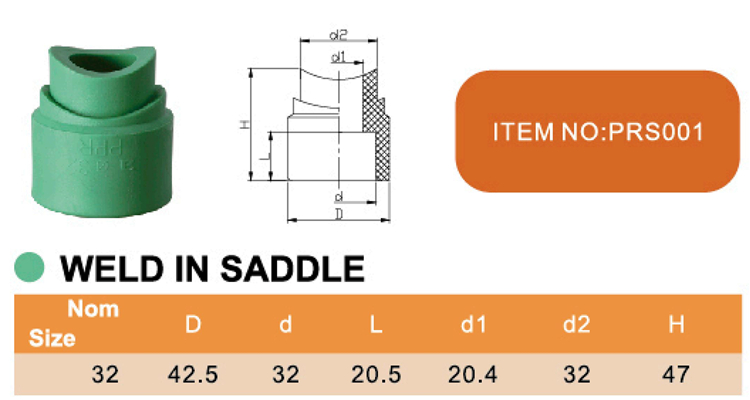

Specification：| Model Number | PRS001 | Material | PPR |

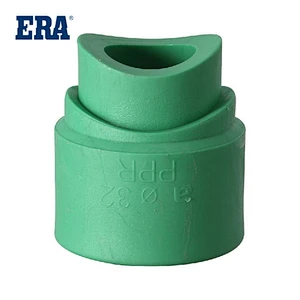

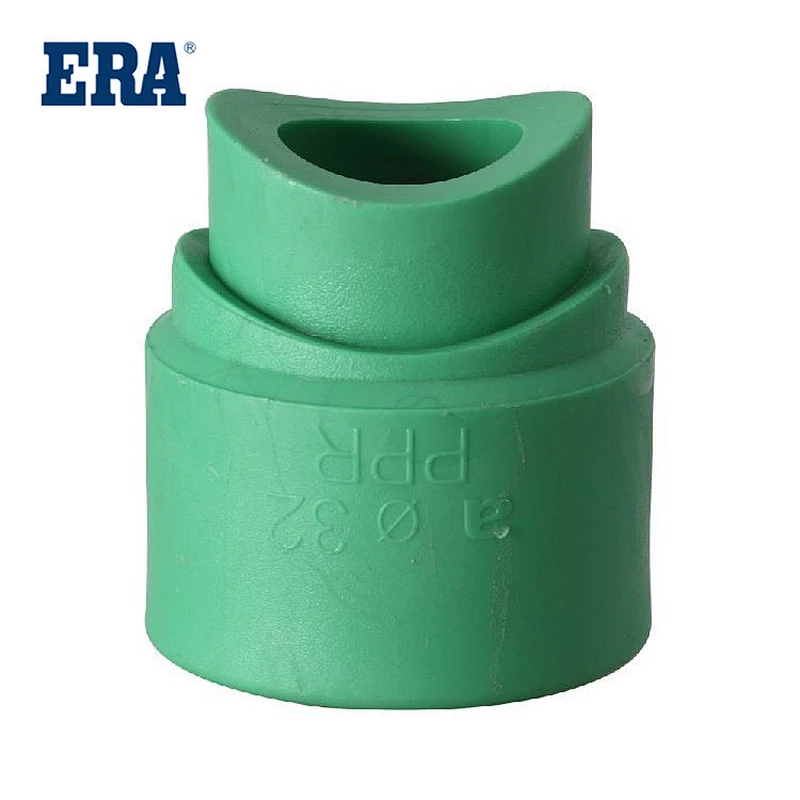

| Description | PPR WELD IN SADDLE | Size | 32MM |
| Standard | DIN8077/8088 | Color | GREEN、GREY |
| Brand | ERA | Temperature | Max 95°C / 203°F |
| Connection | Socket | Certificate | DVGW |
Main Products：
PPR pipe is a pipe widely used in the water supply field. Its main features include:
Non-toxic and hygienic: The raw material molecules of PPR pipe are mainly composed of carbon and hydrogen elements and do not contain toxic substances harmful to the human body. Therefore, it is a hygienic and reliable pipe material that can be used to transport hot and cold water as well as pure drinking water.
Thermal insulation and energy saving: The thermal conductivity of PPR pipe is very low, only 1/200 of that of steel pipe, which means that its thermal insulation performance is very good. Significant energy savings can be achieved when used in hot water systems.
Better heat resistance: The Vicat softening point of PPR pipe is 131.5°C, and the maximum working temperature can reach 95°C, which makes it suitable for hot water systems in most building water supply and drainage specifications.
Long service life: Under a suitable working environment, such as an operating temperature of 70°C and a working pressure of 1.0MPa, the normal service life of PPR pipes can reach more than 50 years. At normal temperature (20°C), the service life can even reach more than 100 years.
Easy installation and reliable connection: PPR pipes have good welding performance and can be connected by hot melting or electrofusion. The joints are reliable, and the strength of the connection part is usually higher than the pipe itself.
Good corrosion resistance: Except for its weak resistance to a few oxidants, PPR pipes can resist the erosion of almost all common chemical media and are not prone to rust, corrosion or the breeding of microorganisms.
High quality and low price: Compared with other types of plastic pipes, PPR pipes have lower costs and are easy to construct, so they are more cost-effective in practical applications.
Environmental protection: PPR pipes can be reproduced from recycled materials, which helps reduce the use of new materials and the impact on the environment.
To sum up, PPR pipe has become one of the most commonly used water supply pipes in modern homes and projects due to its excellent performance and relatively economical cost.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
