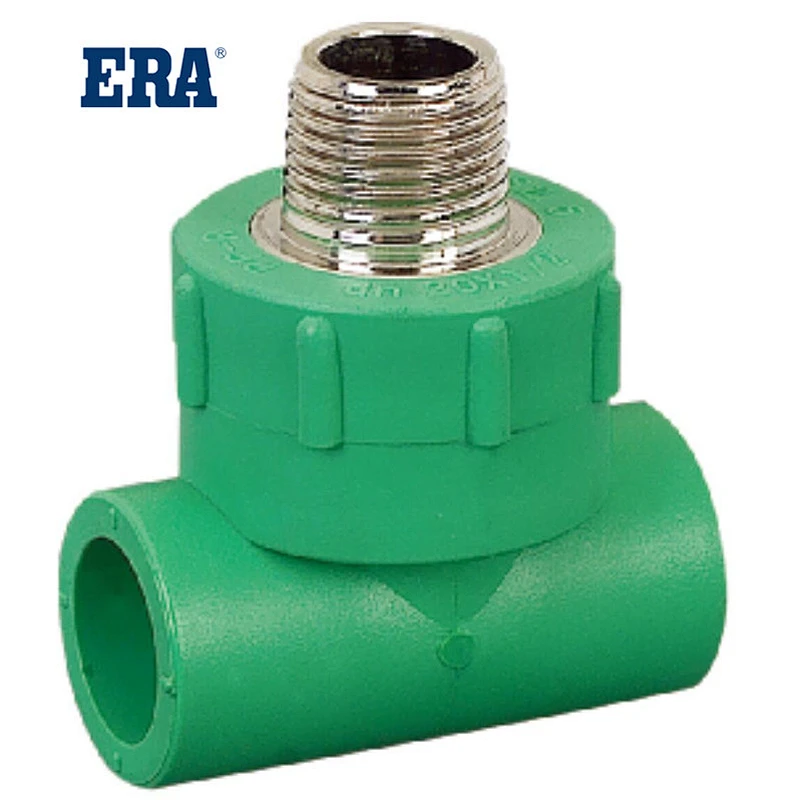

PPR TYPE II Fitting Male Thread Tee

Model NO.: PRIIT04

1) The light weight can greatly reduce the transportation cost and installation construction strength.
2) Hygienic and non-toxic green building materials
3) Energy saving products with heat resistance and thermal insulation
4) Good thermal insulation performance can save a lot of thermal insulation materials and energy.
5) Hot melt connection, safe and reliable
6) Good corrosion resistance, no bacteria, no electrochemical corrosion.
7) Low water flow resistance, smooth inner wall of ppr pipe, no scaling
8) Ppr pipe has no pollution to the environment and will not cause white pollution during production, construction and use. it is a green product.

Product Description

PPR FITTINGS TYPE II
ERA Piping Systems, PPR TYPE II Pipe Fitting , MALE THREAD TEE , PRIIT04

System: ERA PPR pipes, due to its high impact strengh and light weight makes it most reliable and sophisticated system to be employed in plumbing applictions and water supply(hot and cold).

Scope:
ERA’s PPR is the ideal and above all cost-effective solution for piping installations in schools, hospitals, hotels, office blocks as well as in fields of modular construction.

System:
Good long term pressure resistance and easy processing and installation technique give cold and hot water systems made of PP-R pipes an advantage as an alternative to the traditional systems.

PPR systems are available in a wide range of pipes sizes and fittings from 20mm to 63mm.

Referenced Standards: TYPE II

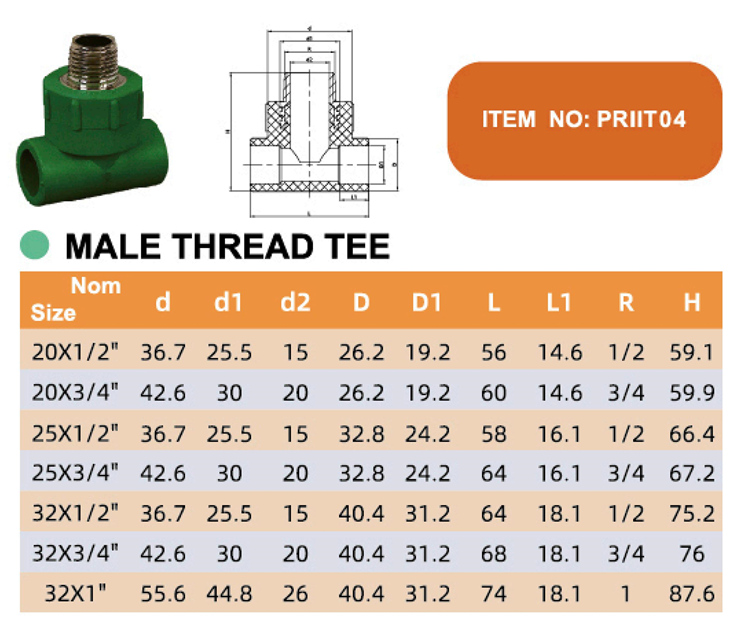

Specification:

Model Number	PRIIT04	Material	PPR
Description	PPR MALE THREAD TEE	Size	20x1/2''-32x1''MM
Standard	TYPE II	Color	GREEN、GREY
Brand	ERA	Temperature	Max 95°C / 203°F
Connection	Socket	Certificate	/

Company introduction

Certificate exhibition

PPR is short for three type polypropylene, also called random copolymerization polypropylene.

It is an extruded tube made of random copolymer polypropylene, which can also be injected into shape. Ethylene is the most common monomer, which affects the physical properties of polypropylene.

Compared with PP plasma, the optical properties, impact resistance, elasticity, melting point and melting point of irregular copolymer are improved obviously. In terms of chemical stability, water vapor isolation, mechanical expression and so on, they are basically consistent with the structural characteristics of homomers.

Used for extrusion, blow molding, injection molding, film and sheet extrusion, used for food packaging materials, pharmaceutical packaging materials and consumer goods.
