ERA BRAND PPR TYPE II Fitting Female Thread Tee,TYPE II STANDARD
ERA BRAND PPR TYPE II Fitting Female Thread Tee,TYPE II STANDARD

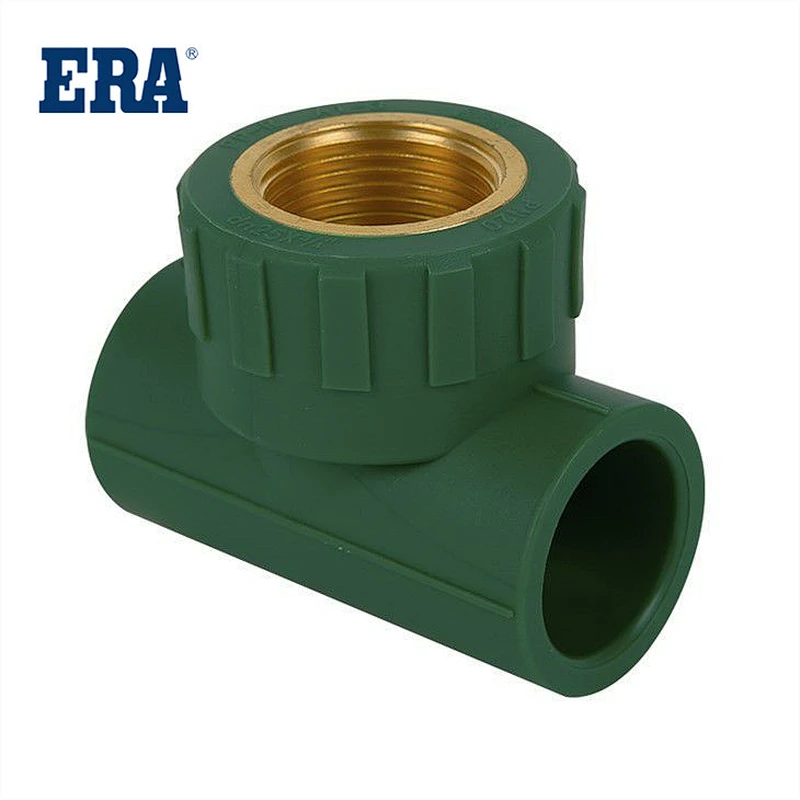

PPR TYPE II Fitting Female Thread Tee
PPR TYPE II Fitting Female Thread Tee
PPR TYPE II Fitting Female Thread Tee
PPR TYPE II Fitting Female Thread Tee
ERA BRAND PPR TYPE II Fitting Female Thread Tee,TYPE II STANDARD
PPR TYPE II Fitting Female Thread Tee
PPR TYPE II Fitting Female Thread Tee
PPR TYPE II Fitting Female Thread Tee
PPR TYPE II Fitting Female Thread Tee

PPR TYPE II Fitting Female Thread Tee

PRIIT03
No chemical action, it is a green building material with reliable sanitary performance.
The installation is convenient and reliable, convenient and time-saving.
Heat preservation and energy saving, with little heat loss for hot water pipeline.
Hot melt connection, safe and reliable
Good corrosion resistance, no bacteria, no electrochemical corrosion.6. Strong heat resistance
Corrosion resistance, no scaling
8. Long service life
PPR FITTINGS TYPE II
ERA Piping Systems, PPR TYPE II Pipe Fitting , FEMALE THREAD TEE , PRIIT03

System:  ERA PPR pipes, due to its high impact strengh and light weight makes it most reliable and sophisticated system to be employed in plumbing applictions and  water supply(hot and cold).

Scope:
ERA’s PPR is the ideal and above all cost-effective solution for piping installations in schools, hospitals, hotels, office blocks as well as in fields of modular construction.

This specification covers PPR pipe and  fittings for pressure applications.This system is Intended for pressure applications where the operating temperature will not exceed  95 ℃.

System:
Good long term pressure resistance and easy processing and installation technique give cold and hot water systems made of PPR pipes an advantage as an alternative to the traditional systems.

Referenced Standards:  TYPE II

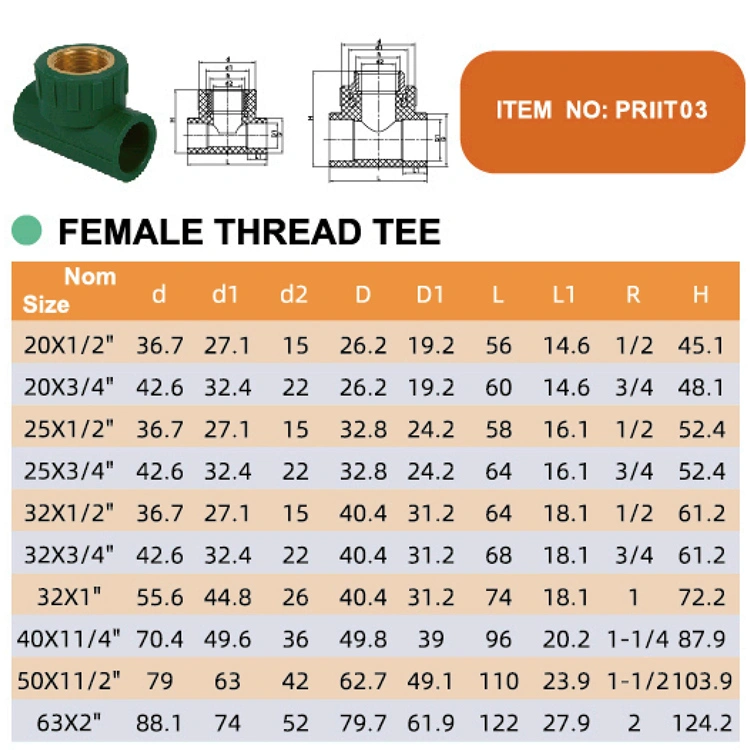

Specification:
Model NumberPRIIT03MaterialPPR
DescriptionPPR FEMALE THREAD TEESize20x1/2''-63x2''MM
StandardTYPE IIColorGREEN、GREY
BrandERATemperatureMax 95°C / 203°F
ConnectionSocket Certificate        /


Company introduction
Certificate exhibition


FAQ
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Hot Tags:  PPR FEMALE THREAD TEE, China, manufacturers, suppliers, factory
