PPR DIN PIPES AND FITTINGS

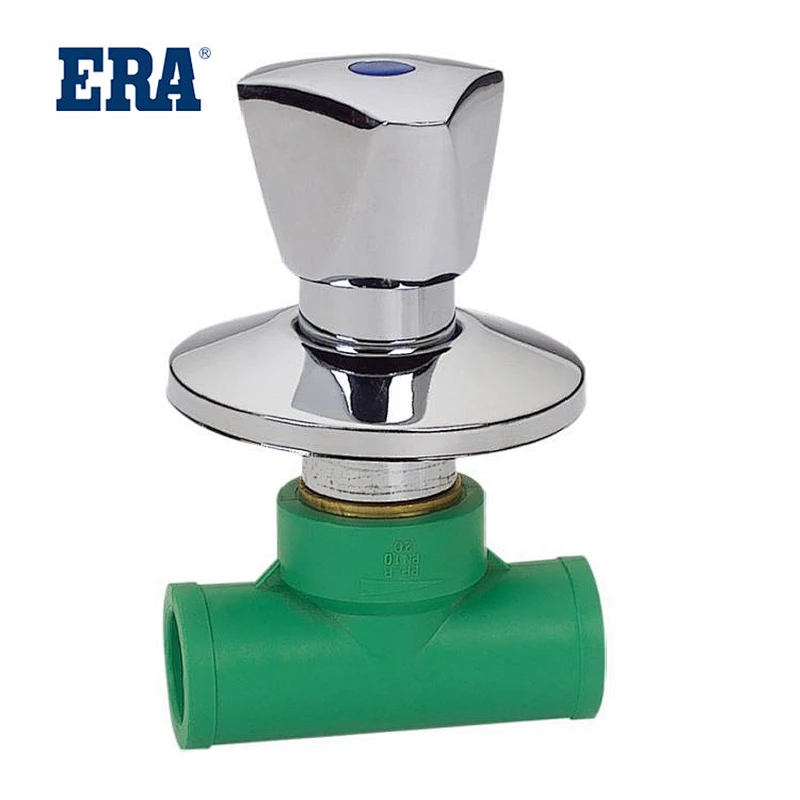

ERA Piping Systems, PPR Pipe Fitting ,I STOP VALVE WITH CROM HANDLE,PR017,(DIN8077/8088) , DVGWRaw material
Raw material -- CPVC ( from JAPAN SEKISUI) , PPR (from Korea HYOSUNG), HDPE (from BOROUGE),
Also Domestic PVC material compounded by YONGGAO research institue ,which can pass NSF certificate.
Scope：PPR pipes and fittings are suitable for hot and cold water transfer in buildings, underfloor and central heating systems. They can also be used for air ducts in industry and agriculture.
We produce PPR Pipes in 3 Pressure rating i.e. PN 10, PN 16, PN 20 and size from 16mm to 160mm and standard length is 4 mtr. However, length can be customized on volume requirements.
ERA’s PPR is the ideal and above all cost-effective solution for piping installations in schools, hospitals, hotels, office blocks as well as in fields of modular construction.
System：This raw material is recommended for the production of pressure pipes including potable water transfer lines, hot and cold water transfer lines, floor heating and also for chemical industry application.
This raw material is recommended for the production of pressure pipes including potable water transfer lines, hot and cold water transfer lines, floor heating and also for chemical industry application.
PPR systems are available in a wide range of pipes sizes and fittings from 16mm to 160mm.
Referenced Standards：DIN 8077&DIN8078 DVGW examination certificate

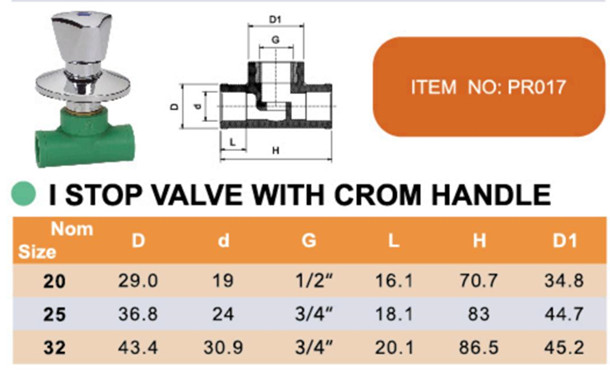

Specification：| Model Number | PR017 | Material | PPR |
| Description | PPR I STOP VALVE WITH CROM HANDLE | Size | 20-32MM |
| Standard | DIN8077/8088 | Color | GREEN、GREY |
| Brand | ERA | Temperature | Max 95°C / 203°F |
| Connection | Socket | Certificate | DVGW |
Main Products：
Advantage：
1. Moderate price, stable performance, heat insulation, corrosion resistance, the inner wall is smooth and no scaling, the pipeline system is safe and reliable, no penetration, the service life can be up to 50 years.
2. High strength, stable performance, sterilization, and not easy to corrosion.
3. The price is relatively cheap, can be bent arbitrarily, smooth surface, convenient construction.
4. Complete variety, pipe fittings supporting more.
5. Light, easy to install, low cost, and not easy to corrupt.
Inspection
Borrowing experimental instruments for testing effectively distinguishes the advantages and disadvantages of products. The national standards stipulate several important test requirements data, such as the aging resistance test of pipes (which is maintained for 8760 hours without failure under a ring stress of 1.9MPa and a test temperature of 110 ℃), the stability test of pipeline systems (5000 cold and hot cycles), and impact resistance test. Therefore, users can request manufacturers or merchants to provide the above test reports for verification when selecting. Additionally, it should be noted that the national standard also has an important requirement for the raw materials used in pipes and fittings, which is the melt index. The national standard requires that the change in melt index before and after processing should not exceed 30%, and there is also a requirement in the industry that the melt index of raw materials should not exceed 0.5g/10min.
FAQ：
1.What is your MOQ?
Our MOQ is usually 5 CTNS.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is the shipping port?
We ship the goods via Ningbo or Shanghai port.
4.What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.
7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.
8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
