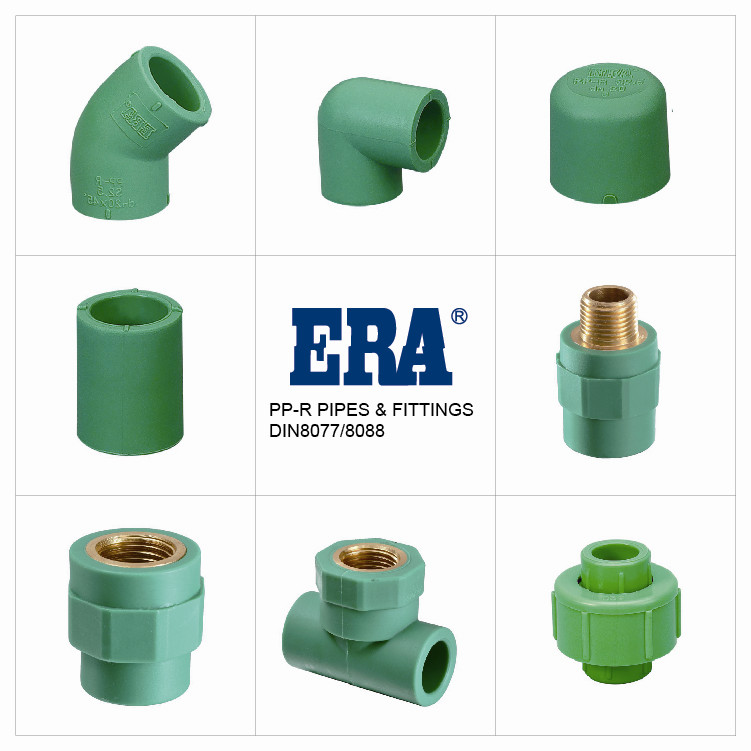

PPR DIN PIPES AND FITTINGS

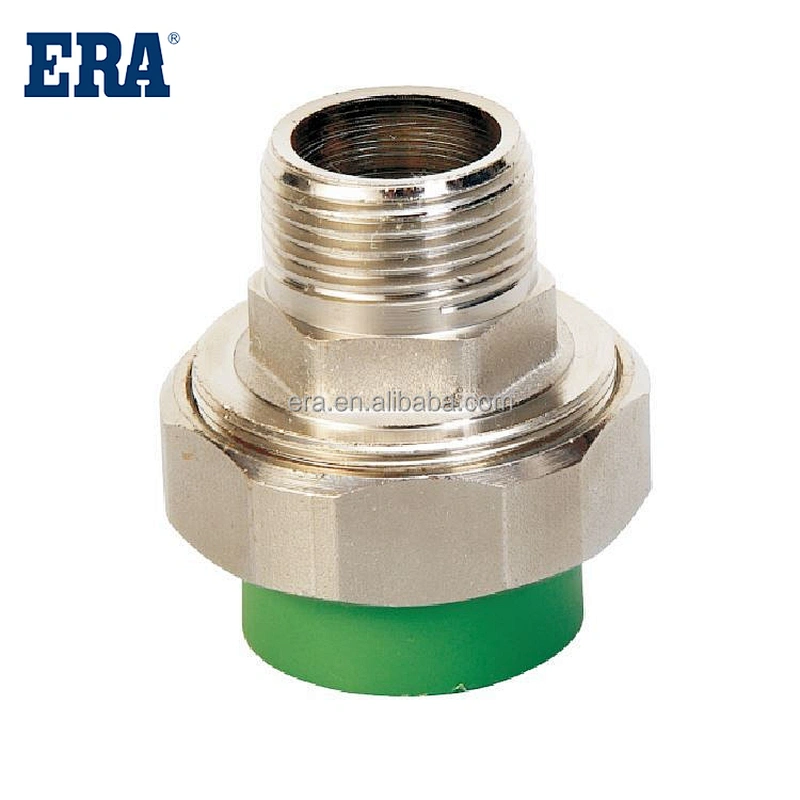

ERA Piping Systems, PPR Pipe Fitting ,MALE THREAD UNION, PR023 ,(DIN8077/8088) , DVGWSpecification：
PPR pipe has a smooth inner surface, thus not letting any calcification to happen inside the pipe.
PPR is very economically placed in comparison to most of the alternative piping system.
PPR has been designed and produced as a piping system for hot and cold water supply as well as for heating applications.
Scope：PPR pipes and fittings are suitable for hot and cold water transfer in buildings, underfloor and central heating systems. They can also be used for air ducts in industry and agriculture.
We produce PPR Pipes in 3 Pressure rating i.e. PN 10, PN 16, PN 20 and size from 16mm to 160mm and standard length is 4 mtr. However, length can be customized on volume requirements.
System：This raw material is recommended for the production of pressure pipes including potable water transfer lines, hot and cold water transfer lines, floor heating and also for chemical industry application.
PPR systems are available in a wide range of pipes sizes and fittings from 16mm to 160mm.

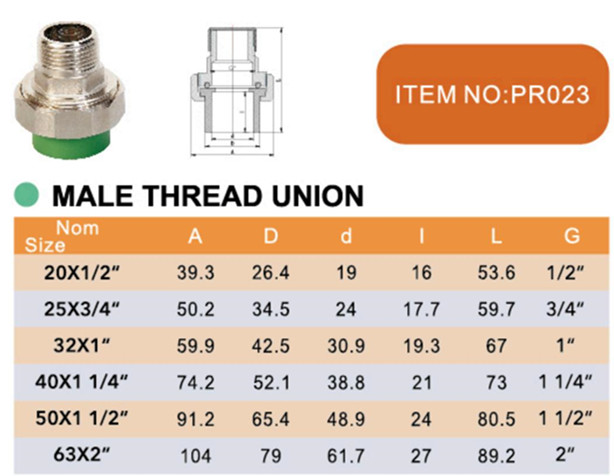

Specification：| Model Number | PR023 | Material | PPR |
| Description | PPR MALE THREAD UNION | Size | 20x1/2''-63x2''MM |
| Standard | DIN8077/8088 | Color | GREEN、GREY |
| Brand | ERA | Temperature | Max 95°C / 203°F |
| Connection | Socket | Certificate | DVGW |
Main Products：
PPR pipe features: long life in pipeline system temperature is 70 ℃ and the working pressure of 1.0 Mpa can use for a long time, under the condition of service life can reach more than 50 years. Low temperatures of up to 100 years life. Easy installation, reliable, USES the hot melt connection, several seconds to complete a joint connection, connected to the metal pipe and water equipment, USES the high quality nickel plated copper insert, safe and reliable.
PPR pipe is the main purpose of the following:
1, the structure of the hot and cold water systems, including the central heating system;
2, building heating system, including the floor, wall panels and radiation heating system;
3, can be directly drinking pure water supply system;
4, the central (concentration) air conditioning system; 5, transport or discharge of chemical medium such as industrial piping system.
