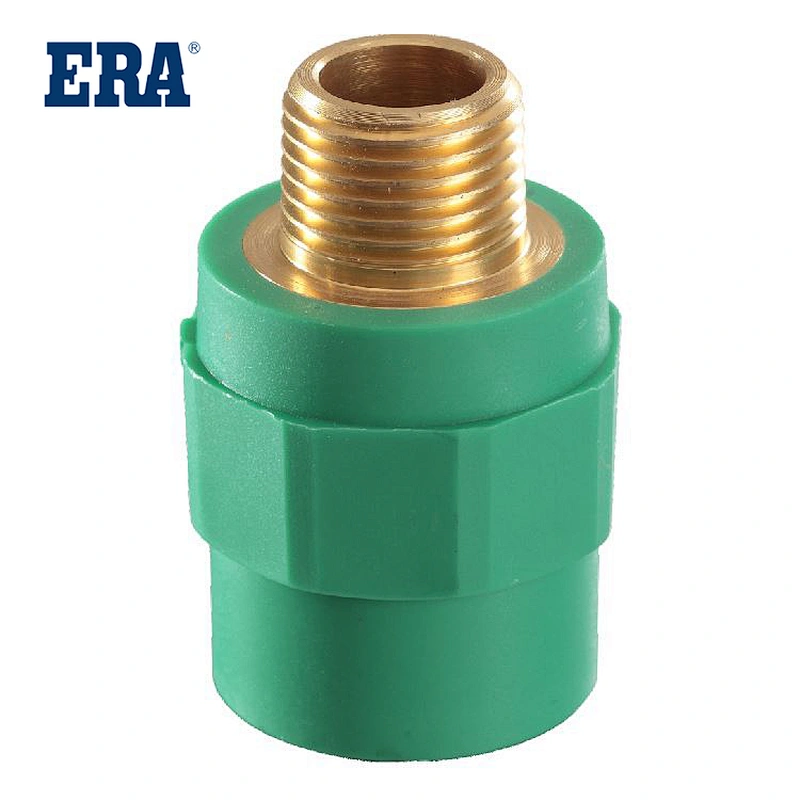

PPR II MALE THREAD BUSH
PPR II MALE THREAD BUSH
PPR II MALE THREAD BUSH
PPR II MALE THREAD BUSH
PPR II MALE THREAD BUSH
PPR II MALE THREAD BUSH
PPR II MALE THREAD BUSH
PPR II MALE THREAD BUSH
PPR II MALE THREAD BUSH
PPR II MALE THREAD BUSH
PPR II MALE THREAD BUSH

PPR II MALE THREAD BUSH

PR027
1. Ppr pipe is environmentally friendly: ppr pipe is environmentally friendly. Its raw material molecules are only carbon and hydrogen, and there are no harmful and toxic elements. It is also very sanitary. It can not only be used as a cold and hot water pipe, but also as a pure drinking water system.
2. Thermal insulation and energy conservation of ppr pipe: the thermal conductivity of ppr pipe is 0.21w/mk, and the ratio to steel pipe is 1/200, which shows that its thermal insulation and energy conservation effect is very good.
3. Ppr pipe has good heat resistance: ppr pipe has good heat resistance, its Vicat softening point is 131.5 ℃, and its maximum working temperature can reach 95 ℃, which can meet the requirements of hot water system in building codes.
4. The service life of ppr pipe is long: ppr pipe can work at 70 ℃, and its service life can reach more than 50 years. Compared with other materials, its service life is longer. If it works at 20 ℃ at room temperature, its service life can reach more than 100 years.
5. Convenient installation of ppr pipes: because ppr pipes have good welding performance, pipes and pipe fittings can be connected by hot melting and electric melting. The installation is very convenient and the joints are very reliable.

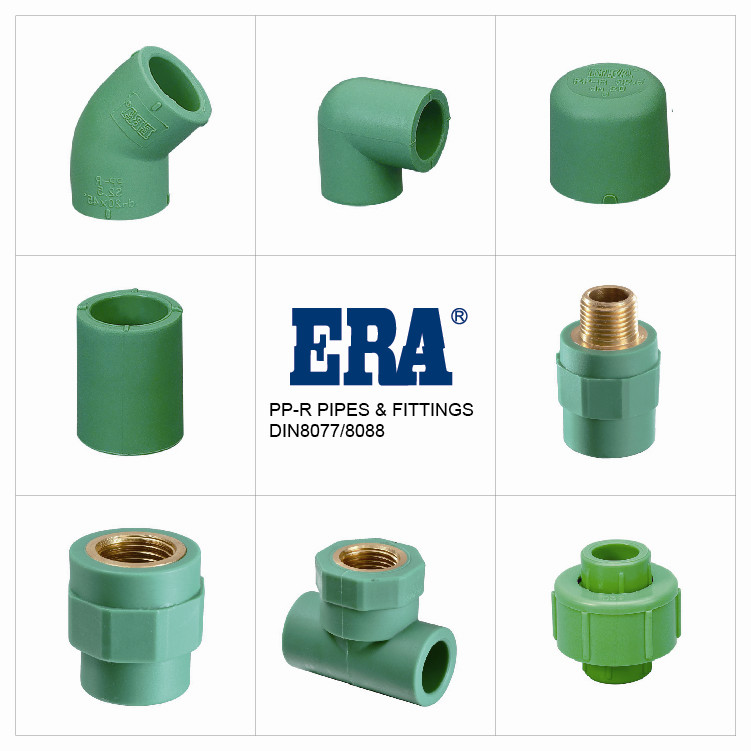

PPR DIN PIPES AND FITTINGS

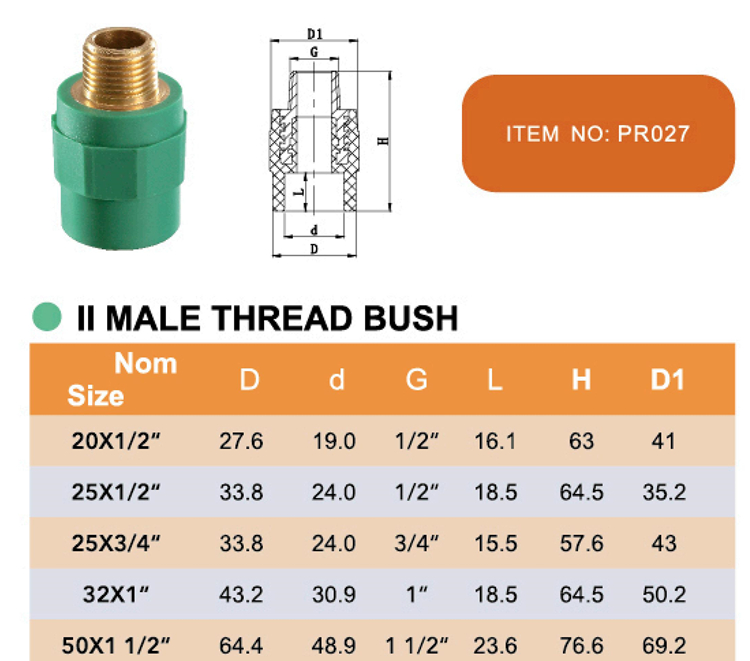

ERA Piping Systems, PPR Pipe Fitting ,II MALE THREAD BUSH, PN12.5/PN20/PN16/PN25, PR027, (DIN8077/8088) , DVGW

Specification：
Model NumberPR027MaterialPPR
DescriptionPPR II MALE THREAD BUSHSize20x1/2''-50x1 1/2''
StandardDIN8077/8088ColorGREEN、GREY
BrandERATemperatureMax 95°C / 203°F
ConnectionSocket CertificateDVGW

Main Products：
1, health: no chemical effect, belongs to green building materials. The raw material of PP-R is polyolefin, whose molecules are composed of carbon and hydrogen elements only, and its health performance is reliable.

2. Easy and reliable installation: the notification hot melt connection can complete a joint connection in a short time, convenient and time-saving installation.

3, heat preservation and energy saving: thermal conductivity is 0.24W/m·k, only for the metal pipe is 1%, for hot water pipe heat loss is very little.

4, light weight, high specific strength: the proportion is about one of the eight steel pipe, high stress test strength, good toughness, good impact resistance.

5, the internal and external walls of the product are smooth, the resistance of the water is small, and the energy consumption of the conveying fluid system is low.

6, strong heat resistance: conveying water long-term use of working temperature of 70℃, short time use of high temperature resistance of 95℃.

7, corrosion resistance, no scaling: can be exempted from pipeline scaling blockage and basin, bathtub yellow rust.

8, long service life: just hidden good service life can reach more than 50 years.

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
