PR029
1. Non toxic and hygienic. It is not only used for cold and hot water pipes, but also for purified drinking water systems.
2. Heat preservation and energy conservation.
3. Good heat resistance, which can meet the use requirements of hot water system in building water supply and drainage specifications.
4. Long service life.
5. It is easy to install and firmly connected.
Thermal insulation and energy conservation of ppr pipe: the thermal conductivity of ppr pipe is 0.21w/mk, and the ratio to steel pipe is 1/200, which shows that its thermal insulation and energy conservation effect is very good.
PPR DIN PIPES AND FITTINGS

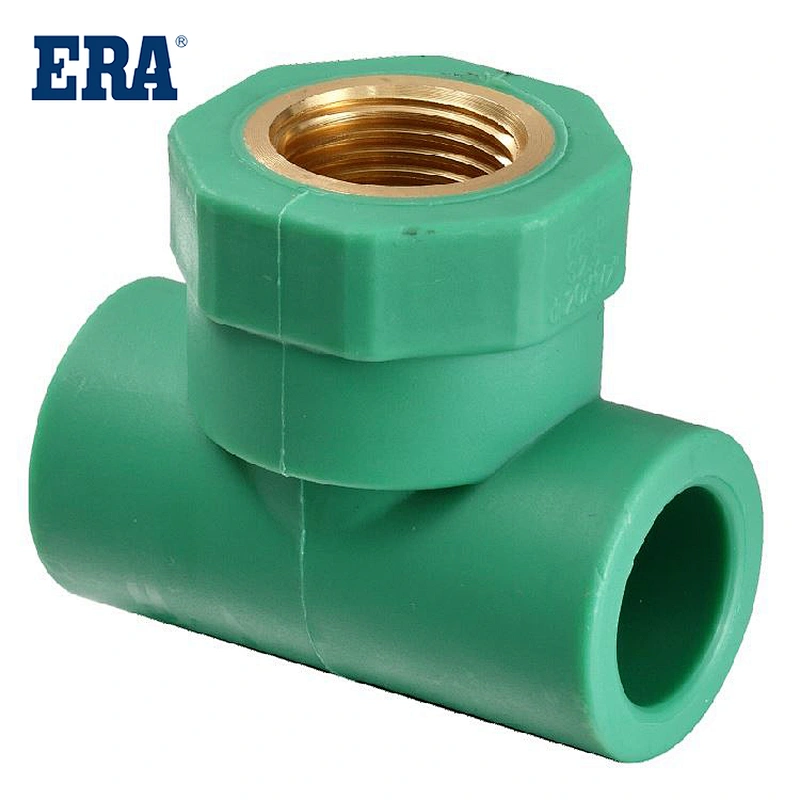

ERA Piping Systems, PPR Pipe Fitting , II FEMALE THREAD TEE, PR029, (DIN8077/8088) , DVGW

System：ERA PPR pipes, due to its high impact strengh and light weight makes it most reliable and sophisticated system to be employed in plumbing applictions and  water supply(hot and cold).

Scope：
PPR pipes and fittings are suitable for hot and cold water transfer in buildings, underfloor and central heating systems. They can also be used for air ducts in industry and agriculture.

Specification：
Pipe and fittings shall be manufactured from 100% new PPR raw material from Korea.

These PPR systems have a high temperature and pressure resistance and are suitable for drinking water.

PPR pipe has a smooth inner surface, thus not letting any calcification to happen inside the pipe.

PPR has been designed and produced as a piping system for hot and cold water supply as well as for heating applications.

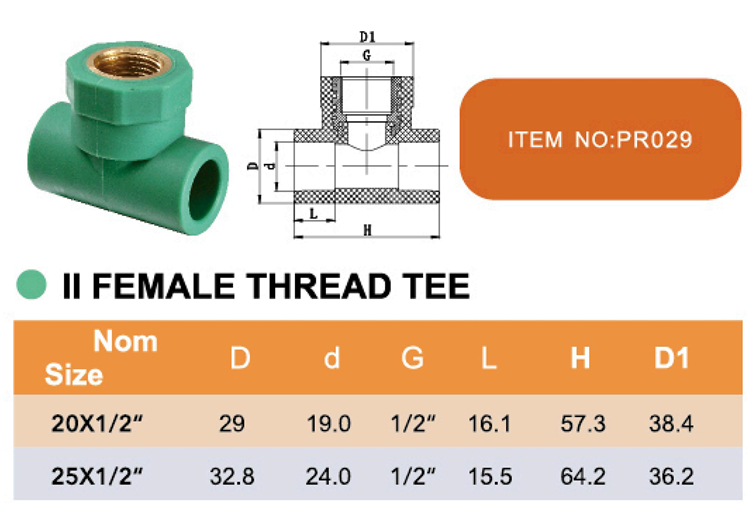

Specification：
Model NumberPR029MaterialPPR
DescriptionPPR II FEMALE THREAD TEESize20x1/2''、25x1/2''
StandardDIN8077/8088ColorGREEN、GREY
BrandERATemperatureMax 95°C / 203°F
ConnectionSocket CertificateDVGW

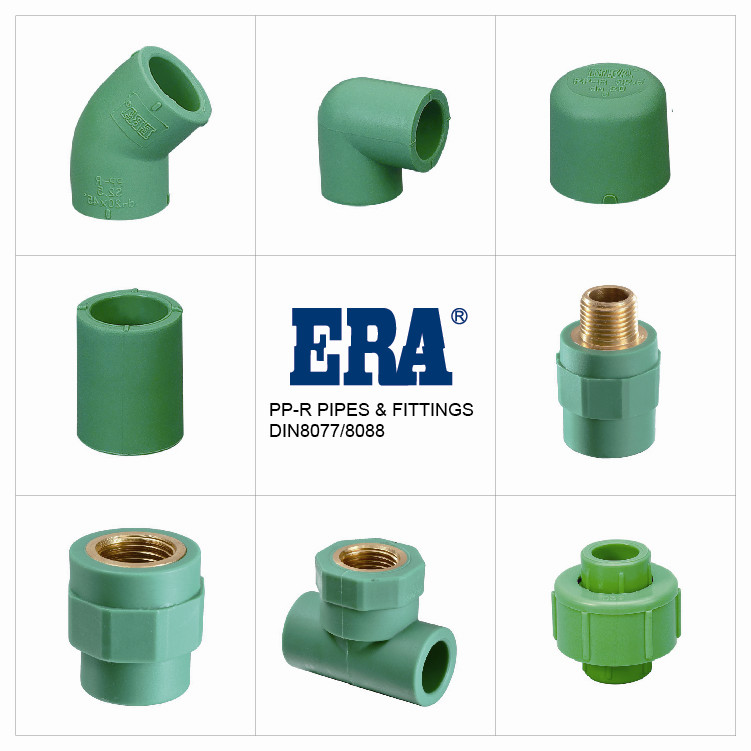

Main Products：

PPR advantages：
1, non-toxic, good health performance: heating PPR pipe after strict testing, fully meet the requirements of the national drinking water standards, can be used in drinking water and food industry pipeline system.

2, corrosion resistance, no scaling: PP-R pipe has good corrosion resistance, no scaling, no bacteria, can avoid pipe scaling blockage and basin, bathtub yellow rust worry.

3, the inner wall is smooth, the flow resistance is small: the inner wall of PP-R tube is smooth, the flow resistance is small, and the flow volume is large. Compared with the inner diameter metal, the flow volume can be increased by more than 30%.

4, high mechanical strength: heating PPR pipe toughness, impact resistance, high mechanical strength, especially in low temperature, high temperature environment selection is more suitable.

5, light weight, convenient installation, reliable.

6. High temperature resistance and good thermal insulation performance: softening temperature of PPR pipe for heating is 131. 5 degrees, allow in long-term continuous working pressure, can transport water temperature up to 95 degrees of hot water. This product also has good thermal insulation performance, thermal conductivity is about 1/200 of the metal tube, reducing the heat loss in the process of hot water transportation

FAQ：
1.What is your MOQ?
 Our MOQ is usually 5 CTNS.

2.What is your delievery time?
 The time of delievery is around 30-45days.

3.What is the shipping port?
 We ship the goods via Ningbo or Shanghai port.

4.What is your payment terms?
 We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

5.How should I contact you?
 You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Taizhou Zhejiang Province,China.
If you would like to have a visit, you are much welcome.

7.How about the samples?
We could send you the samples ,most samples are free to send to most places in China.If sent to other countries,transport fee shoule be paid by you.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 ERA is a listed company. Everything can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

Our Services：
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder.
