System：ERA PPR pipes, due to its high impact strengh and light weight makes it most reliable and sophisticated system to be employed in plumbing applictions and  water supply(hot and cold).

Scope：
PPR pipes and fittings are suitable for hot and cold water transfer in buildings, underfloor and central heating systems. They can also be used for air ducts in industry and agriculture.

We produce PPR Pipes in 3 Pressure rating i.e. PN 10, PN 16, PN 20 and size from 16mm to 160mm and standard length is 4 mtr. However, length can be customized on volume requirements.

This specification covers PPR pipe and  fittings for pressure applications.This system is Intended for pressure applications where the operating temperature will not exceed  95 ℃.

The integrated system is easy to use and install, fulfills the stringent requirements of the water sector and offers excellent value for money.

Referenced Standards：DIN 8077&DIN8078  DVGW examination certificate

Specification：
These PPR systems have a high temperature and pressure resistance and are suitable for drinking water.

PPR pipe and fittings conforming to DIN 8077&DIN 8078. Pipe and fittings shall be manufactured as a system and be the product of one manufacturer.

PPR is light weight, easy to install, and reduces the number of fittings needed in a system because of its flexibility.

PPR is very economically placed in comparison to most of the alternative piping system.

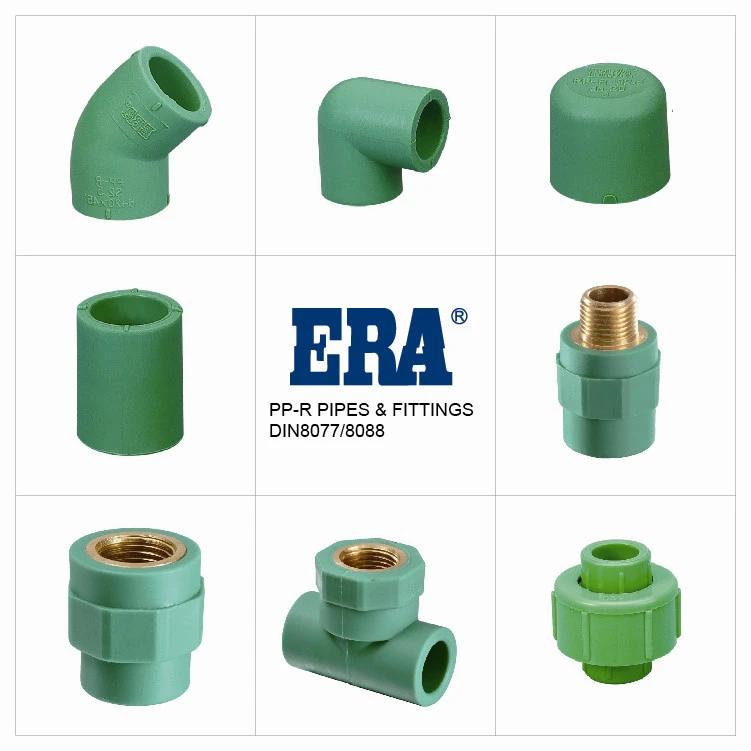

Main Products：

PPR features：
1. Hygiene: no chemical effect, it is a green building material. PP-R raw material is polyolefin, its molecules are only composed of carbon and hydrogen elements, and its hygienic performance is reliable.
2. Installation is convenient and reliable: using hot-melt connection, a joint connection can be completed in a short time, making installation convenient and time-saving.
3. Insulation and energy saving: The thermal conductivity is 0.24W/m·k, which is only one-twentieth that of metal pipes. It is used in hot water pipes with very little heat loss.
4. Light weight and high specific strength: The specific gravity is about one of eight of steel pipes. It has high strength in pressure test, good toughness and good impact resistance.
5. The inner and outer walls of the product are smooth, the resistance to water flow is small, and the energy consumption of the fluid delivery system is low.
6. Strong heat resistance: the working temperature for conveying running water is 70℃ for long-term use, and the high temperature resistance can reach 95℃ for short-term use.
7. Corrosion-resistant and non-scaling: It can avoid scaling and clogging of pipes and yellow spots and rust in basins and bathtubs.
8. Long service life: the service life can be more than 50 years if used properly.
