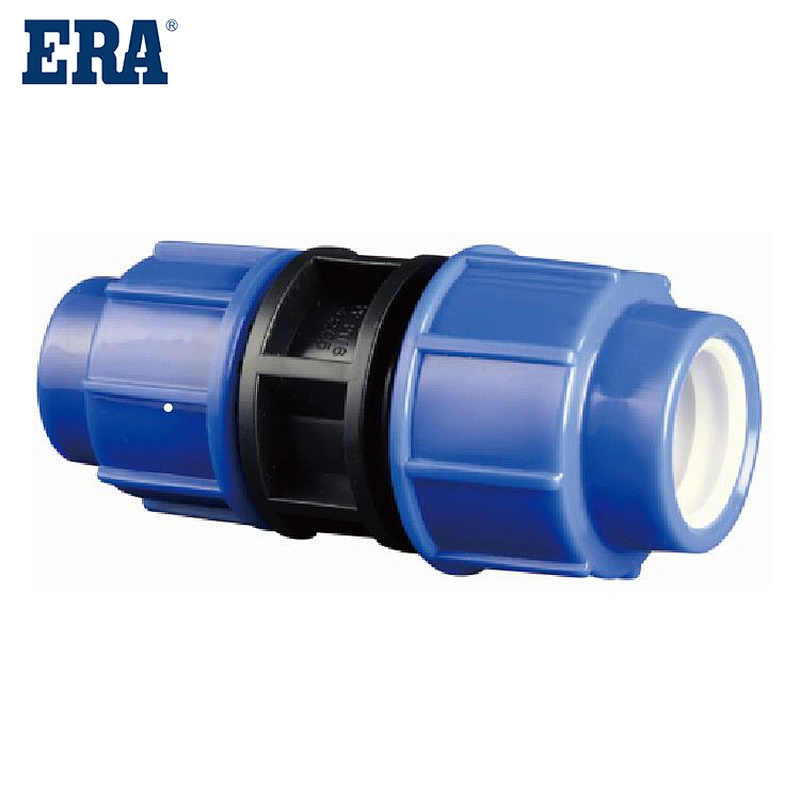

ERA Piping Systems, PP Compression Fitting Valves & Filters , PP pipe fittings Reducing Socket , socket plastic PT011 , WRAS

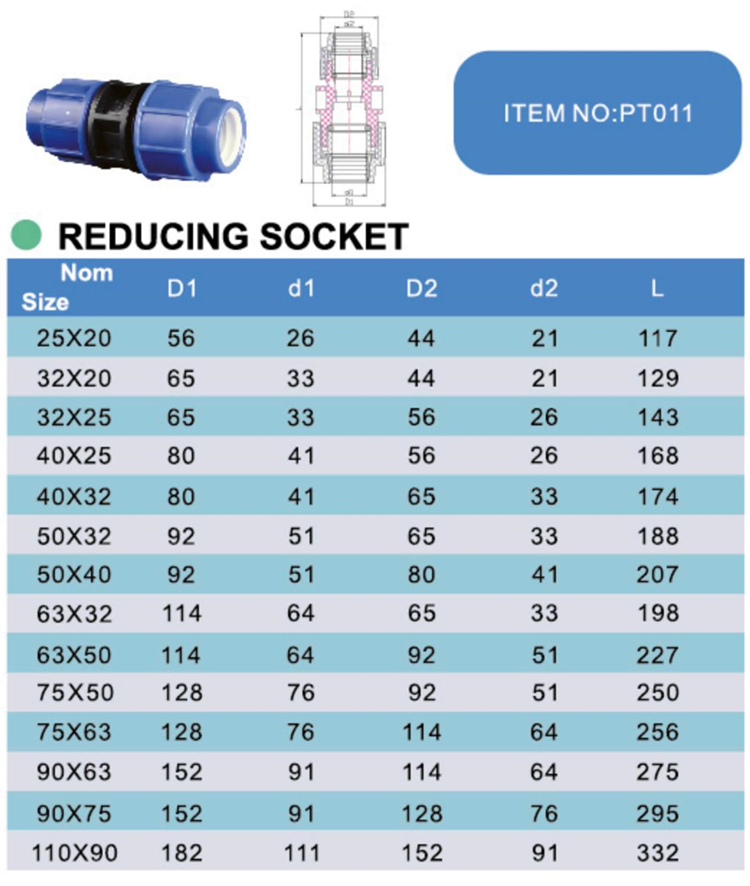

| Model Number | PT011 | Material | PP |
| Description | REDUCING SOCKET | Size | 25*20-110*90MM |
| Standard | ENISO15874AS/NZS4129 | Color | BLUE CAP BALCK BODY |
| Working Pressure | PN16 ,16Bar, 1.6Mpa | Temperature | Max 60°C / 140°F |
| Connection | Socket OR BS THREAD | Certificate | CE WRAS WATERMARK |

ERA PN16 PP Compression Reducing tee Plastic Fitting

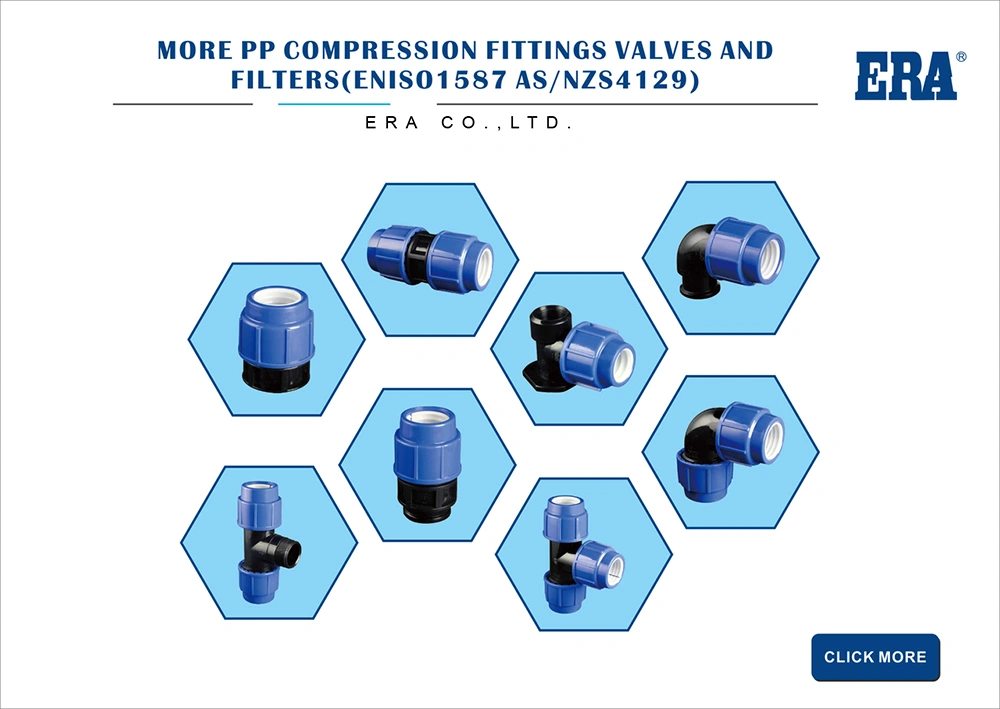

PP compression fittings
ERA Mechanical Compression Fitting is a fitting that connect piping elements which require physical force to develop a seal or produce alignment. There are several materials of compression fittings, such as: Steel, Brass, Plastic. The most plastic material used is PP, there are also PE or PVC compression fittings.
PP compression fittings are widely used in water supply and irrigation. ERA mechanical fittings are made by high quality PP material with UV protection, both material and fittings are approved use with drinking water. The threaded version is BSP.
The high-quality material used in the product has an application in the area of water distribution, irrigation, swimming pools, and cable conduits.
Equipped with 800 injection machines, 163 extrusion machines and 8000 moulds, ERA PIPING (ZHEJIANG) co., ltd. reaches a sales turnover of USD 398,700,000 in 2012, including export sales of USD 47,000,000 covering 224 countries all over the would.
ERA PIPING (ZHEJIANG) Co., Ltd. strictly follows ISO9001 quality system and ISO 14001 environment system to arrange manufacturing. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, ERA PIPING (ZHEJIANG) Co, Ltd ensures that every single product meets the corresponding inspection standard.


Polypropylene PP pipe fittings light weight, non-toxic, good performance, and can be steam disinfection, a wide range of applications.
1. In terms of household necessities, it can be used as edible tableware, POTS, baskets, filters and other kitchen utensils, condiment containers, snack boxes, cream boxes and other table supplies, bath basins, buckets, chairs, bookshelves, milk crates and toys.
2, household appliances, can be used as refrigerator parts, electric fan motor cover, washing machine tank bucket, hair dryer parts, hair curler, TV back cover, record player and radio cassette player shell.
3, can also be used for medical syringes and containers, infusion tubes and filters, etc.
4, automotive parts, chemical pipeline, storage tank, equipment lining, valves, filter plate frame, distillation tower with Pall ring packing;
5. Transport containers, food and beverage turnover boxes, packaging films, heavy packaging bags, binding materials and tool measuring boxes, document boxes, jewelry boxes, musical instrument boxes and other boxes;
6, all kinds of clothing supplies, carpets, artificial grass and artificial skiing venues.
7, can also be used as building materials, agriculture, forestry, animal husbandry, deputy, fishing with a variety of instruments, ropes and nets.
