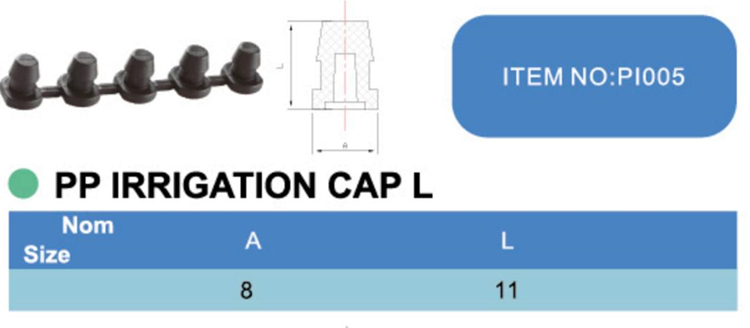

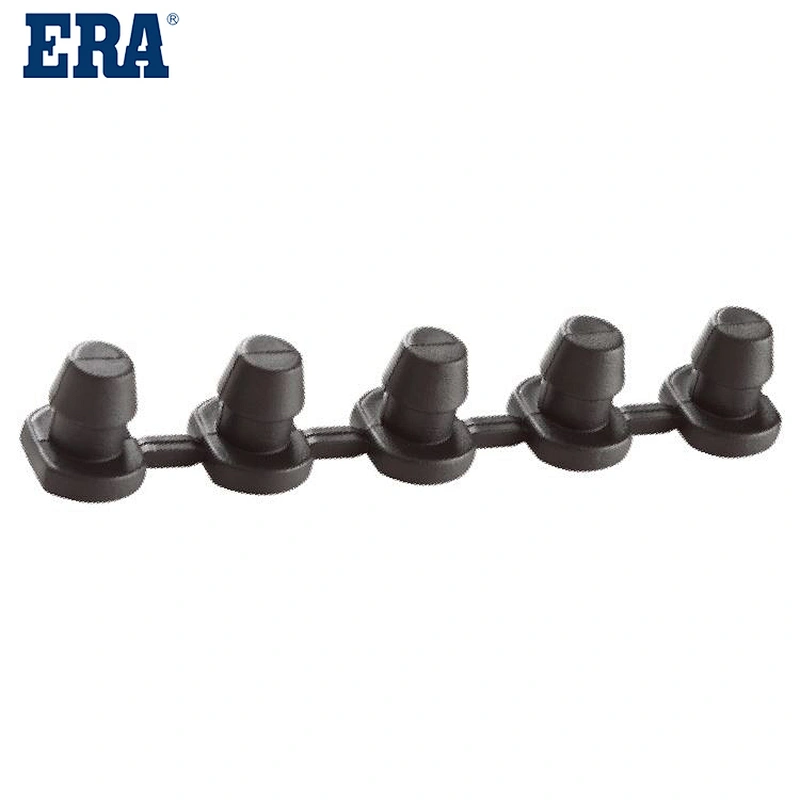

ERA Piping Systems, PP Compression Fitting Valves & Filters , PP Compression PP Irrigation CAP L , PI005 , WRAS

ERA PN16 PP Compression Reducing tee Plastic Fitting
PP compression fittings
ERA Mechanical Compression Fitting is a fitting that connect piping elements which require physical force to develop a seal or
produce alignment. There are several materials of compression fittings, such as: Steel, Brass, Plastic. The most plastic material
used is PP, there are also PE or PVC compression fittings.
PP compression fittings are widely used in water supply and irrigation. ERA mechanical fittings are made by high quality PP
material with UV protection, both material and fittings are approved use with drinking water. The threaded version is BSP.
The high-quality material used in the product has an application in the area of water distribution, irrigation, swimming pools, and cable conduits.


Specification：
Moreover, our PP Compression Fitting has an optimum sealing which works under all the conditions.
With an adequate combination of these fittings it is possible to design and pressure piping application of fluide with PE pipes



Referenced Standards：EN ISO1587 ; AS/NZS4129
You should slide the nut on the pipe and after that place the compression ring. Next, all that is left is to slide the pipe directly into the fitting and make sure that the nut is tightened as required.

Basic performance of PP

1. PP physical properties

Non-toxic, odorless, tasteless opalescent high crystalline polymer with a relative molecular weight of about 80,000-150,000.

Low density: 890-910kg/m3, is one of the lightest plastic varieties.

Strong hydrophobicity: water absorption rate of 24h is only 0.01%.

Formability is good, but the shrinkage rate is large, thick wall products are easy to sag. Product surface luster is good, easy to color.

2. Mechanical properties

PP has excellent mechanical properties due to its high crystallinity and regular structure. However, at room temperature and low temperature, due to the high degree of molecular structure regularity, so the impact strength is poor. The most outstanding performance of PP is the resistance to bending fatigue.

3. Thermal performance

PP has good heat resistance, products can be sterilized at more than 100℃ temperature, in the condition of no external force, 150℃ does not deformation. Embrittlement temperature is -35℃, below -35℃ will occur embrittlement, cold resistance is not as good as PE.

The increase of isometric or decrease of molecular weight is beneficial to the improvement of thermal properties.

4. Chemical stability

The chemical stability of PP is very good, in addition to being eroded by concentrated sulfuric acid, concentrated nitric acid, other chemical reagents are relatively stable; But low molecular weight aliphatic hydrocarbon, aromatic hydrocarbon and chlorinated hydrocarbon can make polypropylene softening and swelling, at the same time its chemical stability with the increase of crystallinity and improve, so PP is suitable for making a variety of chemical pipes and accessories, corrosion prevention effect is good.

5. Electrical performance

The high frequency insulation performance of PP is excellent, because it almost does not absorb water, so the insulation performance is not affected by humidity. It has a high dielectric coefficient, and with the rise of temperature, can be used to make heated electrical insulation products. Its breakdown voltage is also very high, suitable for use as electrical accessories. Good voltage resistance, arc resistance, but high electrostatic degree. Due to the existence of lateral methyl in PP, tertiary carbon atoms alternately appear on the molecular chain, and tertiary carbon atoms are very easy to oxidized when in contact with copper ions, resulting in poor oxidation resistance and radiation resistance of polypropylene. Therefore, in the use of copper contact, copper inhibitors must be added.

6. Weather resistance

PP is very sensitive to UV, so it is necessary to add additives to improve its aging resistance. Ultraviolet absorbent and ultraviolet quenching agent are commonly used. What needs to be specifically pointed out here is the brittleness and toughness transition temperature of PP.
