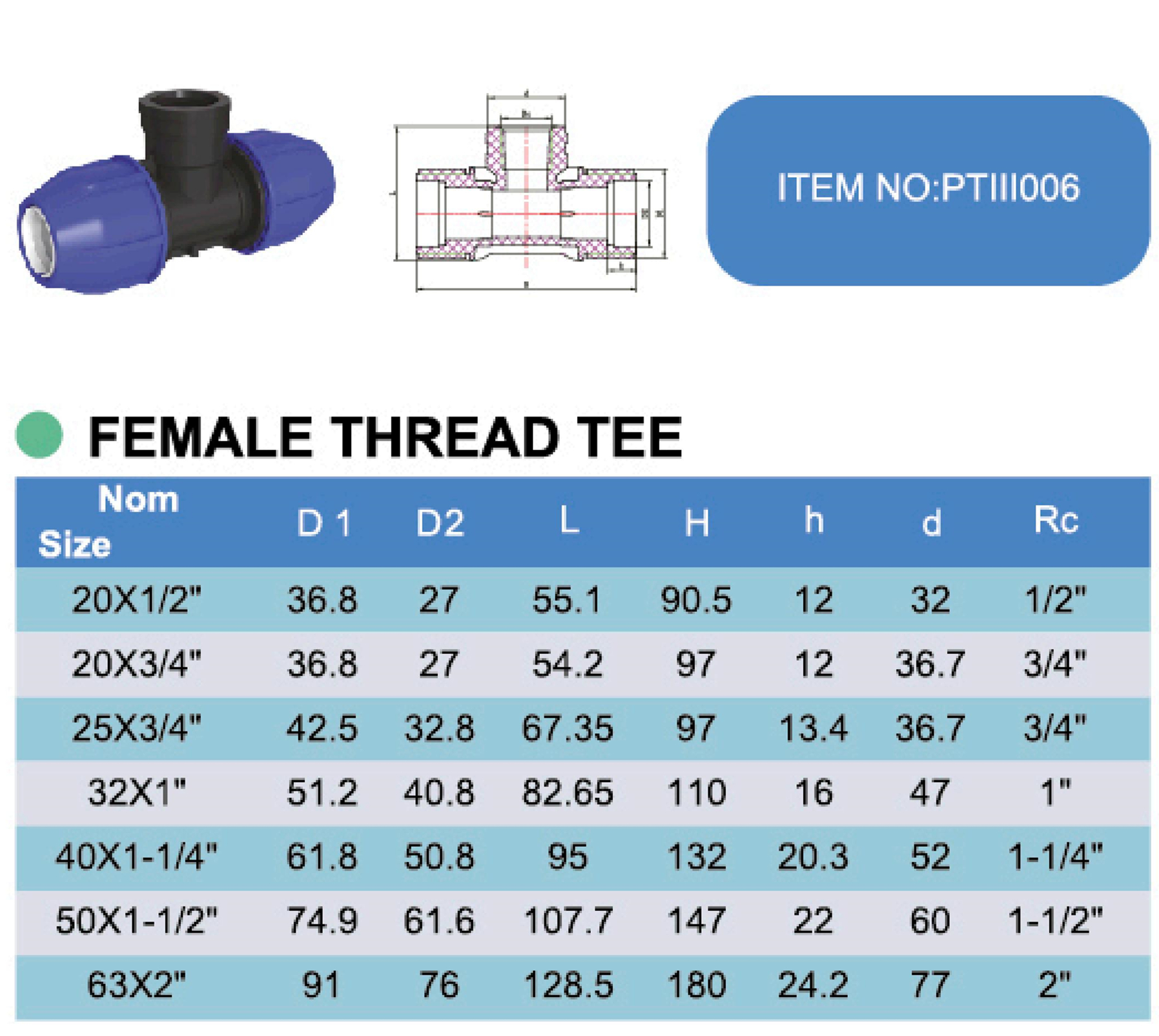

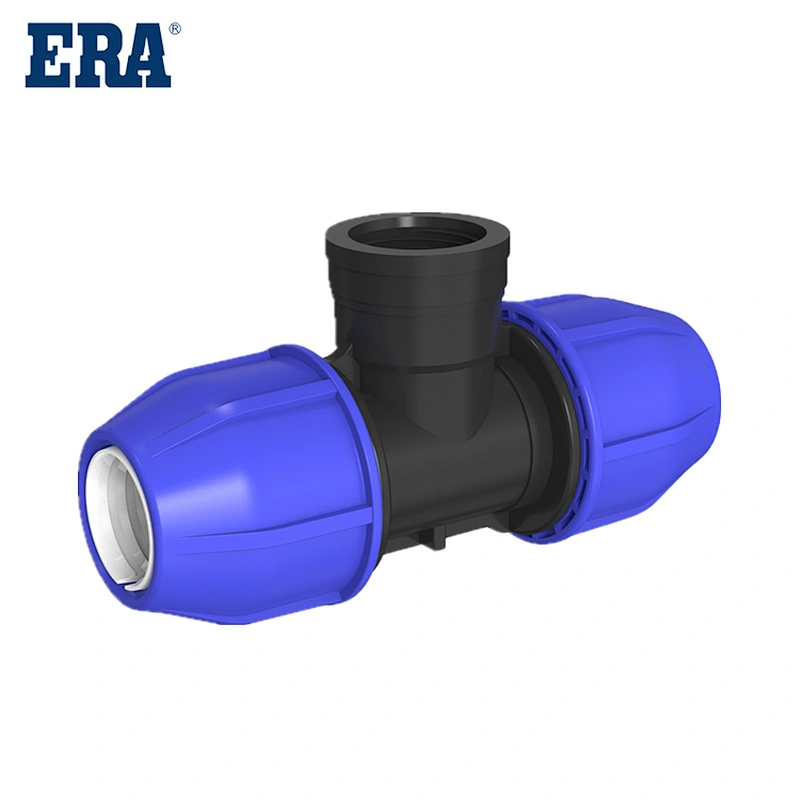

ERA Piping Systems,III PP Compression Fitting , PP Compression Female Thread  Tee , PTIII006 , WRAS

Specification：
Moreover, our PP Compression Fitting has an optimum sealing which works under all the conditions.
With an adequate combination of these fittings it is possible to design and pressure piping application of fluide with PE pipes
Referenced Standards: EN ISO1587 ; AS/NZS4129
You should slide the nut on the pipe and after that place the compression ring. Next, all that is left is to slide the pipe directly into the fitting and make sure that the nut is tightened as required.
Fields of application：
Piping networks for water treatment systems.
Piping networks for irrigation of gardening or farming.
Piping networks for underground water supply system of living areas or factories



Main Products：

1. No smell, tasteless, non-toxic. Is one of the lightest resins commonly used;

2. Excellent mechanical properties, including tensile strength, compressive strength and hardness, outstanding rigidity and bending fatigue resistance, the movable hinge made by PP can withstand more than 7×107 times of folding and bending without damage, low temperature impact strength is poor. The tensile strength of PP is generally 21-39 mpa; Bending strength 42-56 mpa, compression strength 39-56 mpa, elongation at break 200% ~ 400%, notched impact strength 2.2-5 kJ/m2, low temperature notched impact strength 1-2 kJ/m2. Rockwell hardness R95~105;

3. Good heat resistance, continuous use temperature can reach 110-120℃;

4. Good chemical stability, except for strong oxidant, and most chemicals do not react; At room temperature solvent is not % 20% can dissolve PP, only some halogenated compounds, aromatics and high boiling point aliphatic hydrocarbons can make it swelling, water resistance is particularly good;

5. Excellent electrical performance, good resistance to high frequency electrical insulation parts, also has good electrical insulation in wet environment;
