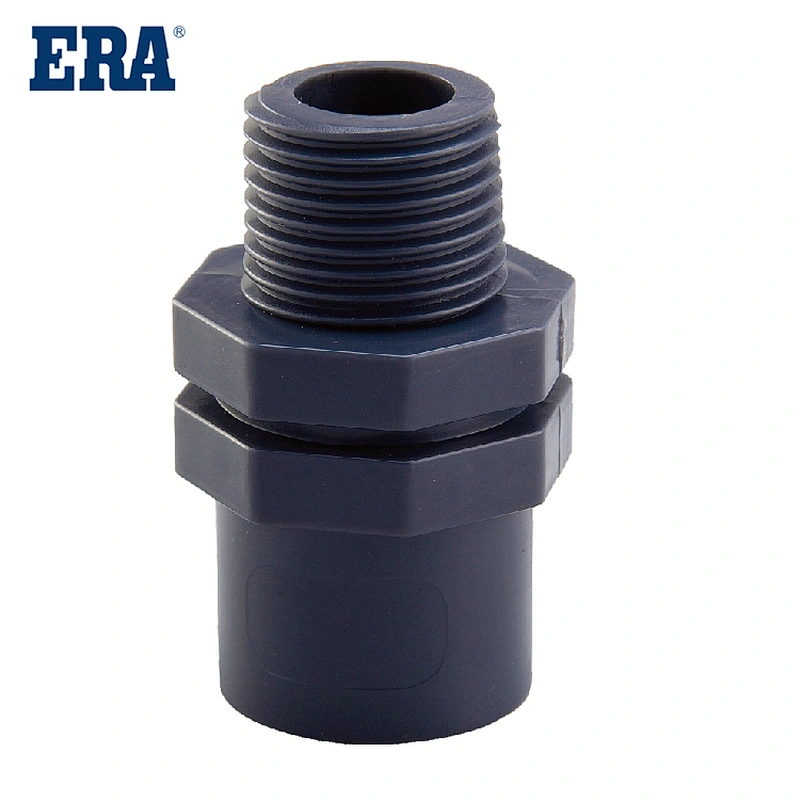

ERA Piping Systems, PVC Pipe Fitting Male Adaptor ,PVC Male Adaptor III , PN16(DIN8063) Socket, DVGW
Scope：
Water mains and services buried in the ground.
Conveyance of water above ground for both outside and inside buildings.
Buried and above ground drainage and sewerage under pressure.
| Model Number | USM002 | Material | PVC |

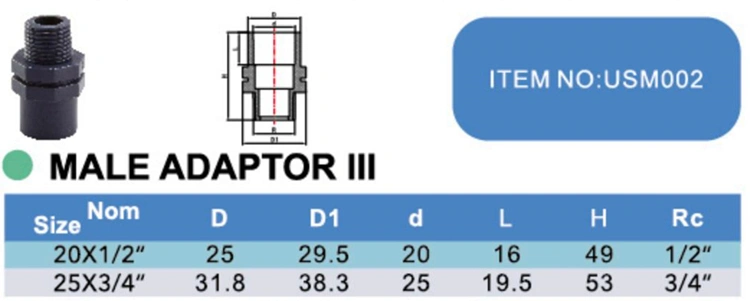

| Description | MALE ADAPTOR III | Size | 20*1/2''-25*3/4'' |
| Standard | DIN8063 | Color | BLUE GREY WHITE |
| Working Pressure | PN16 ,16Bar, 1.6Mpa | Temperature | Max 60°C / 140°F |
| Connection | Socket | Certificate | CE DVGW |
ISO 1452-3:2009 specifies the characteristics of fittings made from unplasticized poly(vinyl chloride) (PVC U) for piping systems intended for water supply and for buried and above ground drainage and sewerage under pressure. It also specifies the test parameters for the test methods referred to.
Pipe and fittings are applicable to PVC U fittings and to joints with components of PVC U, other plastics and non-plastics materials intended to be used for conveyance of water above ground for both outside and inside buildings.
This part of ISO 1452 covers a range of fitting sizes and pressure classes and gives requirements concerning colors.
Main Products：
1. The surface hardness and tensile strength of the pipe are excellent, and the pipeline safety factor is high.
2. It has good aging resistance and its normal service life can reach more than 50 years.
3. The pipeline has excellent corrosion resistance to inorganic acids, alkalis, and salts, and is suitable for industrial sewage discharge and transportation.
4. The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to be blocked, and the maintenance workload is small.
5. The material has a high oxygen index and is self-extinguishing.
6. The linear expansion coefficient of the pipeline is small, 0.07mm/℃, and the deformation affected by temperature is small. The thermal conductivity and elastic modulus are small, and compared with cast iron drainage pipes, they have excellent freezing resistance.
7. Bonding can be used to connect pipes and pipe fittings. The construction method is simple, the operation is convenient, and the installation efficiency is high.
8. Good water tightness: PVC-U pipes have good water tightness regardless of whether they are connected by bonding or rubber rings.
