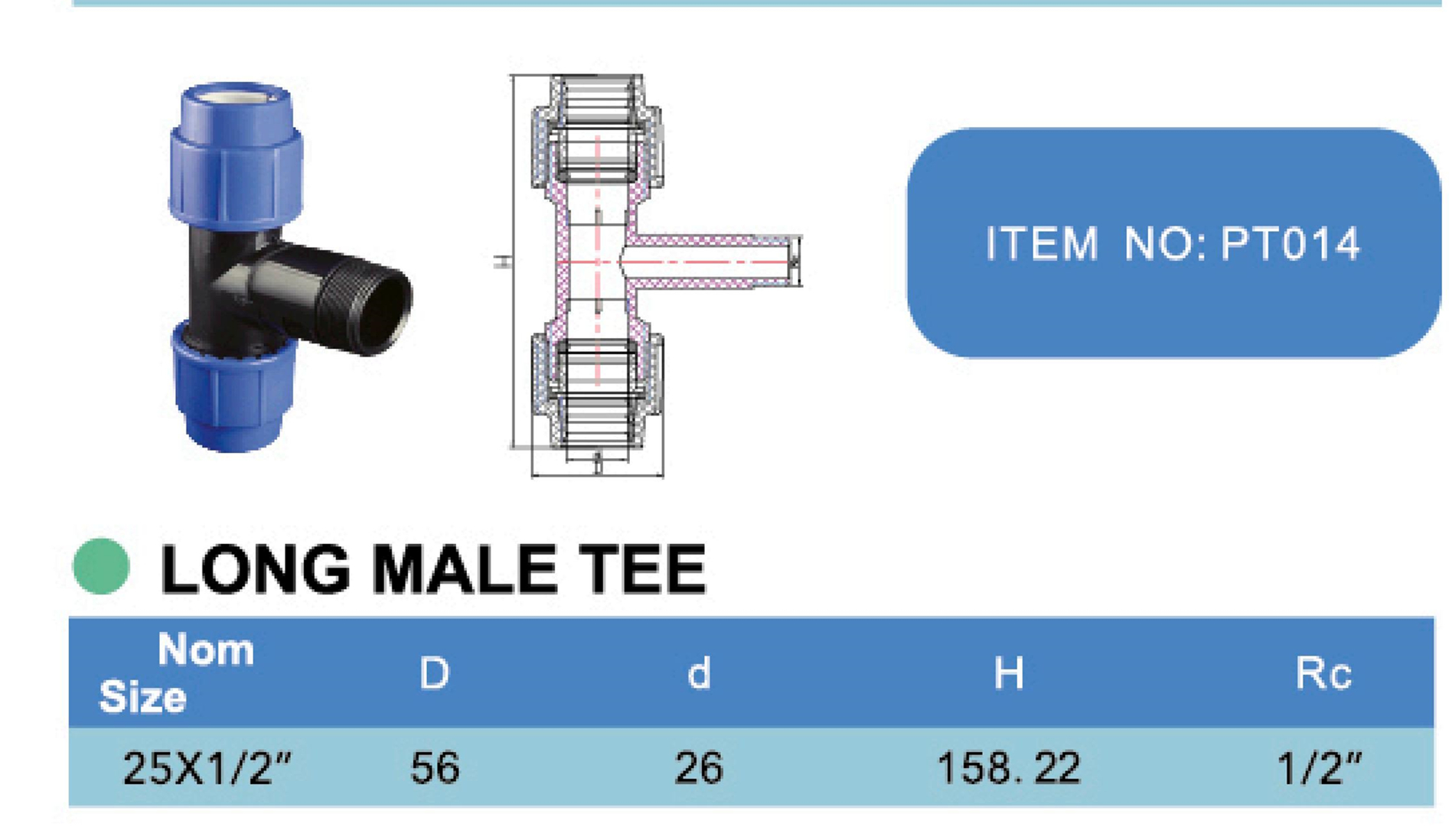

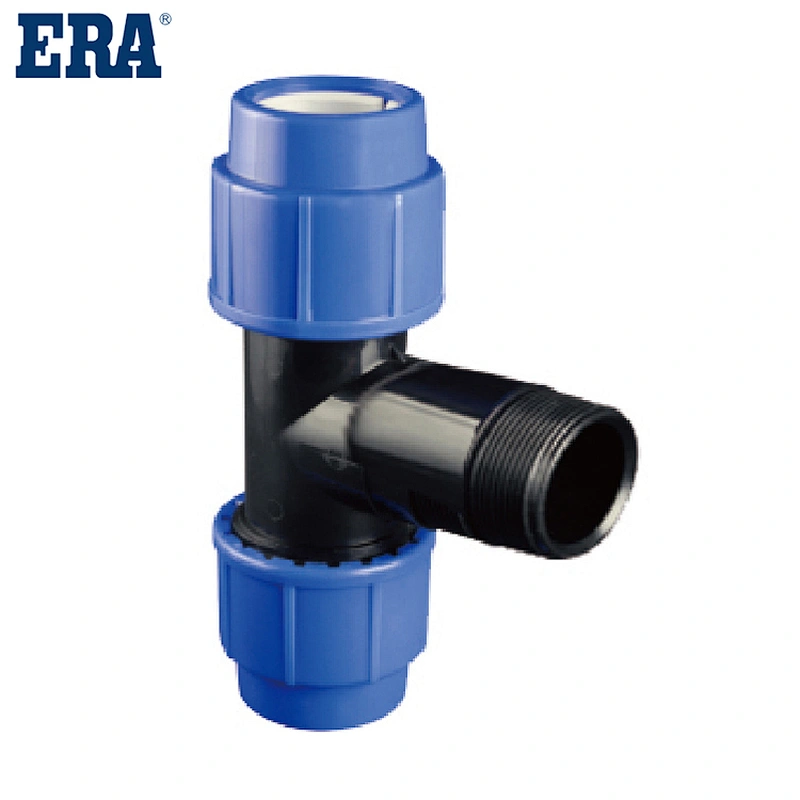

ERA Piping Systems, PP Compression Fitting Valves & Filters , PP Compression Long Male Tee , PT014  , WRAS

Material：PP
Size range：25*1/2''
Working Pressure：PN16
Color：Black, Light blue, Dark bule
Easy installation.

ERA PN16 PP Compression Reducing tee Plastic Fitting
PP compression fittings
ERA Mechanical Compression Fitting is a fitting that connect piping elements which require physical force to develop a seal or
produce alignment. There are several materials of compression fittings, such as: Steel, Brass, Plastic. The most plastic material
used is PP, there are also PE or PVC compression fittings.
PP compression fittings are widely used in water supply and irrigation. ERA mechanical fittings are made by high quality PP
material with UV protection, both material and fittings are approved use with drinking water. The threaded version is BSP.

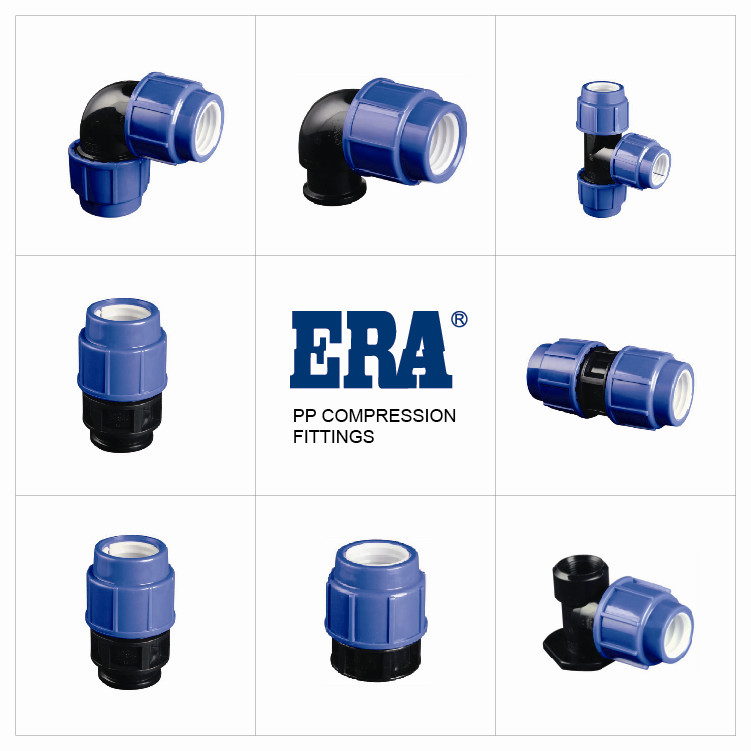

Main Products：

Performance of PP：

PP is a crystalline polymer, commonly used plastic PP is the lightest, density is only 0.91g/cm3 (smaller than water). Among general plastics, PP has the best heat resistance, and its thermal deformation temperature is 80-100℃, which can be boiled in boiling water. PP has good stress cracking resistance and high bending fatigue life, commonly known as"100 fold glue".

The comprehensive performance of PP is better than PE material. PP products light weight, good toughness, good chemical resistance. The disadvantages of PP: low dimensional accuracy, insufficient rigidity, poor weather resistance, easy to produce"copper damage", it has a shrinkage phenomenon, after stripping, easy aging, brittle, easy deformation. PP has been the main raw material for manufacturing fibers because of its coloring ability, abrasion resistance, chemical resistance, and favorable economic conditions.

PP is a kind of semi-crystalline material. It is harder than PE and has a higher melting point. Because homopolymer PP is very brittle when the temperature is above 0℃, many commercial PP materials are random copolymers with 1~4% ethylene or clip-on copolymers with higher ratio of ethylene content. Copolymer PP material has lower thermal distortion temperature (100℃), low transparency, low gloss, low rigidity, but has stronger impact strength. The strength of PP increases with increasing ethylene content.

The Vica softening temperature of PP was 150℃. Due to its high crystallinity, the material has good surface stiffness and scratch resistance.
